OPERATING THE ENGINE
3-9

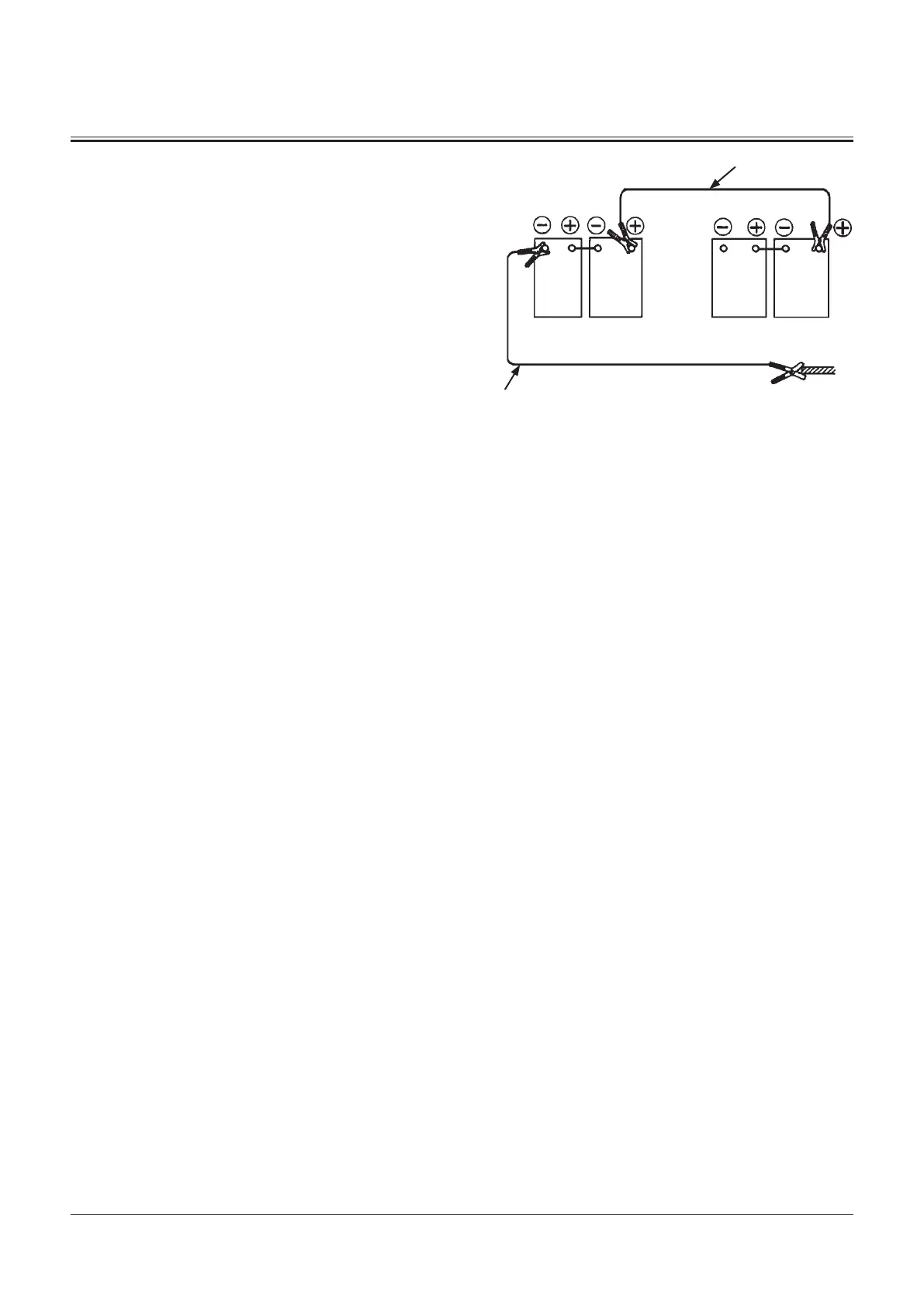

Disconnecting the booster batteries
1. Disconnect black negative (–) cable (2) from the machine
frame first.
2. Disconnect the other end of black negative (–) cable (2)
from the booster batteries.
3. Disconnect red positive (+) cable (1) from the booster
batteries.
4. Disconnect red positive (+) cable (1) from the machine
batteries.
1
(Black)
Booster Batteries
Machine Batteries
(Red)
To Upperstructure of the Machine
2
Disconnecting the Booster Batteries
M104-03-002
