TRANSPORTING
Transporting
CAUTION: Fasten chains or cables to the machine
frame. Do not place chains or cables over or against
the hydraulic lines or hoses.
1. Place blocks in front of and behind the tracks.
2. Fasten each corner of the machine and front attachment
to the trailer with a chain or cable.
PRECAUTIONS FOR TRANSPORTING MACHINES
WITH PAD CRAWLER SHOES

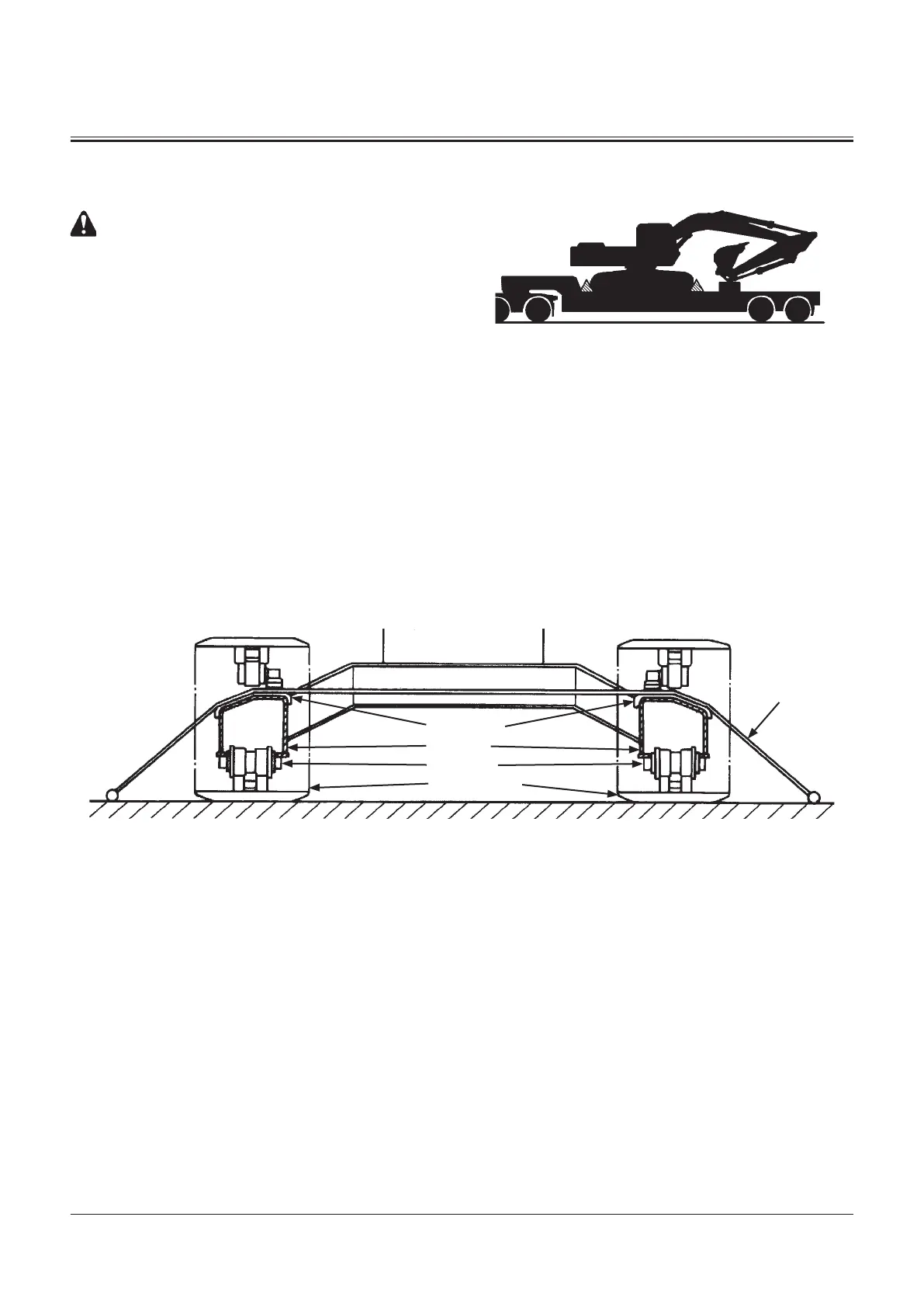

When transporting a machine with pad crawler shoes, be sure
to fasten the right and left track frames securely to the flatbed
with wire ropes and soft protectors, as shown. Do not allow
wire ropes to come into direct contact with pad crawler shoes.
M102-06-004
Flatbed
Soft Protector
Wire Rope
Side Frame
Lower Roller
Pad Crawler Shoe
To Next Page
