About PWS1711/1760

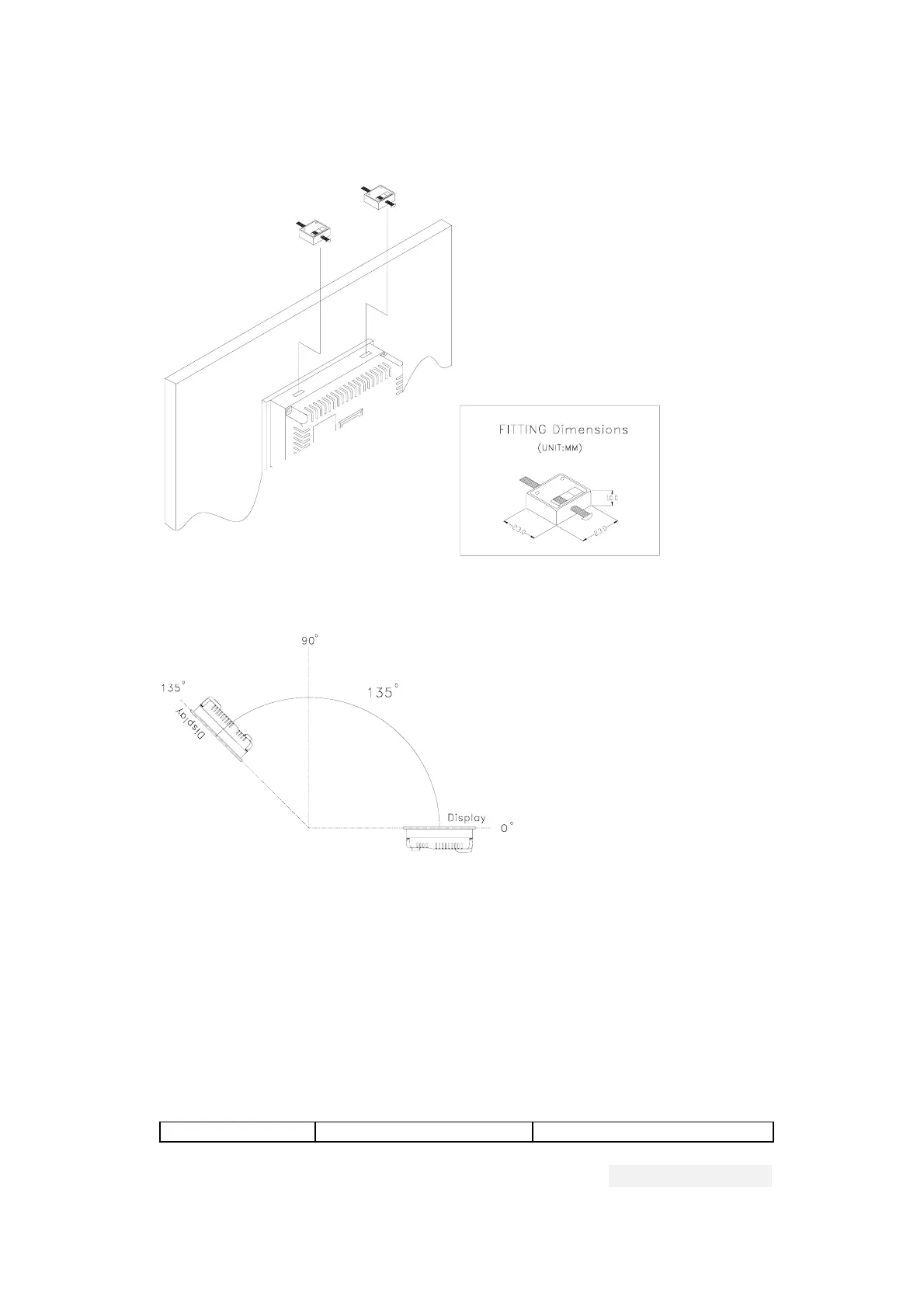

The unit shall be installed within the angle of 0 to
135 degrees as shown below.
G.3.2 Torque Specifications
After placing the Workstation in the cutout, you should
tighten each nut to 0.07 newton-meters (10 inch/pounds) of
torque. If you don't have a torque wrench, then try to
tighten the nuts to compress the gasket to about 50% of its
original thickness.
G.4. Power Connector
The three-position power connector accepts 24VDC only. The
unit's power consumption is shown in the following:
Item / Model 1711-STN 1760-CTN
Hitech Electronics Corp.
G-7
