Supplement B
PLC Workstation
directions
Shock Endurance 10g, 11ms three times in each
direction of X, Y, and Z axes
RF Emissions CISPR 22, Class A
Electrostatic Discharge IEC 801-2 Level 3
RF Susceptibility IEC 801-3 Level 3
High Frequency
Transients
IEC 801-4 Level 3
Weight 0.55 Kg
Cooling Natural cooling
B.3 Dimensions

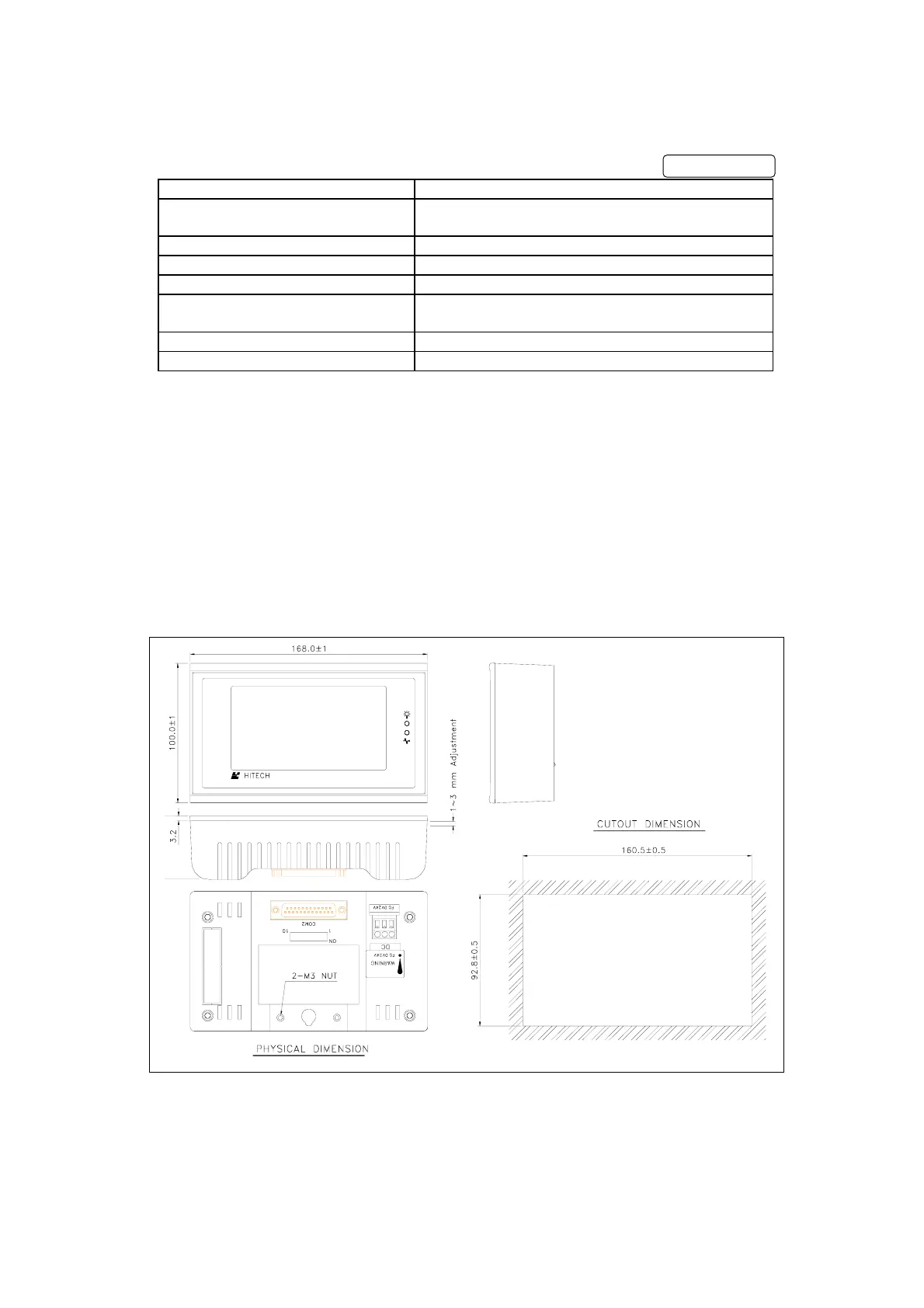

This section illustrates the dimensions of the 700T as well
as the cutout dimensions. The unit of dimensions is
millimeter. You should allow 10 cm (4") of clearance behind
the workstation for cable connectors and 5 cm (2") above and
below for airflow. Method of installation: Unscrew the back
cover of PWS, Mount the PWS to the preserved hole from the
front side. Attach the back cover of PWS from behind, and
fasten the four screws with a screwdriver. Don't tighten the
screws with too much force or it may cause a damage of the
panel.
