Under no circumstances should the connections to the terminals L, M, M be changed!
CHANGING THE MOTOR SPEEDS OF ROTATION
The fan coil motor has 6 speed settings, 3 of which are connected in the factory (red, blue and black wires
connected to the motor auto-transformer). To use other speeds than those wired up in the factory, the red
(minimum), blue (medium) and black (maximum) wires may be connected onto 3 of the 6 numbered

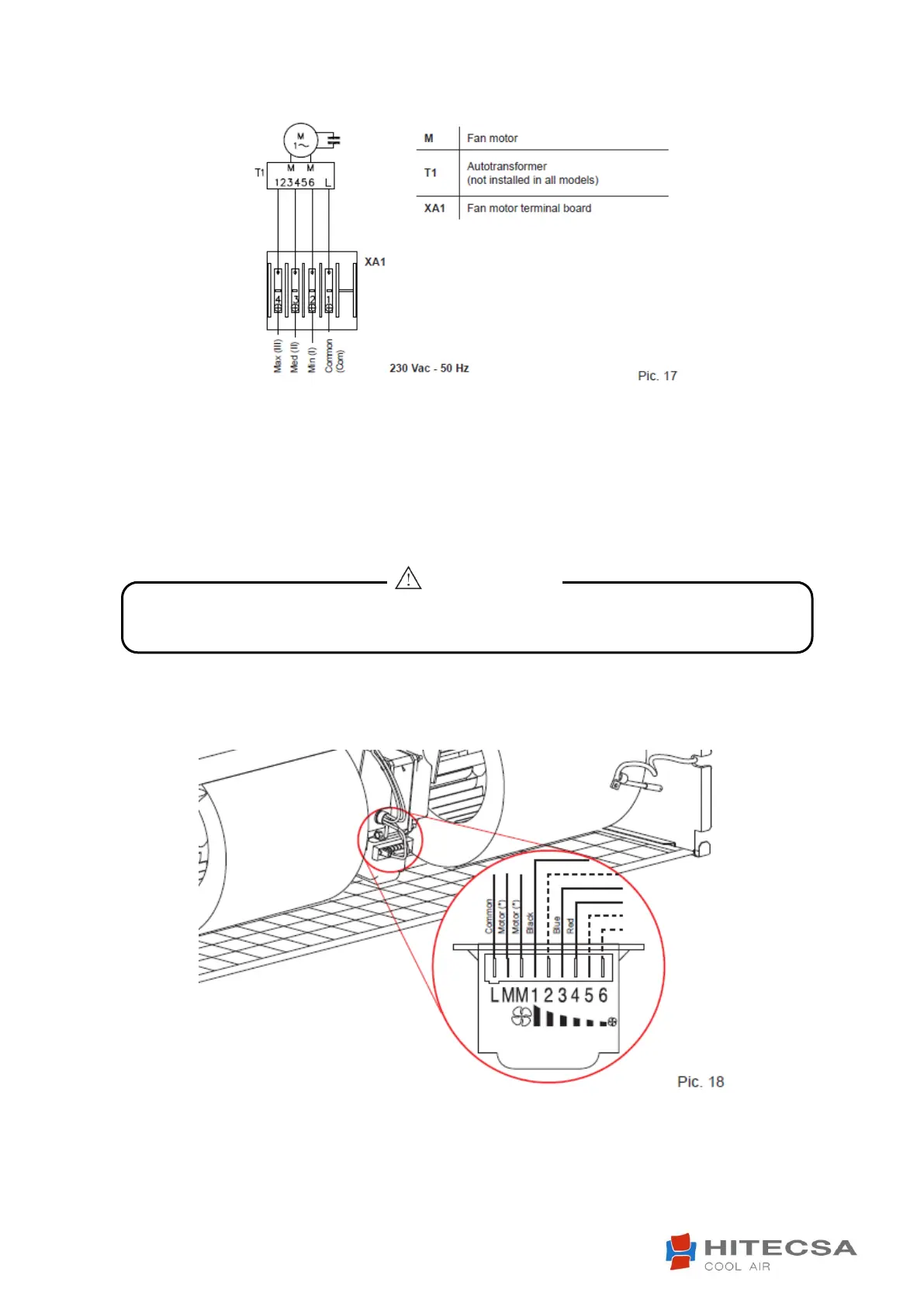

terminals (1…6), taking into account that the speeds follow a sequence as shown in Pic. 18.
