To replace the housing.

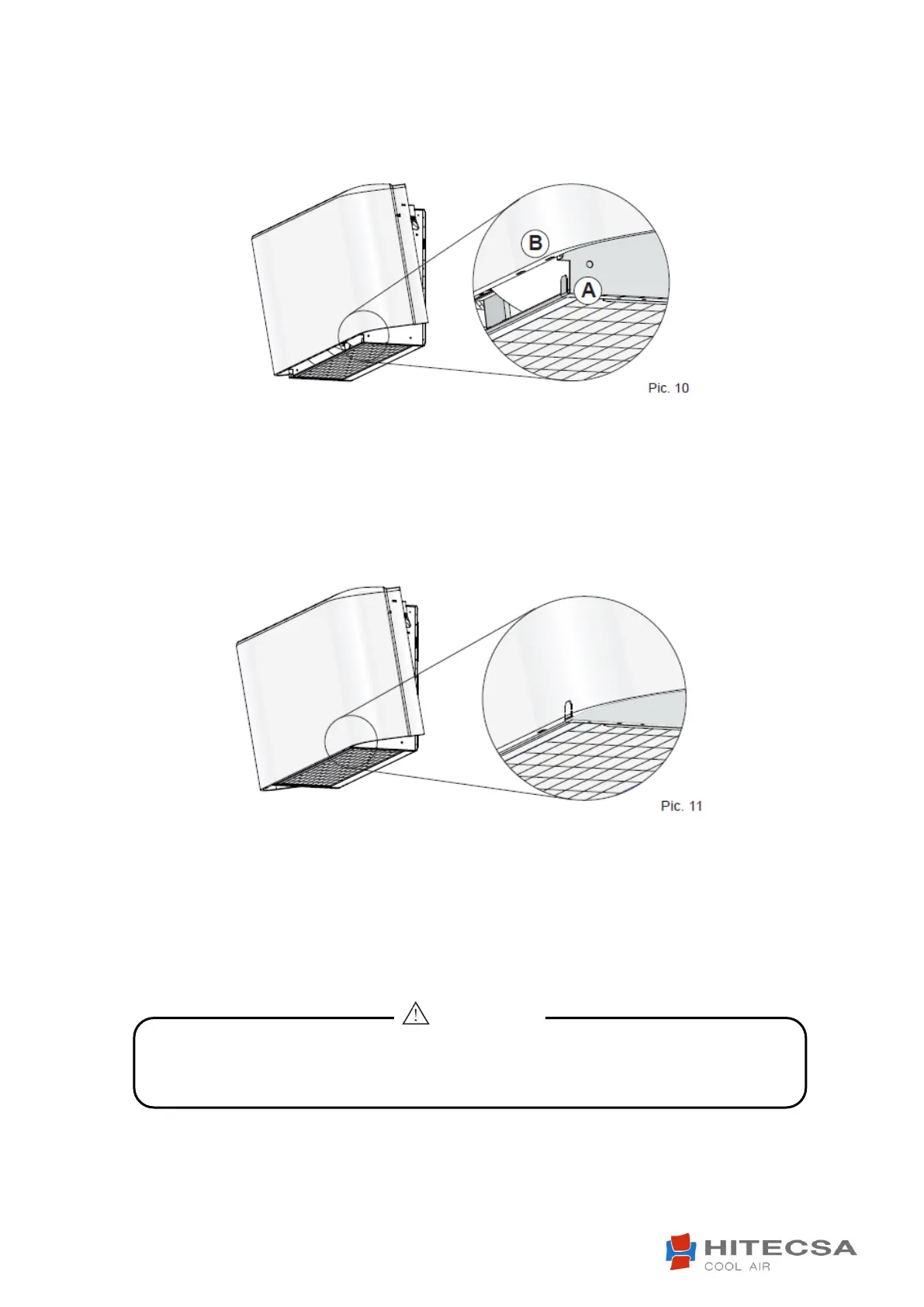

Take the cabinet from the packing box. Standing in front of the fancoil, lift cabinet, holding it by the sides,
and tilt it (Pic. 10).
Insert the lugs A into the relative slots B (Pic.11). Pivot the cabinet on its base until it is aligned with the
wall. Raise the flaps covering the control panel and water connections and tighten the two fixing screws
(Pic.5).
Fan coil units have the following operating limits:
- it can't be installed in areas with anomalous heat and humidity conditions
- it can't be installed outdoors
- it can't be installed in explosive environments
- it can't be installed in a corrosive atmosphere
WATER CONNECTIONS
CONNECTION TO THE WATER MAINS
Always use a wrench and nose key for connection of the coil
to the pipes (Pic. 12). If the solenoid valve is installed, suitably insulate the valve body with
insulating material (Pic. 13).
