HITROL HLC-901 Series User Manual

HTM-930 & HLC-901 Series
HITROL CO., LTD. 6
■ HLC-901 Series
<HLC-901P>
<HLC-901L>
Wrong wiring can affect damage of the product.
The power and output lines shall have separate cables.

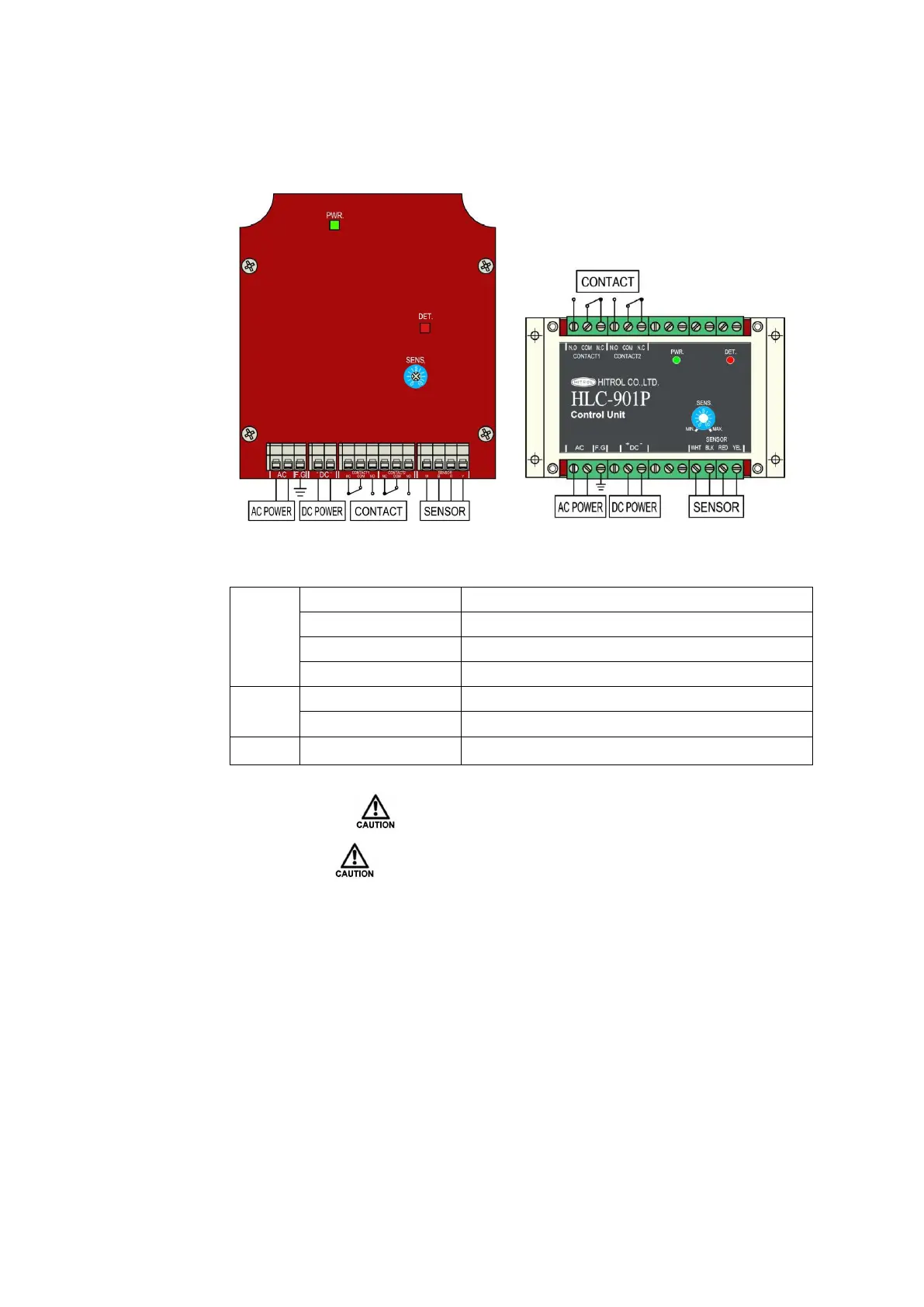

Wiring &
Setting
Terminal
Block
AC POWER
AC 90~240V Input
DC POWER
DC+24V Input
CONTACT
AC 250V, 5A / DC 30V, 5A Output
SENSOR
Sensor Input
LED
PWR. (POWER)
Green LED is On, when power is applied.
DET. (DETECTION)
Red LED is On, when medium is detected.
Dial
SENS. (SENSITIVITY)
Adjustment of sensitivity.

HITROL HLC-901 Series Specifications

General

Brand	HITROL
Model	HLC-901 Series
Category	Switch
Language	English
