HLT-1110 Series
HITROL CO., LTD. 12
1) Make sure that the pipes and bottom anchor are ready.
2) It doesn’t matter if you install the pipes and Sheave elbow first.
3) The inside of the tank should be empty and there should be no interference in instrument installation.
4) The nozzle of the tank should be installed in accordance with the connections and specifications of our
instruments and should not pose any risk of internal operation.
5) Install the gauge head in a position that is easily visible. (e.g. approximately 1500mm from the ground.)
6) There should be no fluid leaks.
7) The environment should be in place to ensure that installation and adjustment can be performed safely.
8) If used in toxic gases, the U-Seal pot should be used as there is a concern of product damage.
2.1 Guide wire Installation
1) Open the cover of the top anchor at the top of the tank.
2) Insert the guide wire from the top anchor and tighten it with a nut① and nut② to secure it to
the top anchor, giving a margin of at the end of the guide wire approximately 100mm. [Refer
to Figure.1-a]
3) Insert the guide wire into the guide ring of the float at the bottom of the tank and secure the
guide wire to the bottom anchor using bolts and nuts. [Refer to Figure.1-b]
4) Cut and bend the end of the guide wire to prevent the float being caught.
5) Tighten Nut③ to adjust the tension of the guide wire. [Refer to Figure.1-c]

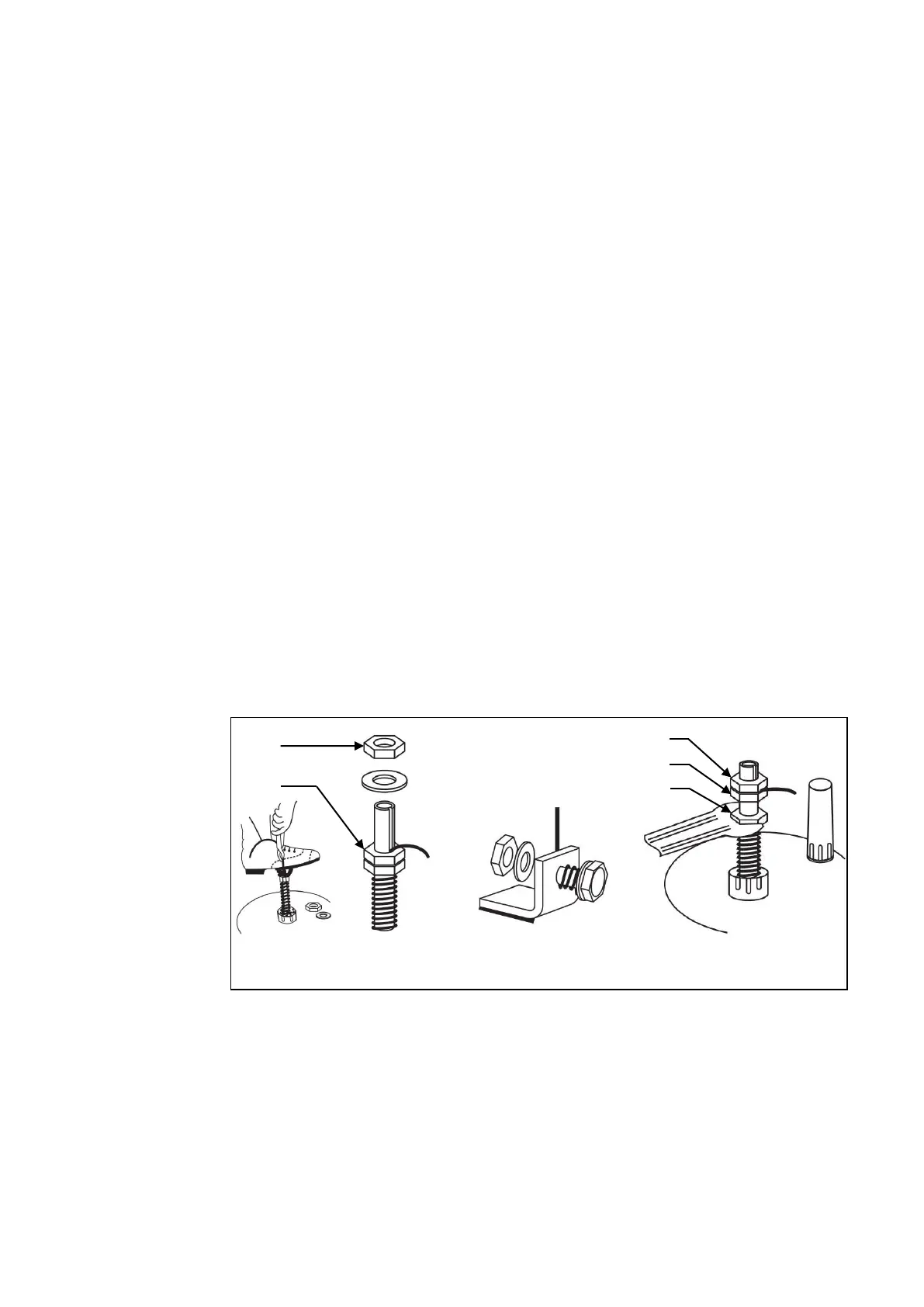

[Figure. 1] Guide Wire Installation
