2.2 Measuring Tape Installation
2.2.1 Installation Sequence of Measuring Tape (Head Part)
1) Insert the measuring tape into the sheave elbow.

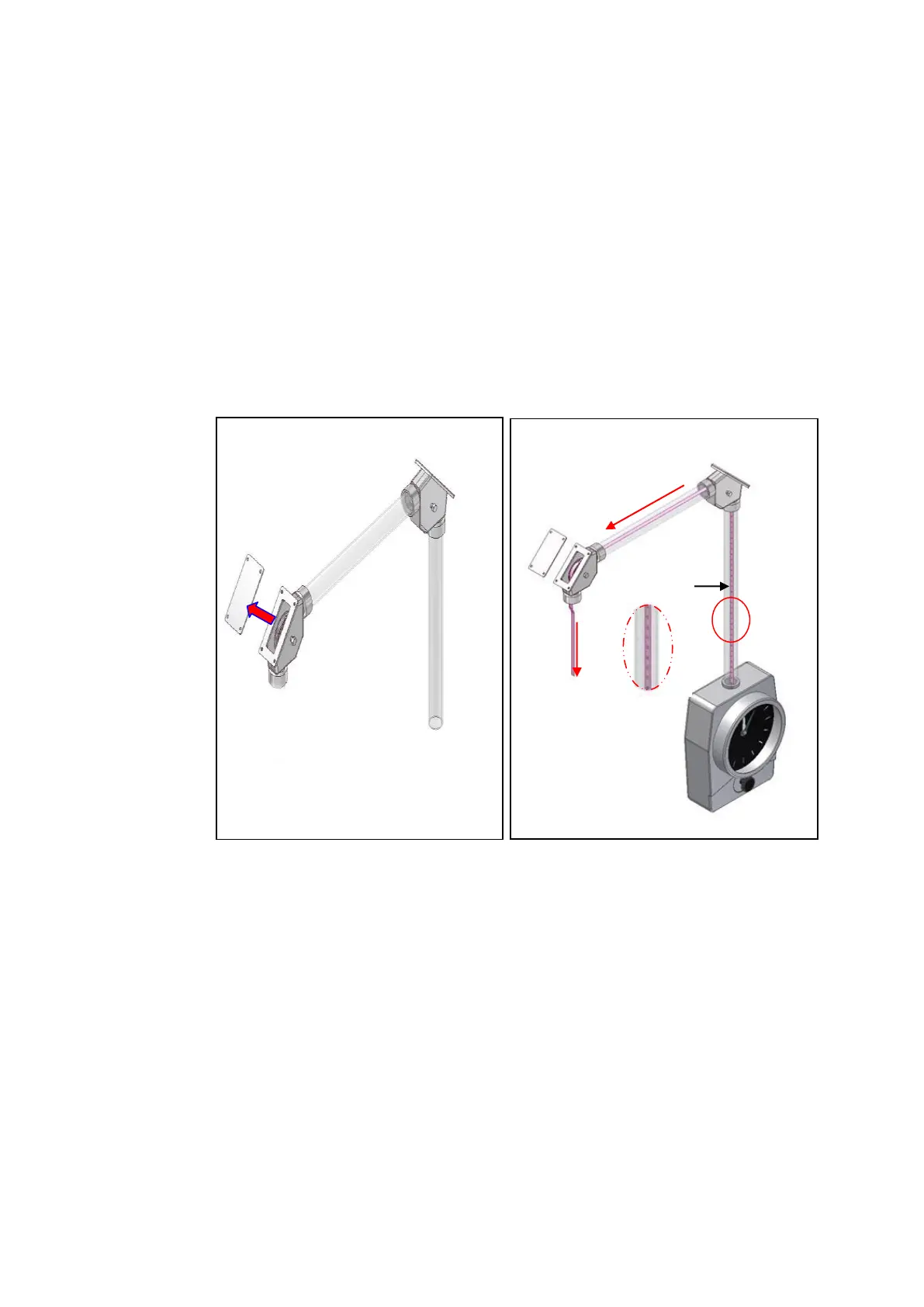

① Uncover both Elbow-A and Elbow-B. [Refer to Figure.2]
▶ At this point, elbows and pipes should be installed first.
② Pass the measuring tape in the direction A at Elbow-B. [Refer to Figure.3]
▶ Install the measuring tape with holes in the direction of the gauge head (Outside the tank).
▶ Be sure that the hole processing boundary marked on the measuring tape is located
between Elbow-A and B.
