2) Install the measuring tape to the gauge head.
① Open the back cover of the head.
② Pull the measuring tape out of the upper elbow through the hole in the connection
section above the gauge head downwards.
③ Align the measuring tape well between the sprocket groove and the tape guide.
▶ Make sure that not to allow the tape to deviate from the sprocket.
▶ At this point, the sprocket and tape guide intervals are adjusted by means of a screw. [Refer to Figure.4]
④ Bolt the tape to the tape locking screw on the tape drum. [Refer to Figure.5]
▶ However, the part without holes of the tape should not be allowed into the head.
▶ Refer to [Table. 1] for measuring tape supply length.

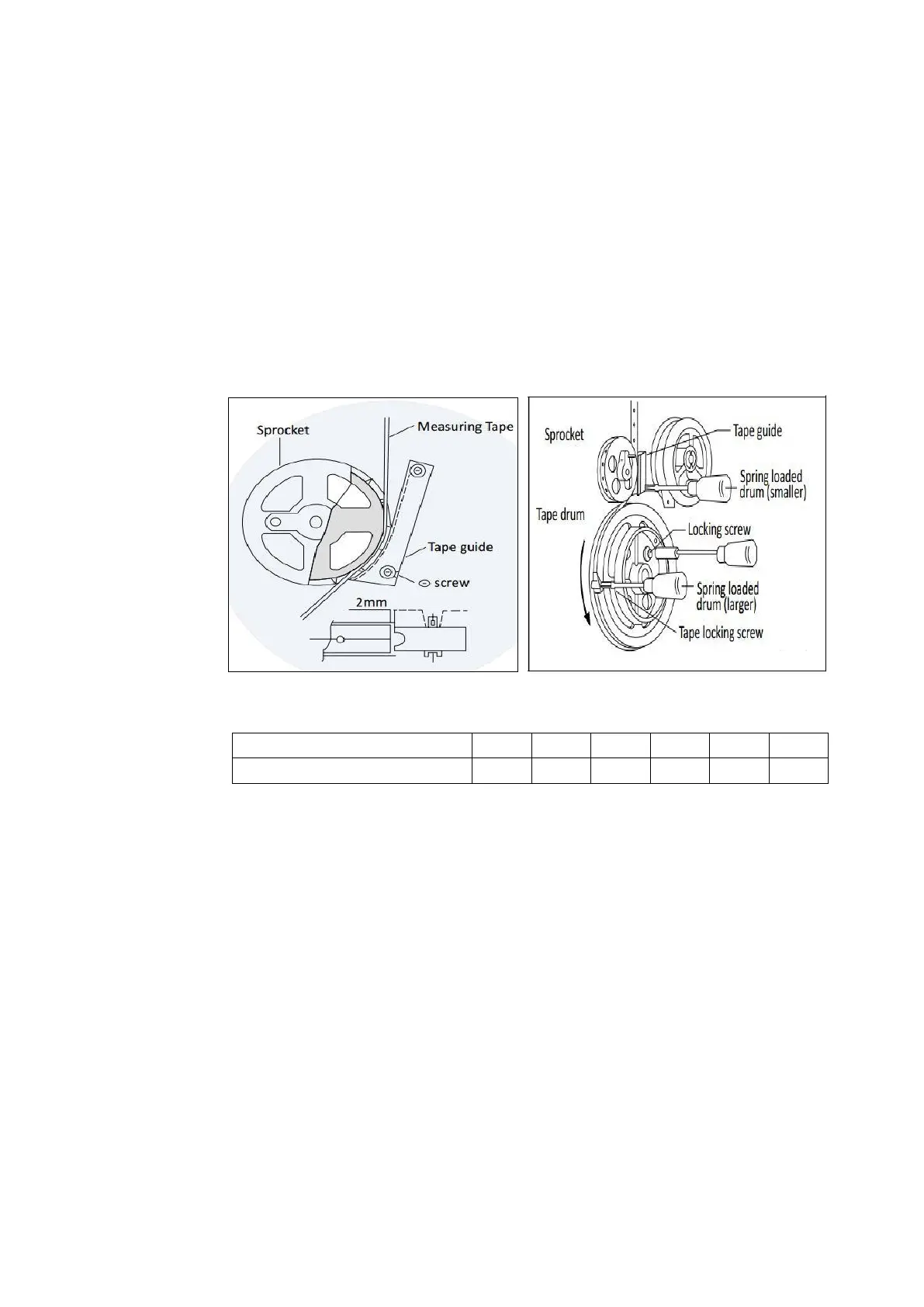

[Figure. 4] Measuring Tape Installation (3)
[Figure. 5] Measuring Tape Installation (4)
[Table. 1] Measuring Tape Supply Length.
▶ The supply length of the measuring tape is twice the length of the scale range, plus the extra (6m).
e.g. When the scale range is 10m, the length of the measuring tape supply length is 26m.
▶ Drill holes so that the scale range + 6m can be wound into the sprocket.
e.g. When the scale range is 10m, the length of the part of the holes of the measuring tape is 16m.
▶ Depending on the on-site scale range, the supplied measuring tape can only cut the clearance
length in the area where the holes are not machined.
▶ The measuring tape (with holes) connected to the head should never be cut.
