2.2.2 Installation Sequence of Measuring Tape (Float Part)

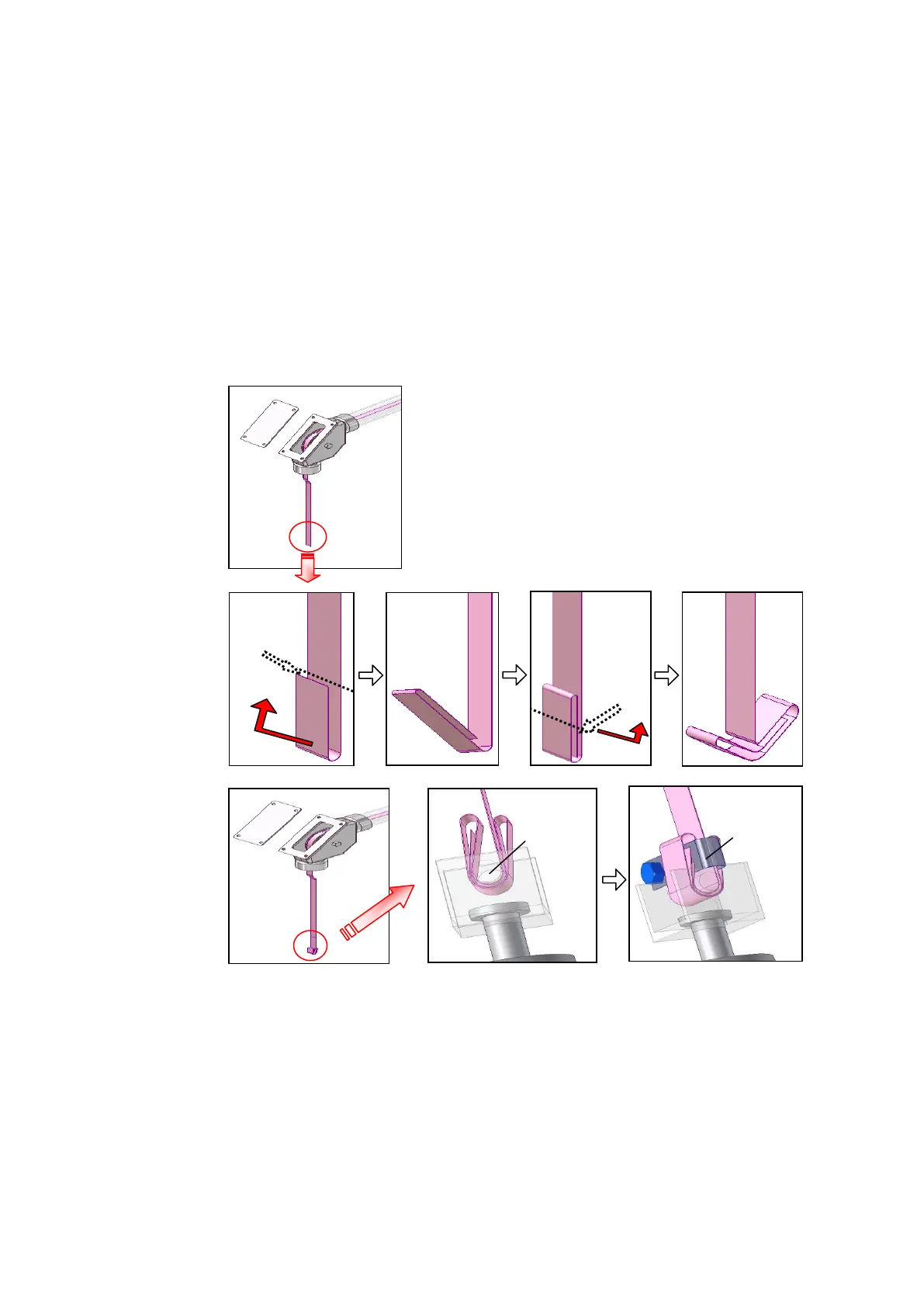

1) Fold the end of the measuring tape on side Elbow-A in order ① to ⑥ and connect it to the
float. [Refer to Figure.6]
① Fold the end of the measuring tape about 60~70mm.
② Fold the measuring tape again.
③ Fold the center of the measuring tape.
④ Make sure that it is folded properly.
⑤ Insert the folded measuring tape into the joint shaft.
⑥ Insert the tape clamp into the measuring tape loop and secure it with a bolt and nut.
▶ At this point, use a bolt that is not longer than 10mm.
※ Measuring Tape and Float Part Installation Cautions
▶ Make sure that the tape is secured temporary from the top of the
sheave elbow to prevent it from falling out. (Fixed to the site situation).
▶ Depending on the scale range, cut the remaining tape after
installation by using a metal cutting snips.
▶ When folding the measuring tape, take care not to bend it.
