7. Installation method
7.1 Installation method of HTMF-Round Type
7.1.1 Insert the sensor bracket into the user piping line.
7.1.2 Check flow direction and fasten it with bolts and nuts.
7.1.3 Check flow direction of the sensor as shown below and insert it into the bracket.
7.1.4 Fasten the sensor with bolts and nuts same as bracket.
7.1.5 In case of separation, perform the above method in reverse order.

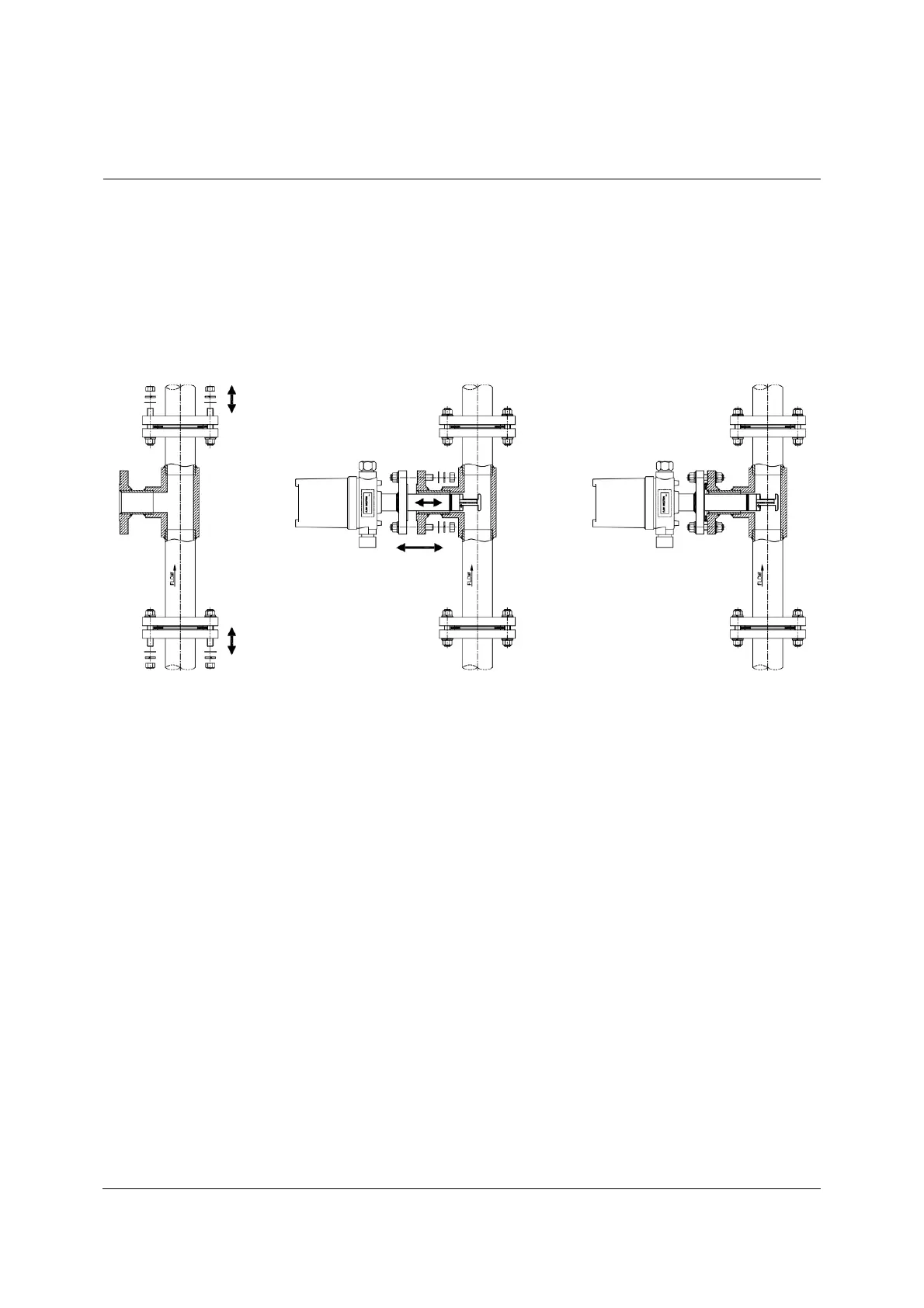

<Figure1> <Figure2> <Figure3>
