HITWAY BK15M - Page 6

(3)
11 Battery
12 Pedal
13 Sprocket
14 Chains
15 7-speed cassette
16 Flywheel
17 Seat Tube Clip
18 Seat tube
19 Tail light
20 Seat
1 Display
2 Handlebar
3 Brake lever
4 Riser
5 Headlight
6 Front fork
7 Wheel
8 Wheel reflector
9 Disc brake disc
10 Disc brake

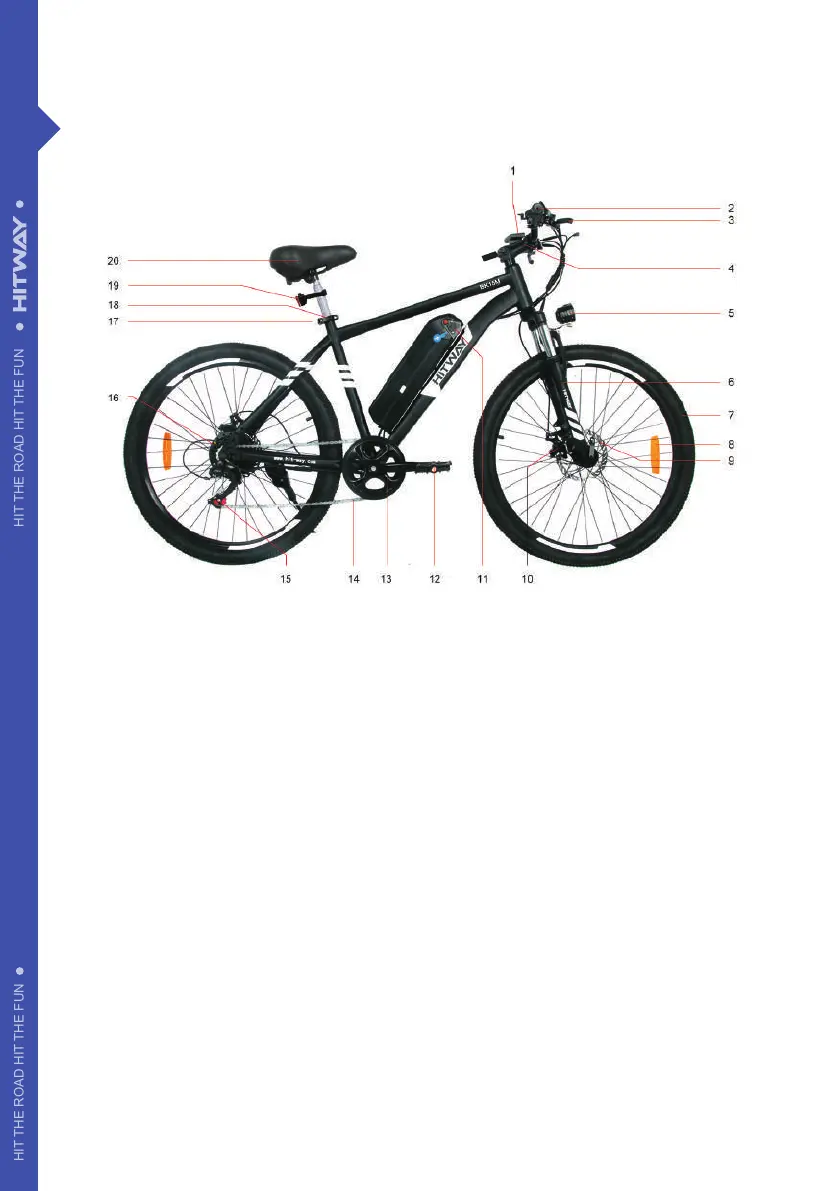

Figure 1 (Whole bike diagram)
PRODUCT FUNCTION DIAGRAM
HIT THE ROAD HIT THE FUNHIT THE ROAD HIT THE FUN
Note: The product upgrade may cause the actual product you receive to be different from
the sample in the photo, please don't worry, the specific functions are the same and will
not affect your normal use.
