HITWAY BK27M - Product Function Diagram and Overview

(3)
11 Battery
12 Pedal
13 Sprocket
14 Chains
15 7-speed cassette
16 Flywheel
17 Rear rack
18 Tail light
19 Seat post clamp
20 Seat post
21 Saddle
1 Display
2 Brake lever
3 Handlebar
4 Riser
5 Headlight
6 Front fork
7 Wheel
8 Wheel reflector
9 Disc brake disc
10 Disc brake

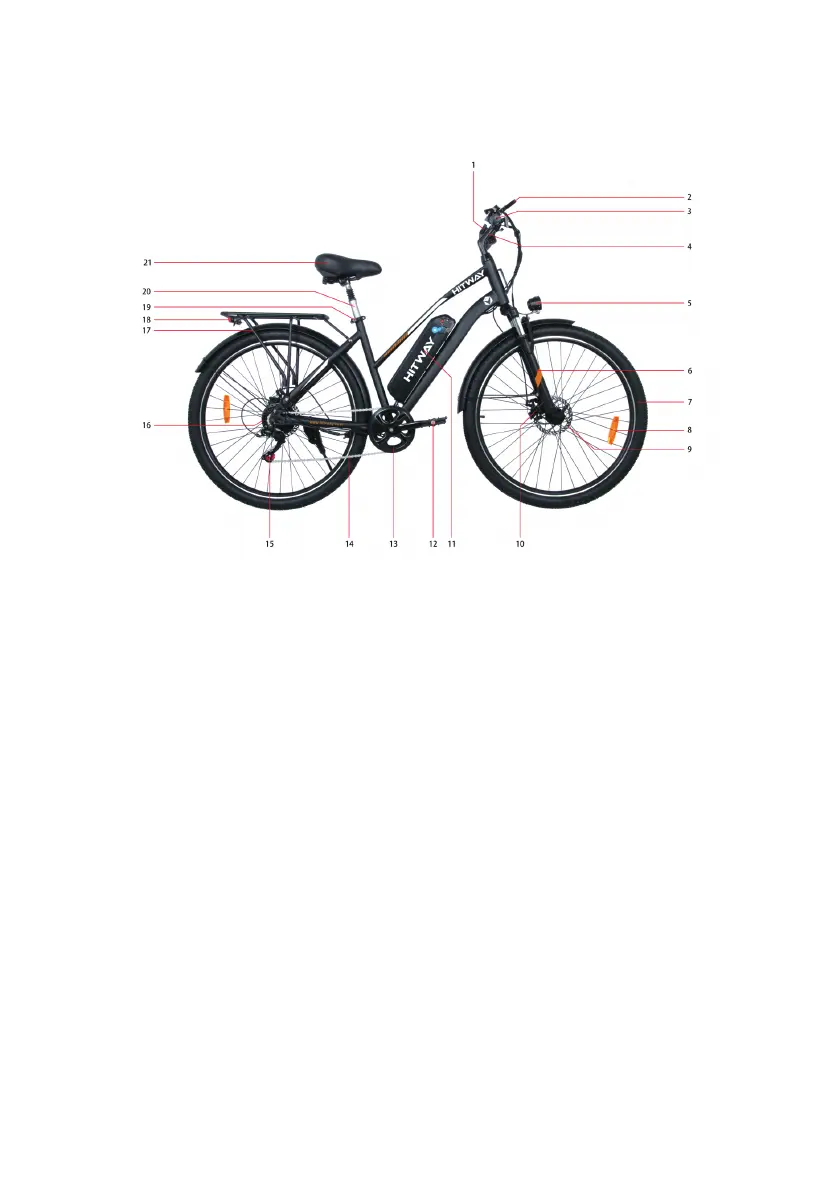

Figure 1 (Whole bike diagram)
PRODUCT FUNCTION DIAGRAM
Note: The product upgrade may cause the actual product you receive to be different from
the sample in the photo, please don't worry, the specific functions are the same and will not
affect your normal use.
