HiWeigh KPC - Connection; Load Cell Connection; Communication Connection; Communication Data Format

3
I. Technical Parameter
1.A/D Conversion: ∑-⊿
2.Input Signal Range: 0-10mv
3.A/D Resolution: 1,000,000
4.A/D Conversion Speed: 10times/second
5.Excitation Voltage: DC5V
Excitation Current: (4) 350 Ohm load cells or (8) 700 Ohm load cells
6.Display: 18 digits LCD 0.8”
7.Divisions:
1/2/5/0.1/0.2/0.5/0.01/0.02/0.05/0.001/0.002/0.005/10/20/50/100/200/500
8.Serial Output Interface: RS—232 continuous transmitting,
Baud Rate 1200 2400 4800 9600 optional
RS—485 optional
9.Printing: RS232 printing output
10.A.C Power: AC110/220V (AC/DC built-in battery 6V 4Ah)
11.Operating Temperature: 0℃~40℃
12.Storage Temperature: -25℃~55℃
13.Relative Humidity: ≦85RH
14.Exterior Size: 220mm×140mm×130mm
15.Weight: Around 2 Kg
II. Connection

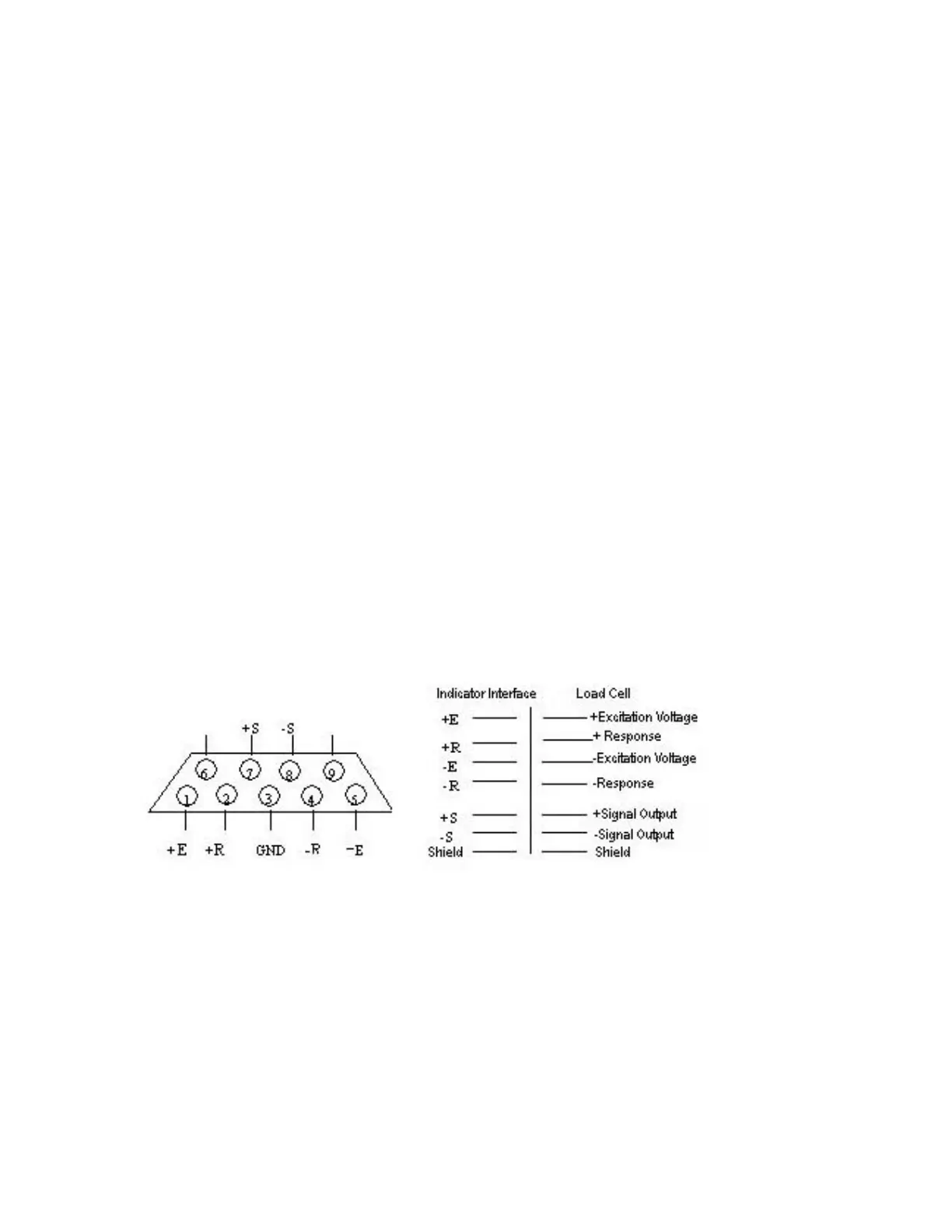

1.The load cell adopts D 9-pins socket as follows:
(Note: If using 4-wire shielded cable, short connected +E with +R, and –E with –R.)
2.Communication Connection (D-SUB-9-pins):
3
rd
pinTXD (RS-232C continuous transmitting)
5
th
pinGND
3.Communication Data Format (RS-232C continuous transmitting)
The communication address X = 0 in continuous transmitting and the format is
=,X1,X2,X3,X4,X5,X6. The transmitting X1,X2,X3,X4,X5,X6 is displaying data, and “ = ”is the list
separator.
Example: weight: 100.00kg, transmitting: = 00.001 =00.001.
4. RS-485 optional
