Hiwin LA Series - 2. LAN1 Positioning Feedback (Hall Sensor); Specification of Positioning Feedback (Hall Sensor)

A99UE13-1304
46
位置回饋規格(Hall Sensor)
18
18

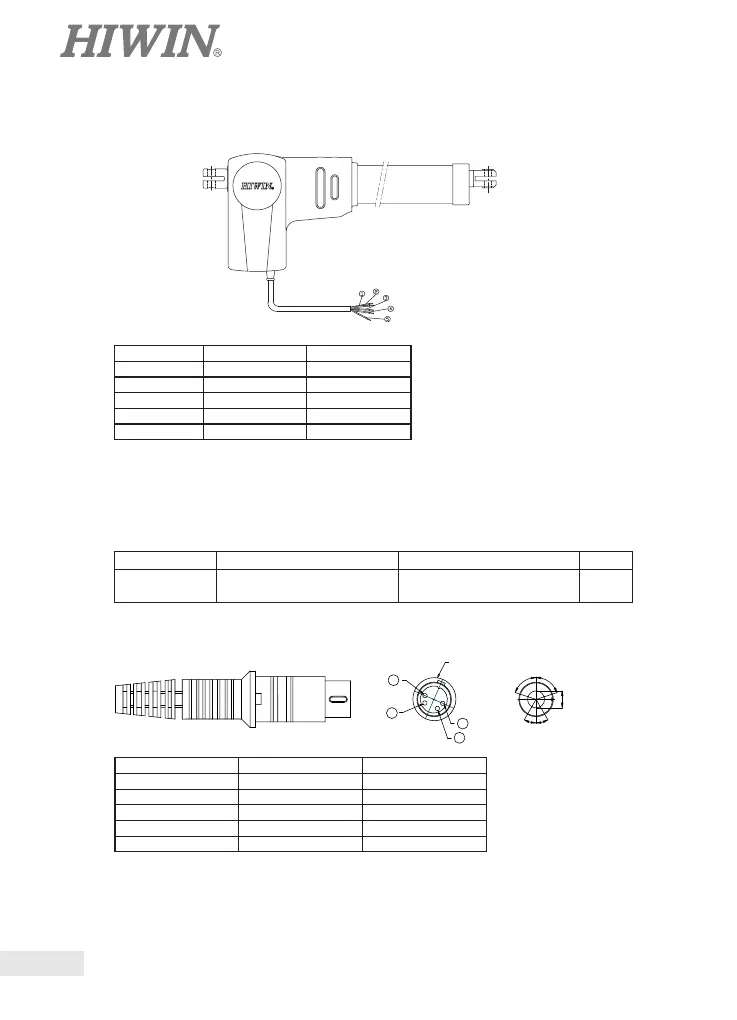

2. LAN1 Positioning Feedback (Hall Sensor)
Specication of Positioning Feedback (Hall sensor)
Supply voltage 24VDC 12DC 5VDC
Output
High level 24VDC
Low level 0.2V/10mA Sink (NPN)
High level 12VDC
Low level 0.2V/10mA Sink (NPN)
TTL
4-pin DIN Connector
4
3
1
2
SHELL
36¢X
0.7mm
36¢X
72¢X
72¢X
DIN Connector COLOR REMARK
1 YELLOW OUTPUT
2 BLACK MOTOR(+)
3 WHITE MOTOR(-)
4 RED VCC
SHELL GREEN GND
WIRING COLOR REMARK
1 BLACK (AWG18) MOTOR(+)
2 WHITE (AWG18) MOTOR(-)
3 GREEN (AWG24) GND
4 RED (AWG24) 24/12VDC
5 YELLOW (AWG24) OUTPUT
