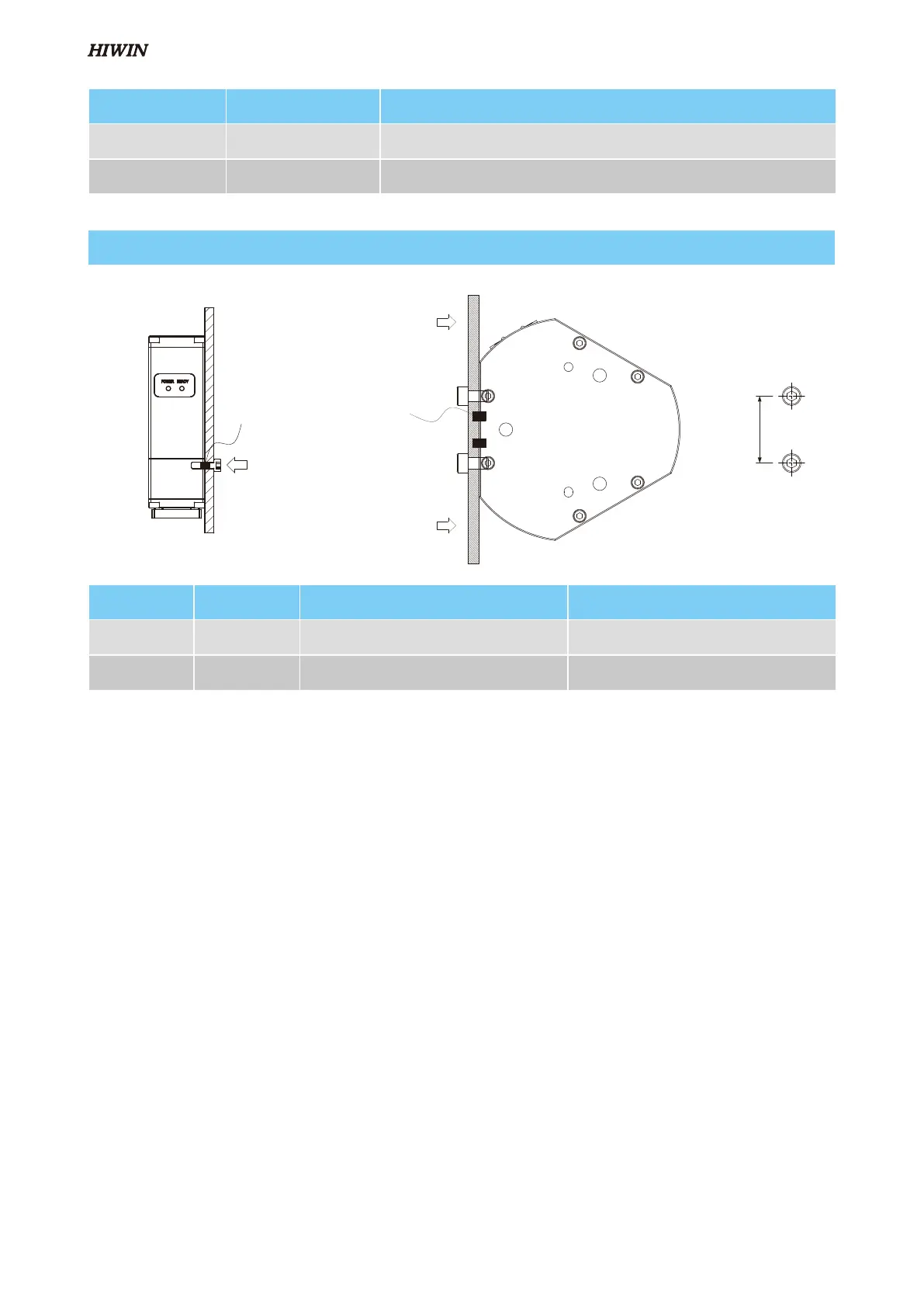

C. When using screw holes on the back of gripper body
Type Screw M Recommended locking torque T (N*m) Maximum locking depth SL (mm)
SEG-04 M4x0.7P 1.2~1.6 6
STG-16 M5x0.8P 2.8~3.4 5
固定方向
固定方向
固定方向
固定方向 固定方向
固定方向
定位銷
定位銷
定位銷
同心軸環
SEG-04
SEG-04
SEG-04
SEG-24
Mounting direction
Mounting direction
Mounting direction
Mounting direction
Locating pin Locating pins
Type Screw M Recommended locking torque T (N*m)
SEG-04 M3x0.5P 0.6~0.8
STG-16 M5x0.8P 2.8~3.4
30
STG-16
C11UE01-1907
10
