Hiwin SEG-04 User Manual

• SEG-04 with RA605 robot manipulator

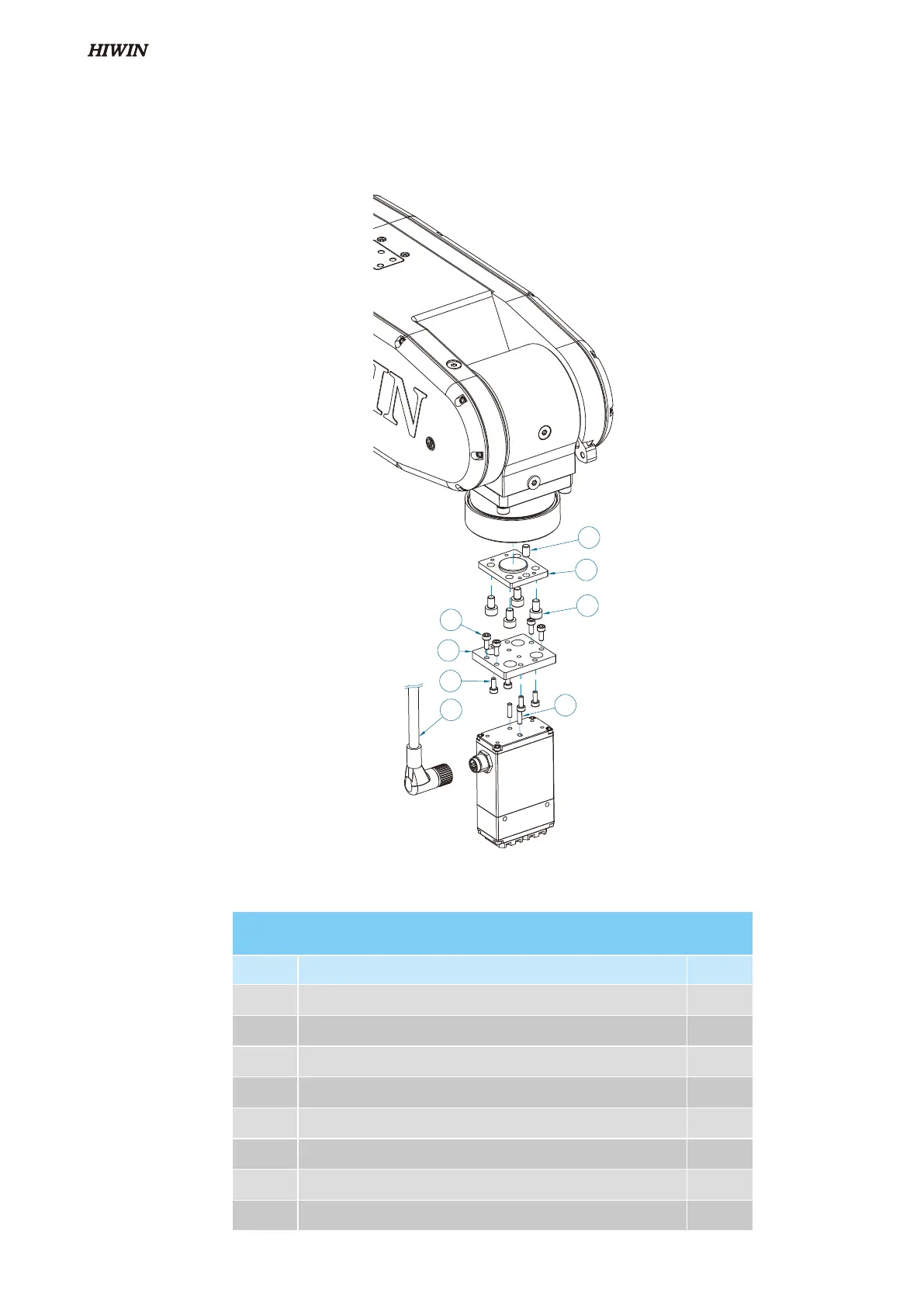

SEG-04 & RA605 - Assembly explosion diagram
SEG-04-RA605 accessory kit
Item Name Amount
1 Positioning pin (Ø5X8L) 1
2 S4-605 Robot manipulator adapter 1
3 Inner hexagon head screws (M5X0.8PX8L SUS) 4
4 Positioning pin (Ø3X10L) 2
5 S4-605 Gripper adapter 1
6 Bolt (M3X0.5PX8L SUS) 4
7 Bolt (M3X0.5PX8L SUS) 4
8 S-605HRS cable 1
1
2
3
4
7
5
6
8
C11UE01-1907
