PROCESS TIME CONTROLLER
1. Controls belt speed and maintains a constant speed by monitor-
ing the motor RPM via a Hall-effect Sensor attached to the motor
shaft. Not effected by varying belt loads.
2. Displays process time in Minutes and Seconds.
Examples: 1.30 = 1 minute, 30 seconds
1.59 = 1 minute, 59 seconds
3. When the oven is turned off, the controller will remember the last
setting. Resetting the controller is not necessary each time the
dryer is turned on.
4. Function buttons detailed below:

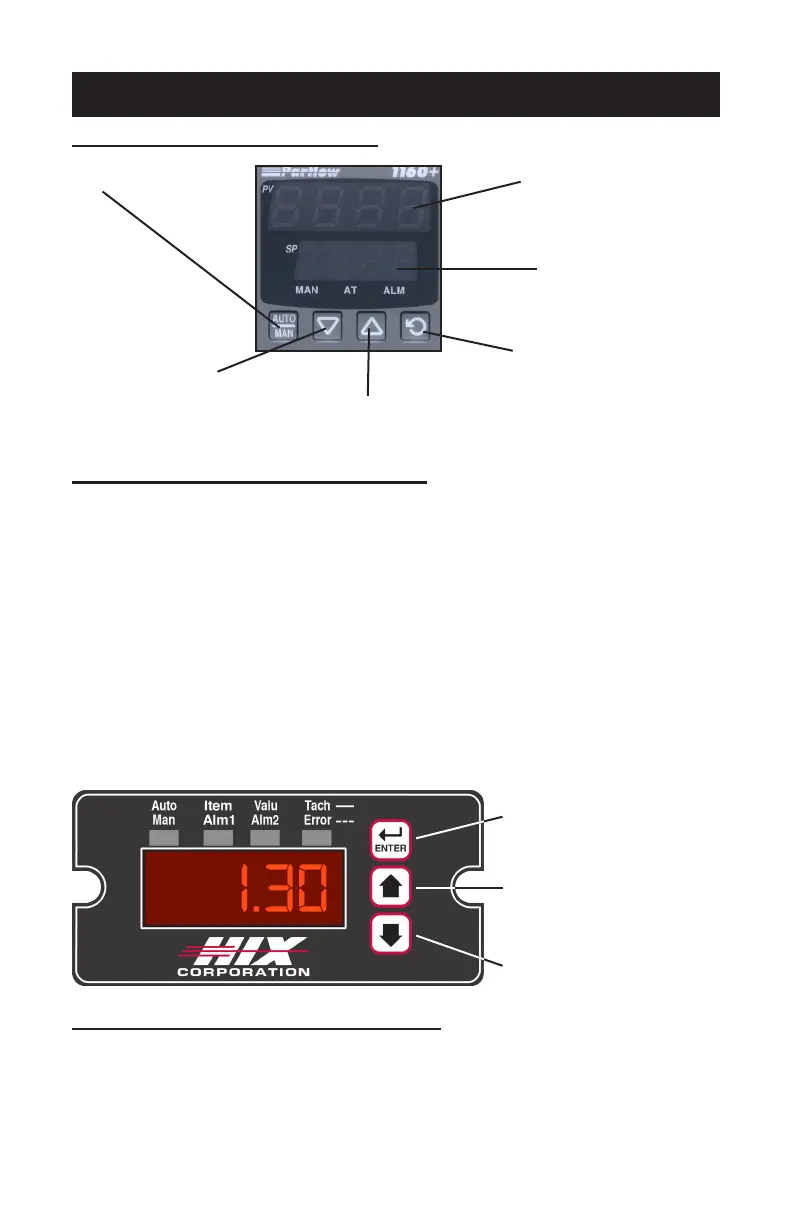

RECIRCULATING AIR CONTROL
The dryer is equipped with a very effective top delivery/bottom recovery
variableowairrecirculatingsystem.Onezoneisprovidedonmodels
24”and36”beltmodels.Twozonesareprovidedon48”models.
TIME & TEMPERATURE CONTROL
TEMPERATURE CONTROL
Not functional.
Will decrease
setpoint (SP) when
“SP” is displayed.
Will increase setpoint (SP)
when “SP” is displayed.
Pressing this function button
once will allow “SP” to be
displayed enabling the opera-
tor to change the setpoint by
pressing the “up” and “down”
buttons located below. Press-
ing once again will return the
displays to their normal mode.
Lower display shows set-
point temperature.
Upper display shows cur-
rent value of process (oven)
temperature.
Nonfunctional
(factory only)
Decreases process time
(increases belt speed)
Increases process time
(slows belt speed)
