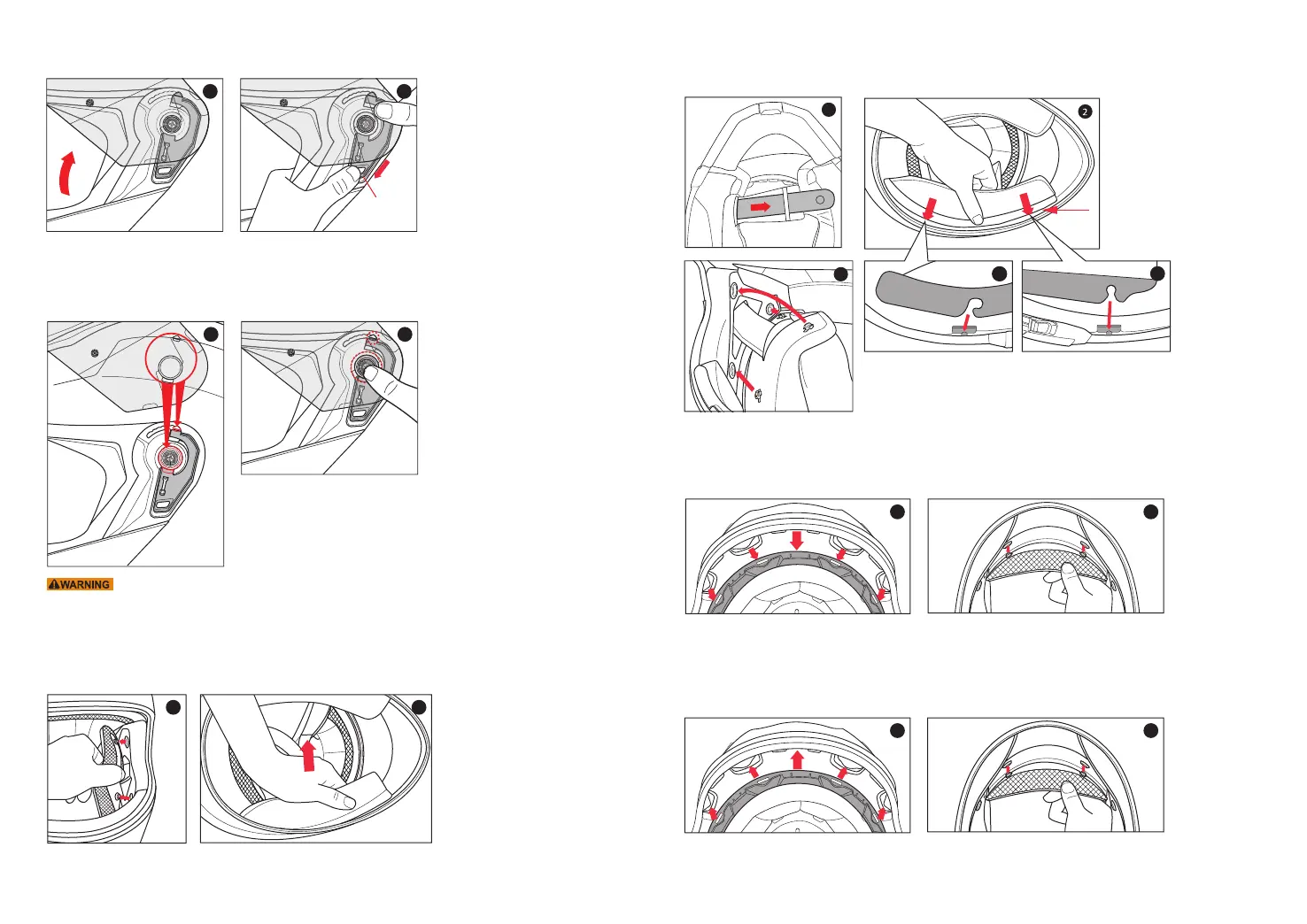

Visor(Shield) Installation
1. Align and insert the top of the visor(shield) guide into the ratchet guide.
2. With the guides properly aligned, press the lower section of the visor(shield) into the ratchet mechanism.
The locking tab should pop into position, locking the visor(shield) into place.
Cheek Pad Removal
Always check to make sure helmet pads are installed before using the helmet. A helmet with missing or
improperly installed
pads may increase your risk of serious injury or death in an accident.
There are 3 snaps holding the cheek pad in place.
1. Gently pry the check pad away from the interior, releasing the snaps.
2. Grasp the cheek pad near its center and gently pull it free from the chin strap.
Cheek Pad Installation
1. Feed the chin strap through the opening in the cheek pad.
2. Align and fully slide the cheek pad plastic plate between shell and Liner.
3. Clip the cheek pad’s 3 small male snaps to the 3 female snaps fixed on the shell interior.
Comfort Liner Removal
Comfort Liner Installation
1. Install the front section first by aligning the plastic shell base and the comfort liner plastic sleeve, ensuring that the
center and side holes are properly aligned. Press the comfort liner plastic sleeve (center portion) into the center of the
channel which is built into the plasticshell base, working your way outward to each side.
2. Align and snap the two rear snaps into place.
1. Grasp the comfort liner fabric as close as possible to its plastic base and pull/pry away from the helmet. Notice how
the comfort liner plastic section aligns with the shell plastic sleeve. This will help orient you with the reinstallation.
2. Repeat same at rear.
Visor(Shield) Removal
1. Open visor(shield) to the maximum open position.
2. Pull the ratchet handle to the open position, then pull out the visor(shield) from ratchet mechanism.
1 2
1 2
1 2
Ratchet Handle
Ratchet Handle
Ratchet Handle
OPEN
OPEN
OPEN
1 2
1 2
3
※Slide tab 'A' from the cheek pad into the holder 'B'.
(Repeat same on opposite side)
