HJC i91 - Sun Shield Installation

11
12
Try not to operate the sun shield while riding as this may impair your vision and may lead to an accident.
DO NOT pull on the sun shield when it is already down. The sun shield may be ejected and this will increase
the risk of serious injury or death in the event of an accident.
DO NOT attempt to adjust the sun shield itself with your hands. Always use the sun shield lever.
DO NOT use sun shield at night time. The sun shield is only for day time use. The sun shield does not provide
eye protection. When you use the sun shield be sure that the clear visor(shield) is also in closed position.
Above illustration shows raised
sun shield position.
Above illustration shows lowered
sun shield position.

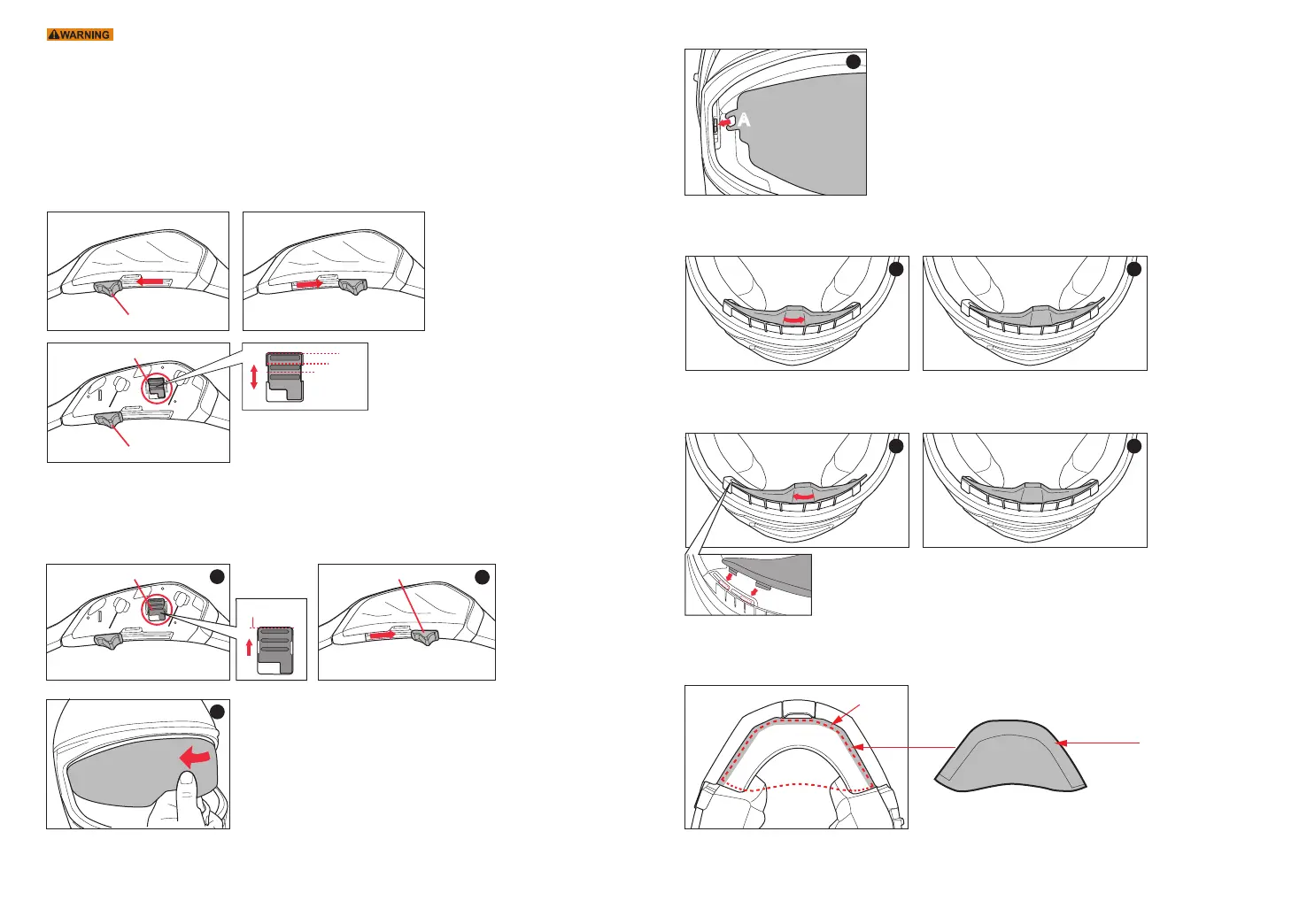

Sun shield Operation
Sun shield Removal
1. Place the stopper in stage 1.
2. Push the sun shield lever in the direction of the arrow to lower the sun shield as much as possible.
3. Gently pull one side of the sun shield as arrow indicates. (Repeat same for other side)
Sun shield Installation
1. Insert sun shield tab 'A' into 'B' position.(Repeat same on opposite side)
※ When installing the sun shield, be sure to have it slided behind
the tap ‘B’ holder.
Lever
There are three positions for the sun shield sliding lever.
Stage 1 - Standard position
Stage 2 - Higher position
Stage 3 - Highest position
Lever
Stopper
Stopper
Stage 1
Lever
3
Stage3
Stage2
Stage1
1
2
A
B
B
1
Breath Deflector Removal
1. To remove the breath deflector, pull in the direction of the arrow.
Breath Deflector Installation
1. To attach the Breath Deflector, insert into the slot and push it in the direction of the arrow.
How to install additional Chin Curtain
* This pad is attached in the interior of chin curtain and it blocks the air coming in towards the neck.
1a 1b
1a 1b
Velcro
Velcro
In use
