Bluetooth UI Cover Detachment
1. Push the Bluetooth UI cover in the direction of the arrow while pressing down on A.
Mounting the Bluetooth UI Cover
1. After aligning the hook of the Bluetooth UI cover with the groove of the body, and push
and attach.
1
1
A
HJC Intercom Placement Guide
Mounting the Intercom
Unscrew and remove the base cover at the back of the helmet to begin mounting process
of the intercom. Please refer to the manual of the current intercom you are using for directions
on mounting and unmounting the intercom unit.

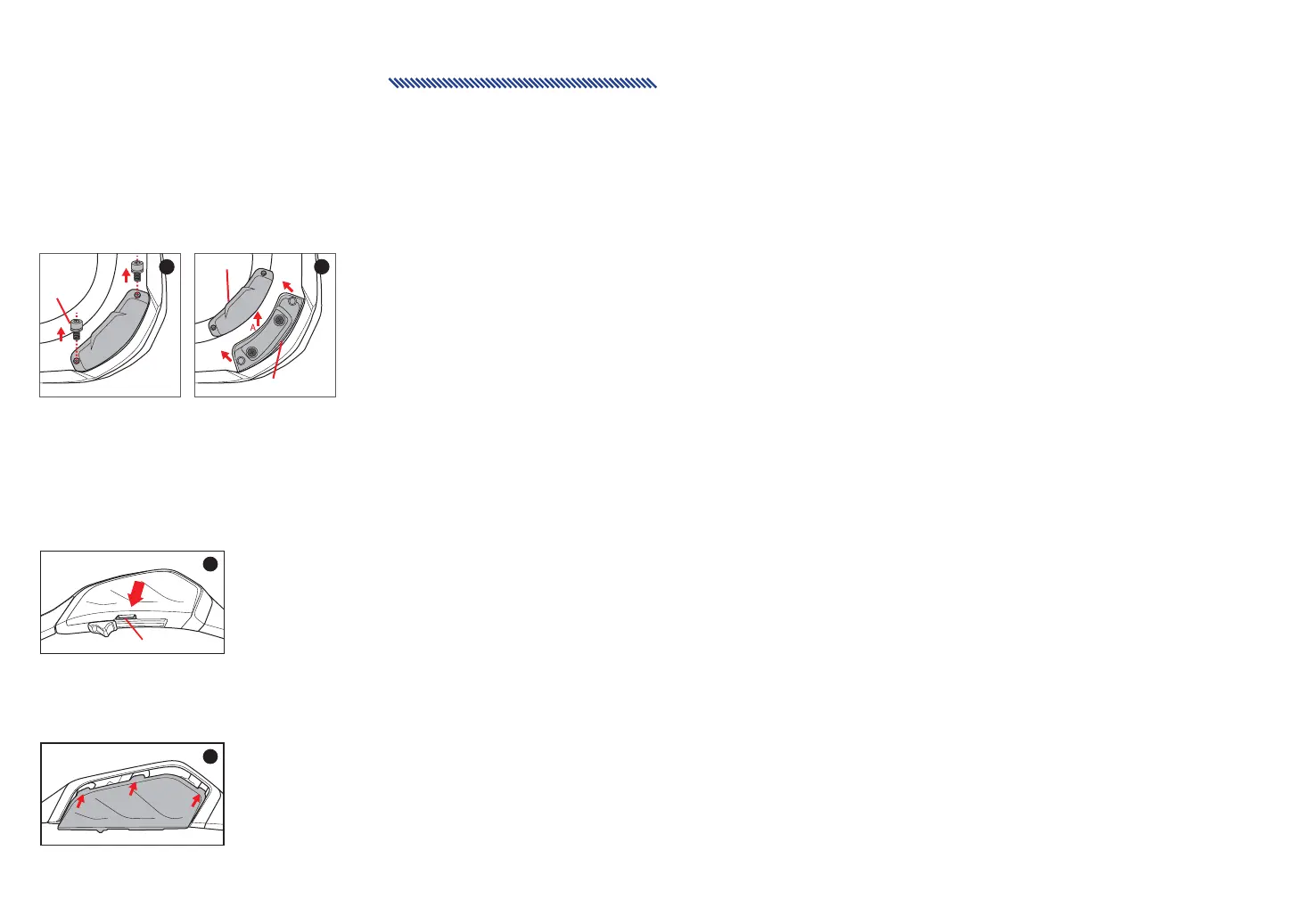

Base Cover Detachment
1. Remove the screws from the base cover. (picture1)
2. While lifting the base cover(direction A) detach it by pushing toward direction B. (Picture 2)
Mounting the Base Cover
Push the base cover underneath the gasket at the bottom of the helmet until the base cover
and the bracket screw holes match. Using the screw, fixate the base cover onto the helmet.
1
2
Screw
Base cove
Base cover
Bracke
Bracket
Screw
