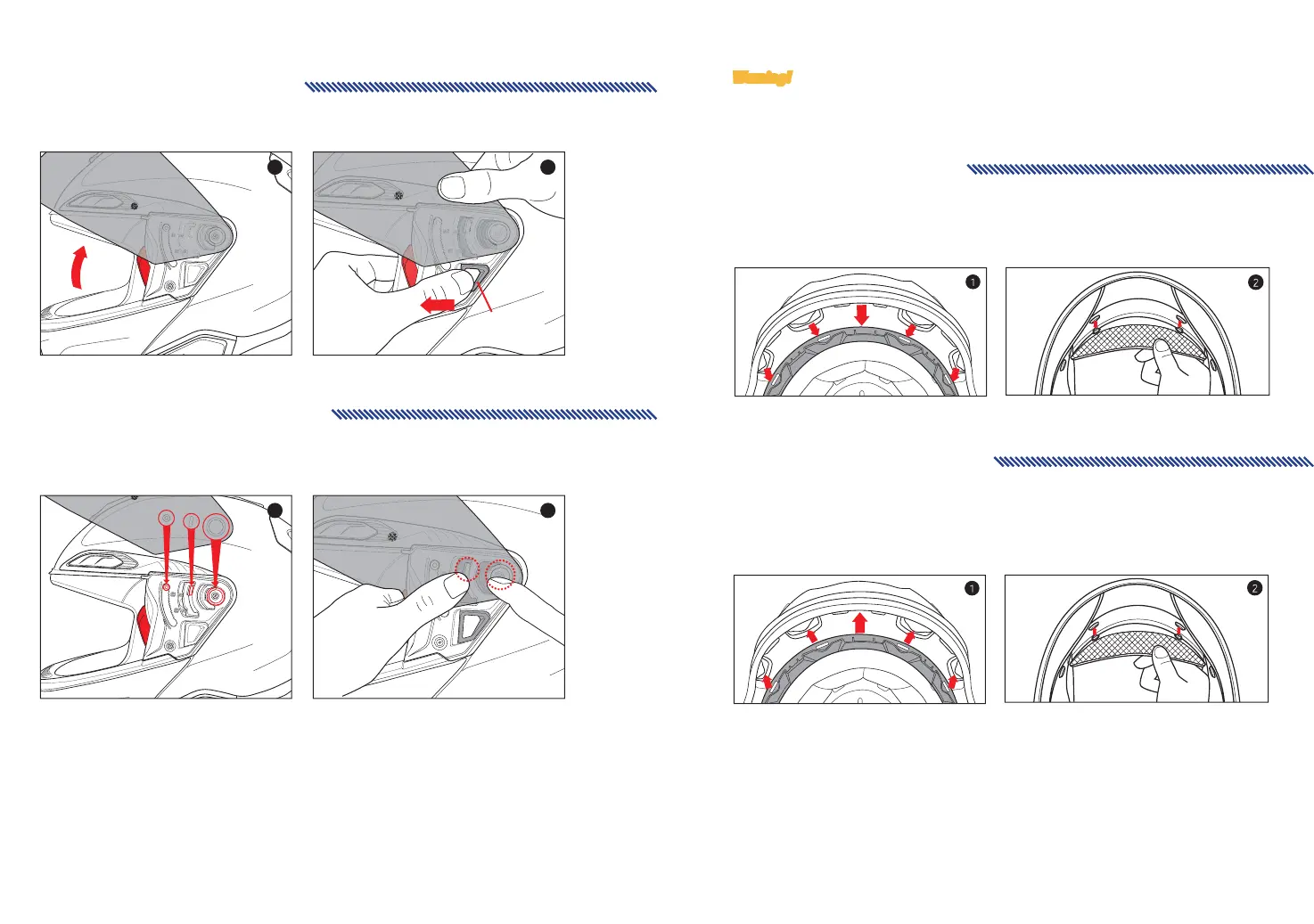

Open visor(shield) to the maximum open position.
2.
Pull the handle-locker to the open position, then pull out the visor(shield) from ratchet mechanism.
1.
Align and insert the top of the visor(shield) guide into the plate-gear guide.
2. With the guides properly aligned, press the lower section of the visor(shield) into the plate-gear
mechanism. The locking tab should pop into position, locking the visor(shield) into place.
Visor (Shield) Installation
Always check to make sure helmet pads are installed before using the helmet. A helmet with
missing or improperly installed pads may increase your risk of serious injury or death in an accident.
Visor (Shield) Removal
Warning!
1. Grasp the crown pad fabric as close as possible to its plastic base and pull/pry away from the helmet.
Notice how the crown pad plastic section aligns with the shell plastic sleeve. This will help orient you
with the reinstallation.
2. Repeat same at rear.
1. Install the front section rst by aligning the plastic shell base and the crown pad plastic sleeve, ensuring
that the center and side holes are properly aligned. Press the crown pad plastic sleeve (center portion)
into the center of the channel which is built into the plasticshell base, working your way outward to each
side.
2. Align and snap the two rear snaps into place.
Crown Pad Installation
Crown Pad Removal
1
2
1
2
Handle-locker
OPEN
To Next Page
