APL-2 Series Limit Switch Box
Installation Operation & Maintenance Manual
Doc No. : HUMG-APL2-16 Rev0 Page 4 / 10 Valve Automation Leader HKC

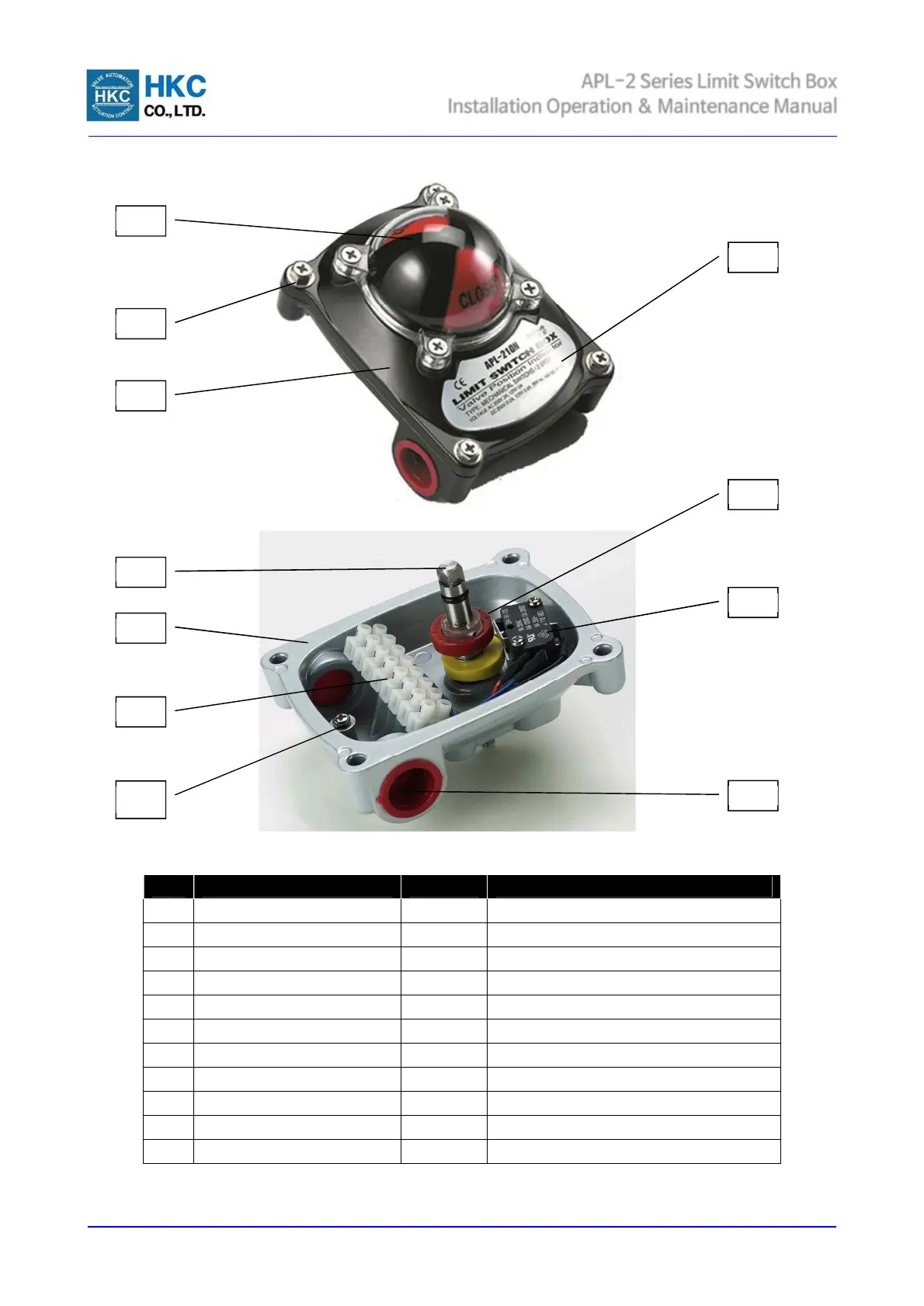

5 Standard Features
No.
Part Name
Q’ty
Description
1
Window / Indicator
1
PC / ABS
2
Captive Cover Bolt
4
Stainless steel
3
Cover
1
Stainless steel
4
Name Plate
1
Sticker
5
Shaft
1
Stainless steel
6
Body
1
Aluminum Die casting
7
Terminal Strip
2
8P (9~14P available)
8
Cam
1
PC
9
Switch
1
Mechanical or Proximity type
10
Earth Lug
1
Stainless steel
11
Blanking Element
2
PC
4
2
3
1
5
6
7
8
9
11
10
