6. Interior Structure58
6.5 Seating arrangements and sleeping areas

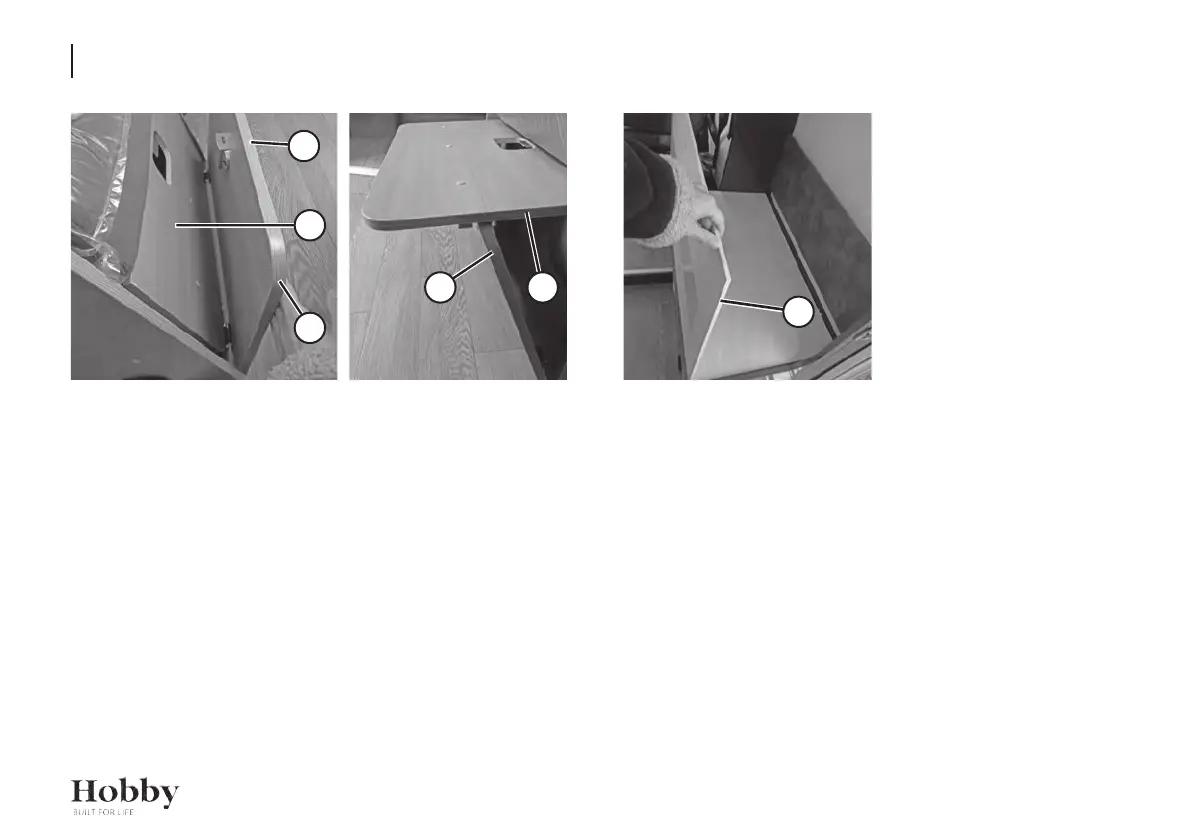

Some seating arrangements can be converted to beds.
Conversion (only Siesta De Luxe A65 und A70)
Undo the lock
j
on the end if the bench seat.
Place the end panel
k
of the seat bench on the oor.
Raise the inner panel
l
approx. 15° above the horizontal
position.
Wedge the outer panel
k
in a 45° angle (approx.) beneath
the inner panel
l
to support it.
Place the cushions on the bed as shown in 6.6 “Rearran-
ging the cushions”.
Creating the extra transverse bed
(does not apply for Siesta De Luxe, model-specic)
In order to use the additional bed, the transverse seat must
be created.
Instructions
Remove the base and back cushions.
Lower the table (Hanging table: the table extension must
be pulled out).
Fold the side seat base board
j
over by 180° and place it
on the table and re arrange the cushions to make the bed.
Widening the bench seat
Occasional bed (3rd bed)
1
2
3
2
3
1
