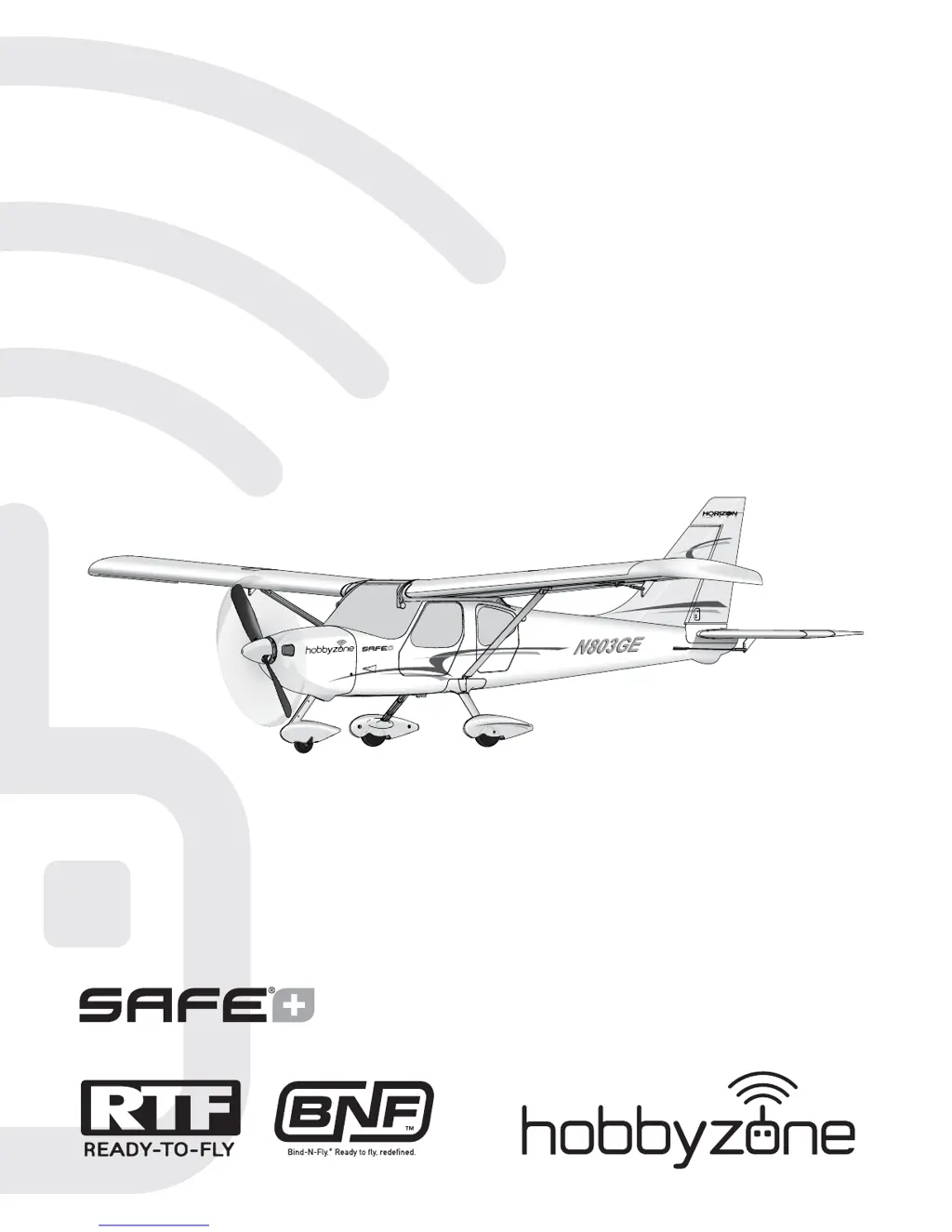

Instruction Manual • Bedienungsanleitung • Manuel d’utilisation • Manuale di Istruzioni
®
Sportsman
®
S
+

Table of Contents

Questions and Answers

  • N
    nharrisonAug 19, 2025
    What to do if HobbyZone Toy aircraft is difficult to control?
    • R
      Ruben JensenSep 12, 2025
      If the HobbyZone Toy aircraft is difficult to control, it could be due to several factors: * A damaged wing or tail: Replace the damaged part. * A damaged propeller: Land immediately and replace the damaged propeller. * The center of gravity being behind the recommended location: Shift the battery forward, and do not fly until the correct center of gravity location is achieved.
  • J
    James ChandlerAug 23, 2025
    What to do if HobbyZone Sportsman S Plus aircraft keeps turning in one direction?
    • N
      Nathan PattersonAug 23, 2025
      If the HobbyZone Toy aircraft keeps turning in one direction, it might be because the rudder or aileron trim is not adjusted correctly. Adjust stick trims, then land and manually adjust aileron and/or rudder linkages so no transmitter trim is required. Alternatively, for aileron issues, adjust stick trims or manually adjust aileron positions.
  • G
    Gregory CruzAug 26, 2025
    How to fix HobbyZone Sportsman S Plus aircraft will not Bind (during binding) to transmitter?
    • W
      william74Aug 26, 2025
      If the HobbyZone Toy aircraft will not bind to the transmitter during the binding process, consider the following: * The transmitter is too near the aircraft during binding: Move the powered transmitter a few feet from the aircraft, disconnect and reconnect the battery to the aircraft. * The aircraft or transmitter is too near a large metal object, wireless source, or another transmitter: Move the aircraft and transmitter to another location and attempt binding again. * The bind plug is not installed correctly: Install the bind plug and bind the aircraft to the transmitter. * The flight battery or transmitter battery charge is too low: Replace or recharge the batteries.
  • D
    David BrewerAug 27, 2025
    Why HobbyZone Sportsman S Plus GPS Function not operating properly?
    • O
      Olivia BlakeAug 27, 2025
      If the GPS function on your HobbyZone Toy is not operating properly, it could be because the compass has been exposed to a magnetic source. To resolve this, deactivate the GPS system while in flight and land the aircraft. Remove any possible magnetic sources such as cameras, camera mounts, speakers, etc. Unplug and reconnect the flight battery to reactivate the GPS system for the next flight. Perform a compass calibration before flying again.
  • V
    Victoria MorganAug 30, 2025
    What to do if HobbyZone Sportsman S Plus aircraft nose rises steeply at half throttle?
    • S
      Stacie HigginsAug 30, 2025
      If the HobbyZone Toy aircraft nose rises steeply at half throttle, consider these potential causes: * The wind is too gusty or strong: Postpone flying until the wind calms down. * The elevator is trimmed ‘up’ too much: If trim must be adjusted more than 4 clicks when pushing the trim button, adjust the push rod length. * The battery is not installed in the correct position: Move it forward approximately 1/2”.
  • J
    James MckeeSep 1, 2025
    Why HobbyZone Sportsman S Plus flight time is too short?
    • J
      John PayneSep 1, 2025
      If the flight time for your HobbyZone Toy is too short, it could be due to several reasons: * The battery is not fully charged: Recharge the battery. * Flying at full throttle for the entire flight: Fly at just above half throttle to increase flying time. * The wind speed is too fast for safe flight: Fly on a calmer day. * The propeller is damaged: Replace the propeller.
  • E
    Erin CohenSep 3, 2025
    What to do if HobbyZone Sportsman S Plus aircraft will not climb?
    • K
      Kathy HesterSep 3, 2025
      If the HobbyZone Toy aircraft will not climb, it could be due to several reasons: * The battery is not fully charged: Fully charge the battery before flying. * The elevator may be trimmed ‘down’: Adjust the elevator trim ‘up’. * The propeller is damaged or installed incorrectly: Land immediately, and replace or install the propeller correctly.
  • C
    Crystal PetersonSep 5, 2025
    Why HobbyZone Sportsman S Plus aircraft vibrates?
    • L
      Lindsay MartinezSep 5, 2025
      If the HobbyZone Toy aircraft vibrates, it is likely due to a damaged propeller, spinner, or motor. Try tightening or replacing the affected parts.
  • J
    jonesbenjaminSep 7, 2025
    What to do if HobbyZone Sportsman S Plus Toy rudder, ailerons or elevator do not move freely?
    • A
      aaron38Sep 7, 2025
      If the rudder, ailerons, or elevator on your HobbyZone Toy do not move freely, it's likely due to damaged or blocked push rods or hinges. Repair any damage or clear any blockages.
  • D
    Donna ZimmermanSep 10, 2025
    What to do if HobbyZone Toy aileron and/or rudder are not in neutral position when battery is plugged in?
    • T
      Tony MahoneySep 10, 2025
      If, after being properly adjusted, the aileron and/or rudder are not in the neutral position when the battery is plugged into your HobbyZone Toy, it may be because the model was moved during initial power on. Unplug the flight battery and reconnect it, keeping the model immobile for at least 5 seconds.

Summary

General Safety Precautions

Aircraft Specifications

Charging the Flight Battery

Transmitter Setup and Operation

BNF Transmitter Setup

Dual Rates and Control Surfaces

Transmitter and Receiver Binding Procedure

Binding Procedure Reference Table

Step-by-step guide for binding the transmitter to the receiver.

Aircraft Assembly Instructions

Wing Installation Procedure

Center of Gravity (CG) and Flight Balance

CG Balancing Tips

Tips for balancing the aircraft using fingertips.

CG Effects on Flight

How CG affects aircraft stability and flight characteristics.

Flight Battery Installation and GPS Initialization

Control Direction Test Procedure

Experienced Mode Control Test

Testing control surface response in Experienced Mode.

Beginner Mode Control Test

Testing control surface response in Beginner Mode.

Understanding Flight Controls

Elevator Control

How to use the elevator stick for pitch control.

Aileron Control

How to use the aileron stick for banking and turning.

Rudder Control

How to use the rudder stick for ground steering and air yaw.

Trimming the Aircraft for Stable Flight

Manually Adjusting Trim

Procedure for manual trim adjustment before flight.

Adjusting Trim in Flight

How to adjust trim settings while the aircraft is airborne.

Choosing a Safe Flying Field

Performing a Range Test

Preflight Checklist

Essential steps to perform before each flight session.

Flying the Sportsman S+

SAFE Technology Flight Modes

Explanation of Beginner, Intermediate, and Experienced flight modes.

Compass Calibration Procedure

Steps to calibrate the compass for accurate GPS and flight modes.

Takeoff and GPS Lock Initialization

Virtual Fence: Park Setting (VF Park)

Details the default VF Park feature and its radius.

Virtual Fence: Airfield Setting (VF Airfield)

Details the VF Airfield feature, including No Fly Zone.

Takeoff Procedures

Ground Launch Technique

Instructions for launching the aircraft from the ground.

Hand Launch Technique

Instructions for launching the aircraft by hand.

In Flight Operations

Basic flying advice and orientation recovery.

Advanced In-Flight Features

Landing the Sportsman S+

AutoLand Feature Operation

Instructions for using the automatic landing feature.

Post Flight Checklist

Essential steps to perform after flying the aircraft.

Deactivating the GPS System

Service and Repair Information

Service of Power Components

Nose Gear Service and Adjustment

Troubleshooting Common Issues

Unit Does Not Operate

Resolving issues where the aircraft or transmitter is unresponsive.

Aircraft Keeps Turning

Troubleshooting why the aircraft turns in one direction.

Aircraft Turns on Ground

Resolving ground steering issues.

Aircraft Does Not Land on Heading

Troubleshooting landing heading discrepancies.

AMA National Model Aircraft Safety Code

HobbyZone Sportsman S Plus Specifications
