Hobie 18 SX User Manual

2

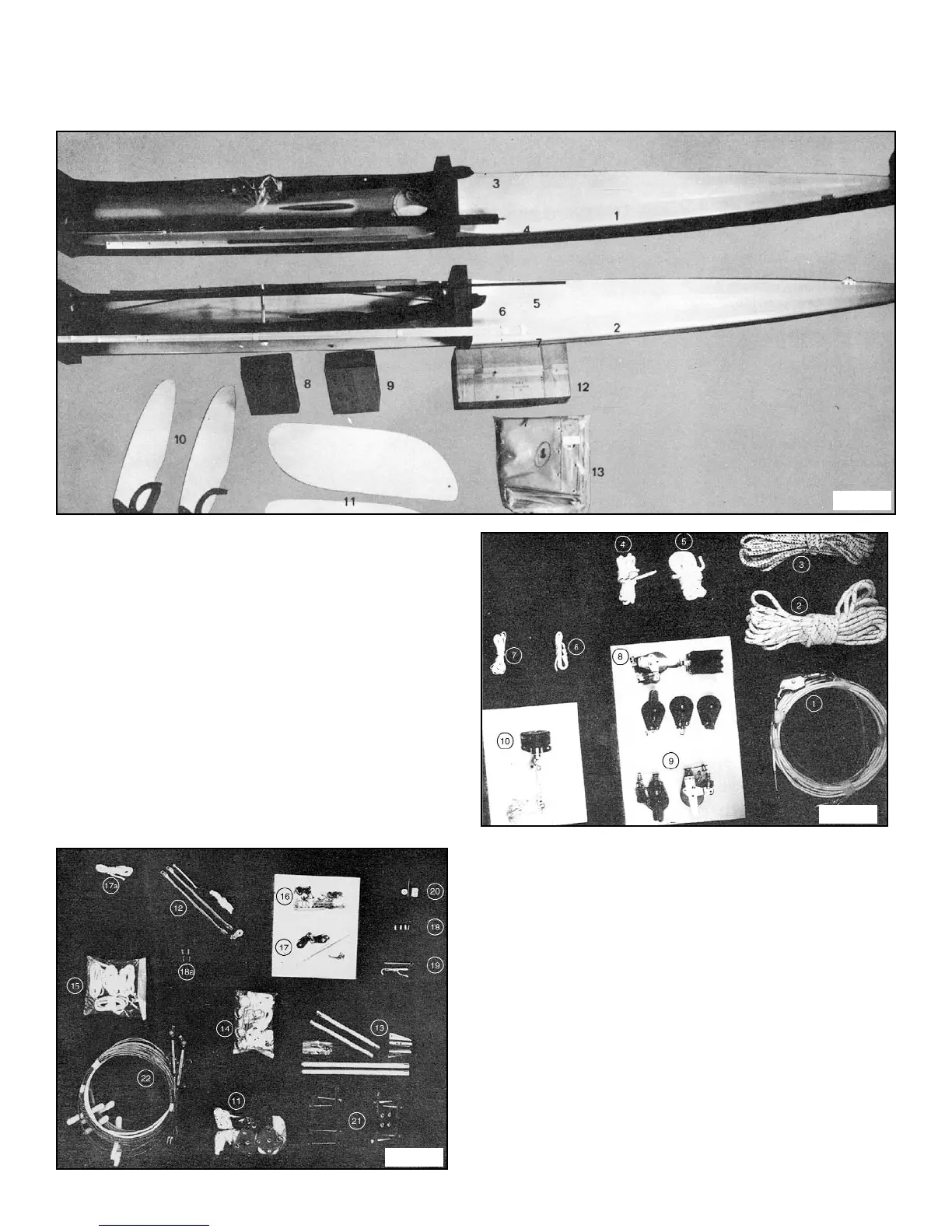

Packaging Layout
1. Port Hull
2. Starboard Hull
3. Back Bar
4. Boom
5. Tiller Cross Bar
6. Front Bar
7. Battens
8. Rigkit Box #1
9. Rigkit Box # 2
10. Rudders
11. Daggerboards
12. Sail Main and Jib
13. Trampoline
14. Mast (not shown)
Hobie Cat 18 SE Rig Kit Box #1 (fig 2)
Description Quantity
1. Shrouds, Forestay 2,1
2. 7/16” Mainsheet 48’ 1
3. 5/16” Jib Sheet 45’ 1
4. 1/4” Trampoline Lacing - Center 1
5. 1/4” Trampoline Lacing - Aft 2
6. Jib Luff Tensioner 2” 1
7. Jib Halyard Line 20” 1
8. Mainsheet Block Assembly 1
9. Jib Sheet Block 2
10. Jib Furling Assembly w/line 17” 1
Figure 1
Figure 3
Figure 2
See page 25 for descriptions
