E 2005 Hoffman Enclosures Inc.
4 87565511

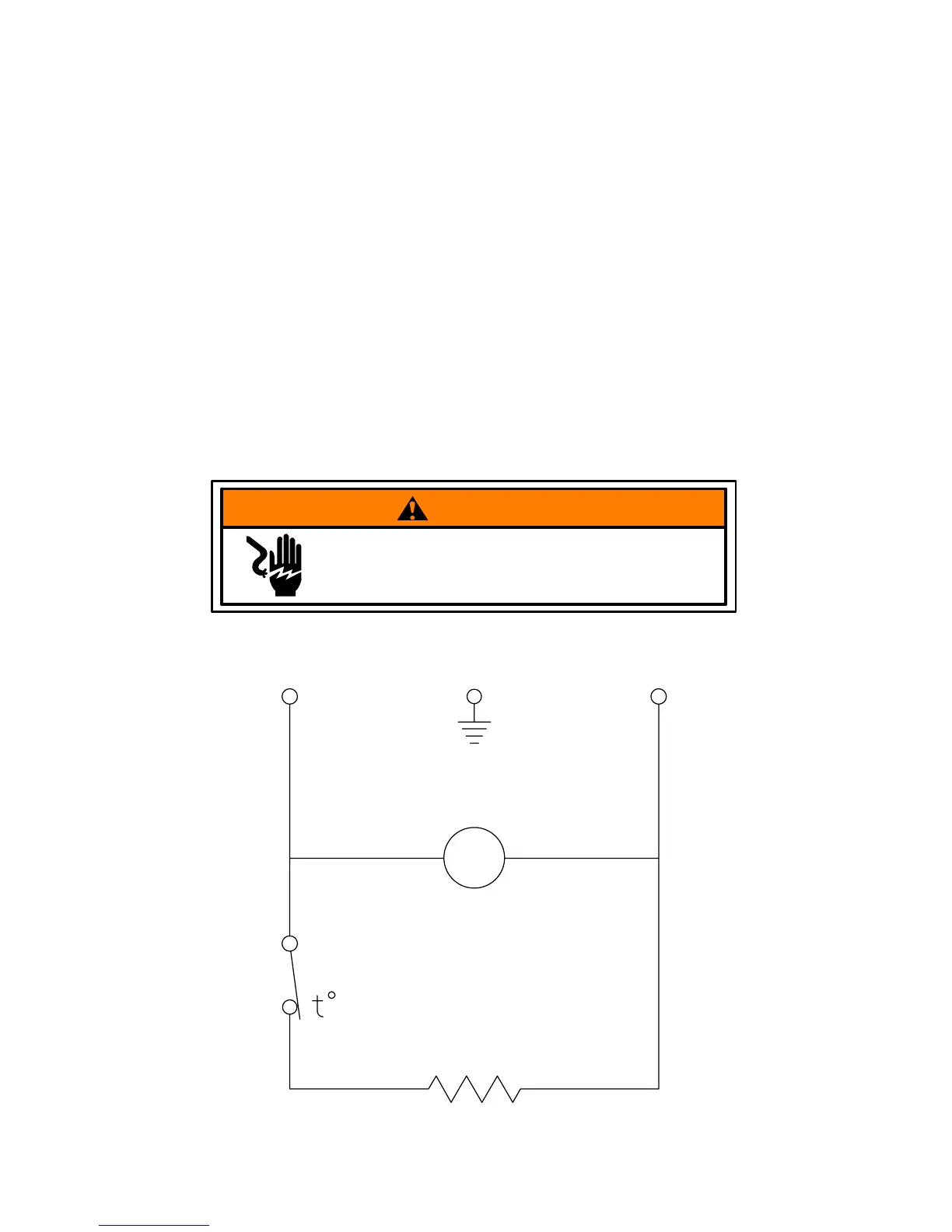

Wiring Schematic
L1
N
or
L2
M
To avoid electric shock, do not energize any circuits
before all internal and external electrical and
mechanical clearances are checked to assure that all
assembled equipment functions safely and properly.
English
WIRING (Reference Page 14)
1. All wiring must comply with applicable local codes and ordinances.
2. Connect the heater leadwires to the proper A.C. power source. Power
source for 800 watt heaters should be continuous.
3. The heater must be properly grounded.
NOTE: Exposed wires should not come in contact with the heater housing.
MAINTENANCE
1. Always disconnect power supply before inspecting or working on the heater.
2. Generally the unit requires no maintenance since the fan bearings are
permanently lubricated and sealed.
WARNING
Fan
Thermostat
Heating Element
To Next Page
