Hoftronic 4406509 - Wiring Diagram

• Safe and reliable full isolation design
• Radio Frequency: 868/869.5/916.5/434mhz
• Trailing edge dimming
• Supportsresistiveloadsandcapacitiveloads
• Greatcompatibilitywithavarietyofremotecontrols
• Innovativeminimumbrightnesssettingfunction
• To dim and switch single color dimmable LED lamps, traditional incandescent and halogen lights
• Waterproof grade: IP20
1. With dimmable LED Light
2.WithdimmableLEDDriver

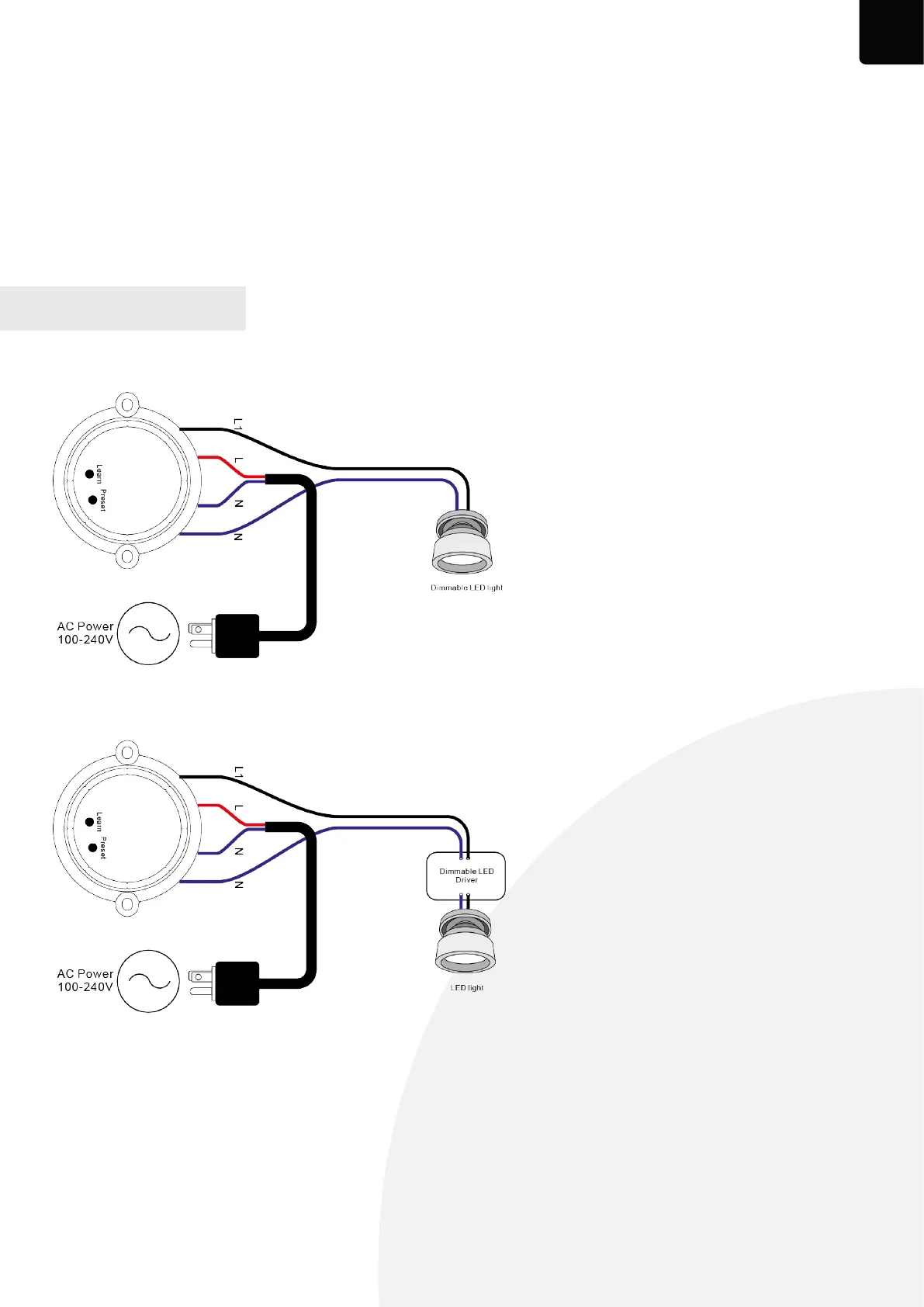

WIRING DIAGRAM
Thisphasedimmeradoptstrailingedgedimming(reversephasecontrol),pleasemakesuretheconnectedloadssupportreversephasecontrol.
Please refer to the user manual of the load or consult the supplier of the load.
