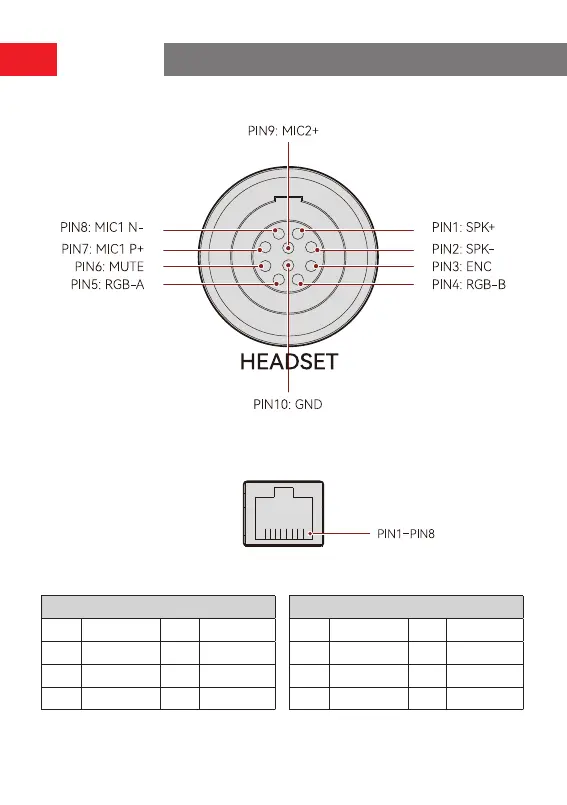

0B10 Wired Headset Inteace

4-Wire Audio Input & Output Inteace

4 WIRE

Inteaces

Standard Line Sequence

PIN1 GND PIN5 AUDIO OUT-

PIN2 GND PIN6 AUDIO IN-

PIN3 AUDIO IN+ PIN7 GND

PIN4 AUDIO OUT+ PIN8 GND

Cross Line Sequence

PIN1 GND PIN5 AUDIO IN-

PIN2 GND PIN6 AUDIO OUT-

PIN3 AUDIO OUT+ PIN7 GND

PIN4 AUDIO IN+ PIN8 GND
