Step 3a – Attachment to Shelf
• When attaching to a shelf, the
location should be set from the
previous step.

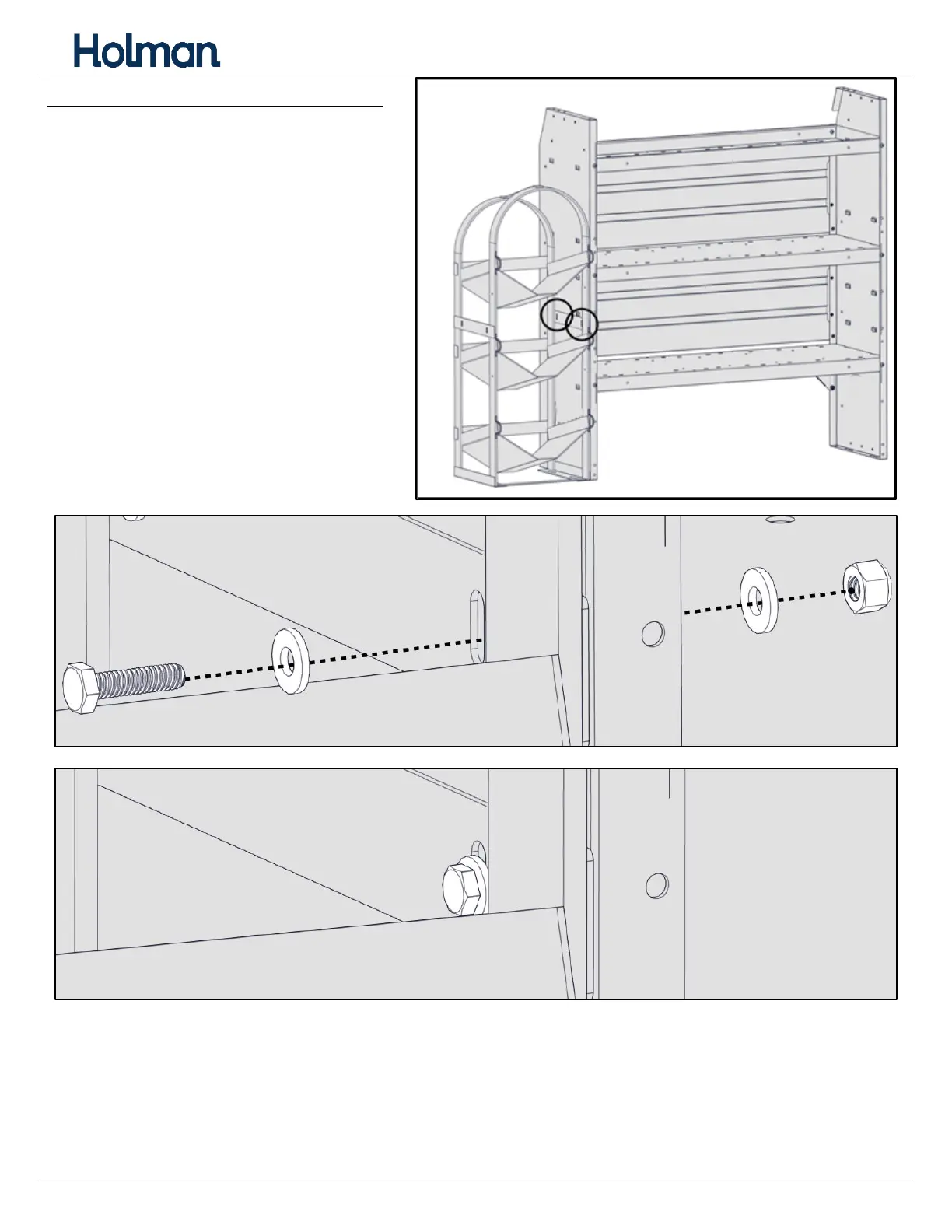

• Mark onto the shelf through both
slots on the tank rack as shown.
• Drill two 1/4" holes in the shelf
side where previously marked.
• Attach the tank rack to the shelf
using 1/4" x 1” hex head bolts,
two 1/4" flat washers and 1/4"
nyloc nuts.
• Follow the other steps to securely
attach the tank rack.
