• Place the angle bracket firmly against a solid mounting location. With the strap aligned with
a mounting slot on the tank rack, mark through the hole in the angle bracket onto the
desired mounting location.
• Expose the markings on the mounting location.
• Prior to drilling, ensure there is no wiring or critical components in the path of the drilling
operation. Drill a 25/64” hole. Be sure to use a drill stop to ensure safety when drilling.

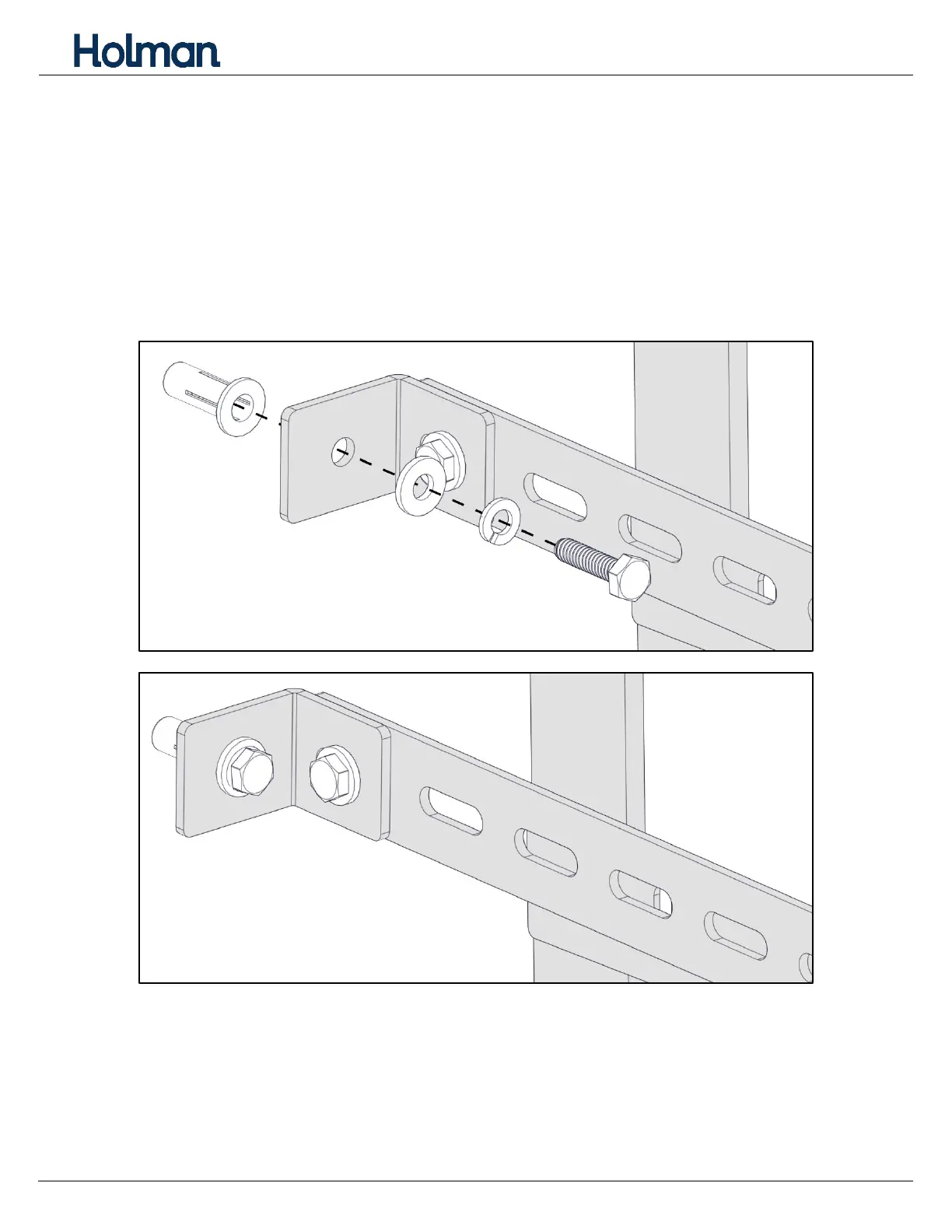

• Install plus nuts where the holes were drilled.
• Align the angle bracket with the installed plus nuts. Bolt into place using 1/4" x 1” hex head
bolt, 1/4” split lock washer and 1/4" flat washer.
