Installation (Continued)

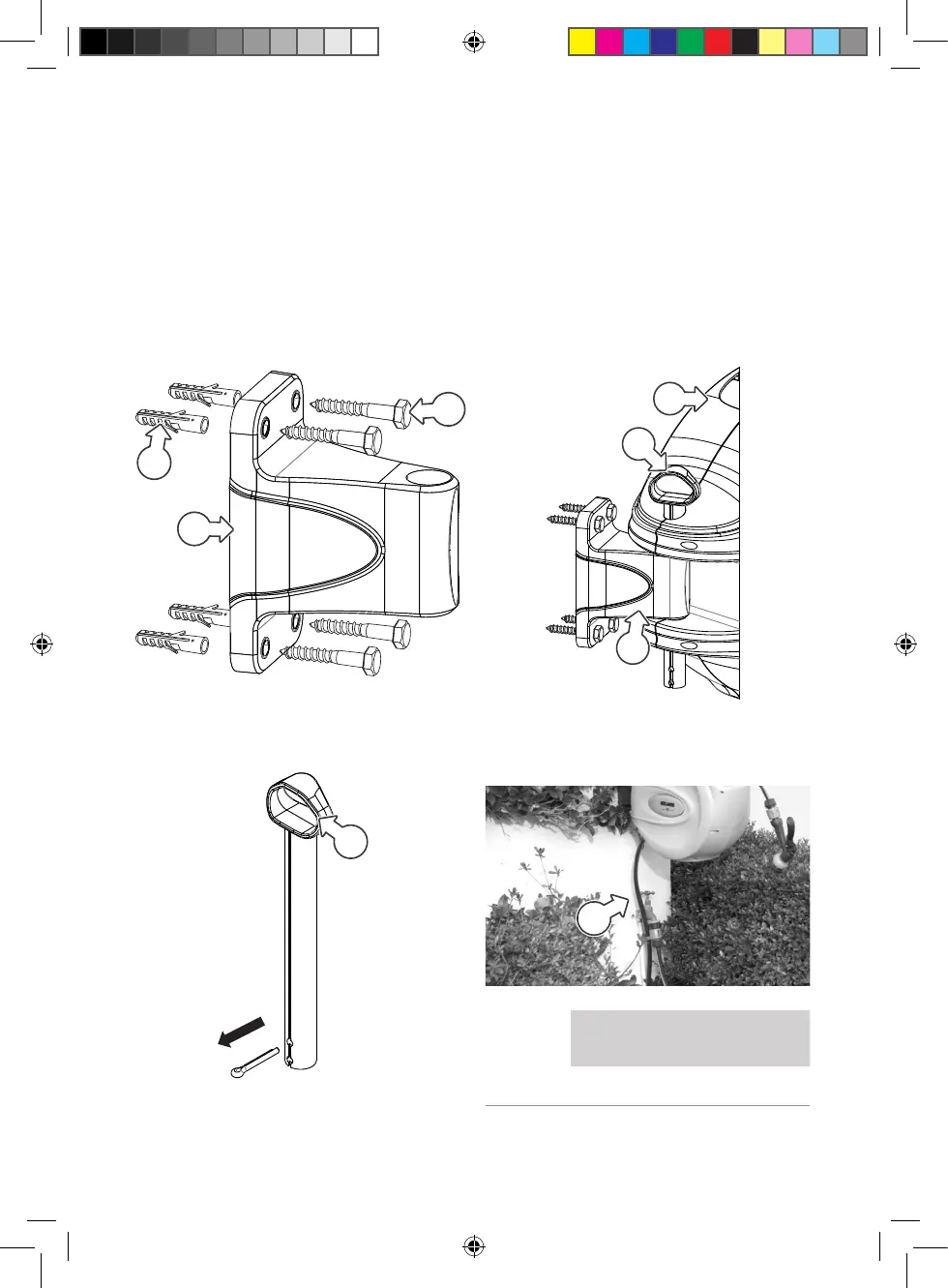

6. Place the WALL BRACKET in position over the four
WALL PLUGS and screw each
HEXAGONAL COACH BOLT into
your wall or wooden post
7. Screw in each HEXAGONAL COACH BOLT
until all four have a secure hold on
the bracket against the surface
8. Take your Retractable Hose Reel, and remove the
securing pin at the base of the MOUNTING TUBE
9. Remove the MOUNTING TUBE from the
Hose Reel and slot it over the WALLBRACKET.
Align the holes in the HOUSING with
the holes in the WALL BRACKET
10. Insert the MOUNTING TUBE back into the holes on
the WALL BRACKET and HOUSING. Then replace
the securing pin in the base of the MOUNTING TUBE
11. Connect your TAP-TO-REEL HOSE
to your garden tap
1110H
10m
1120H /
CH1120
20m
1130H /
CH1130
30m
DISTANCE
FROM TAP
MAX 1m MAX 2m MAX 2m
d
c
b
a
d
h
a
f
