Mounting the Controller
Our Plug + Socket system means expansion is easy with no electrician required. Install the controller near
a 240V AC power point ideally located in a house, garage, or exterior electrical cubicle.
For ease of use, eye level placement is recommended. Ideally, your controller location should not be
exposed to rain or areas prone to flooding or heavy water. This controller comes with an internal transformer
installed in a weatherproof enclosure. The housing is designed for indoor or outdoor installation but the
power cable needs to be plugged into an outdoor power point under cover.
Drill a hole suitable for a wall plug and a insert a screw with a minimum 7mm wide screw-head. Hang
the controller over the screw head using the key hole slot positioned externally on the top centre of the
back of the controller. If your controller requires extra support you can drill an additional hole and fasten it
through the spare holes positioned internally under the terminal cover.
Connecting the Cables
Ensure you have the compatible cables for your controller.
CLBRGB60 4-Pin Plug + Socket
CLBW60, CLW60 2-Pin Plug + Socket
Connect the power cable to an outdoor power point. Ensure the socket is weatherproof if you have mounted
your controller outdoors. Ensure the Plug + Socket cable ends are touching and the caps are hand
tightened only. An end cap is provided on each cable to weatherproof the last connector.

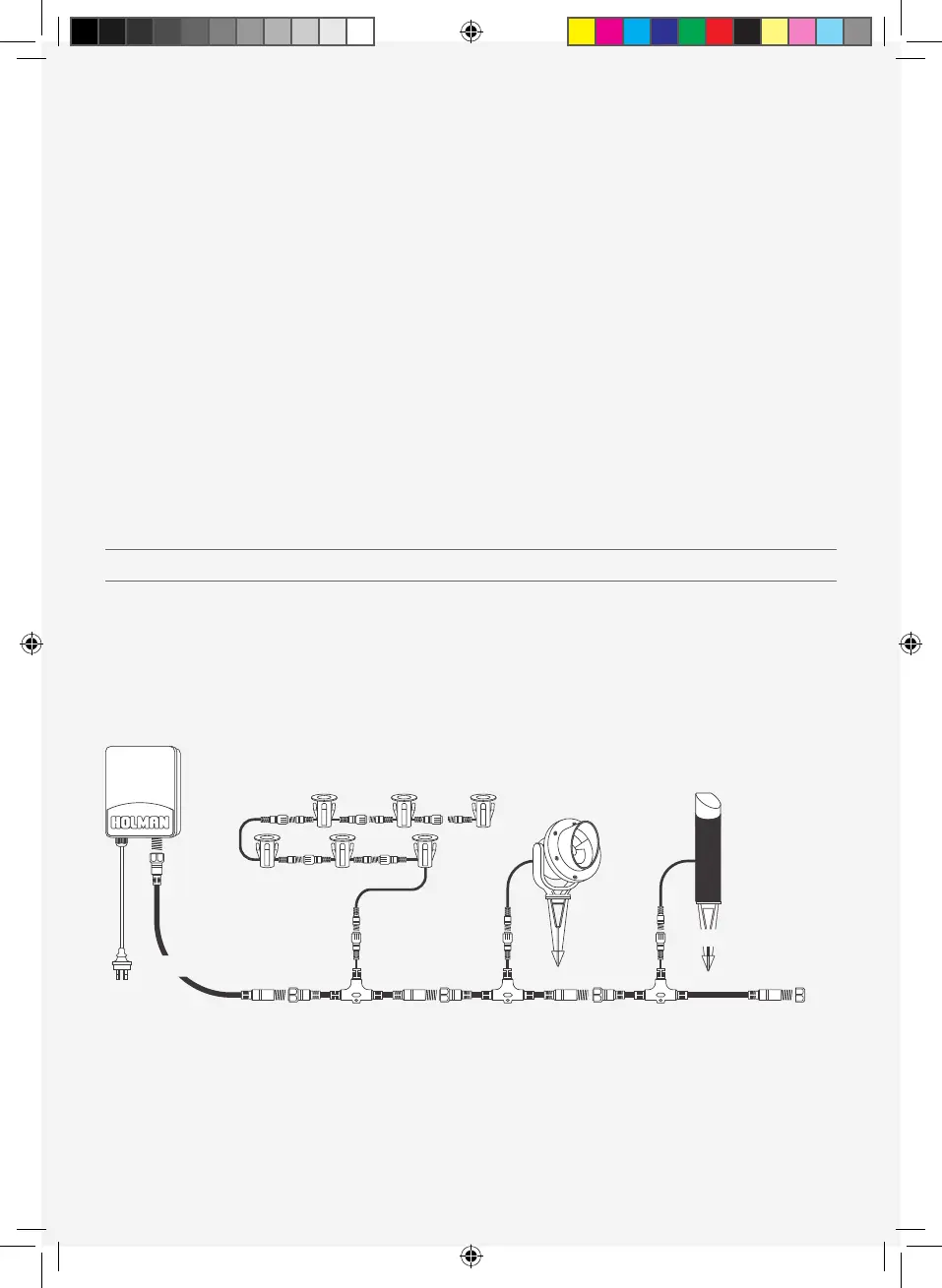

Setup Example (Connect up to 60W of Lights)*
Only use lights within one colour system,
either RGB Colour 4-Pin Plug + Socket or Warm White 2-Pin Plug + Socket
These controllers have a capacity of 60W. Power is consumed by both the lights and the cable.
It is best to connect no more than 55W of lights, and no more than 75m of cable to a controller.
These controllers have an automatic power overload switch that will
turn the lights off if too much power is being consumed.
Controller or Transformer
Power Cable
Extension Cable
Deck Lights
Spotlight
Path Light
Connection
Tees
CLBRGB60 CLBW60 CLW60 Manual 2020 v2.indd 3CLBRGB60 CLBW60 CLW60 Manual 2020 v2.indd 3 23/7/20 12:36 pm23/7/20 12:36 pm
