7 | P a g e

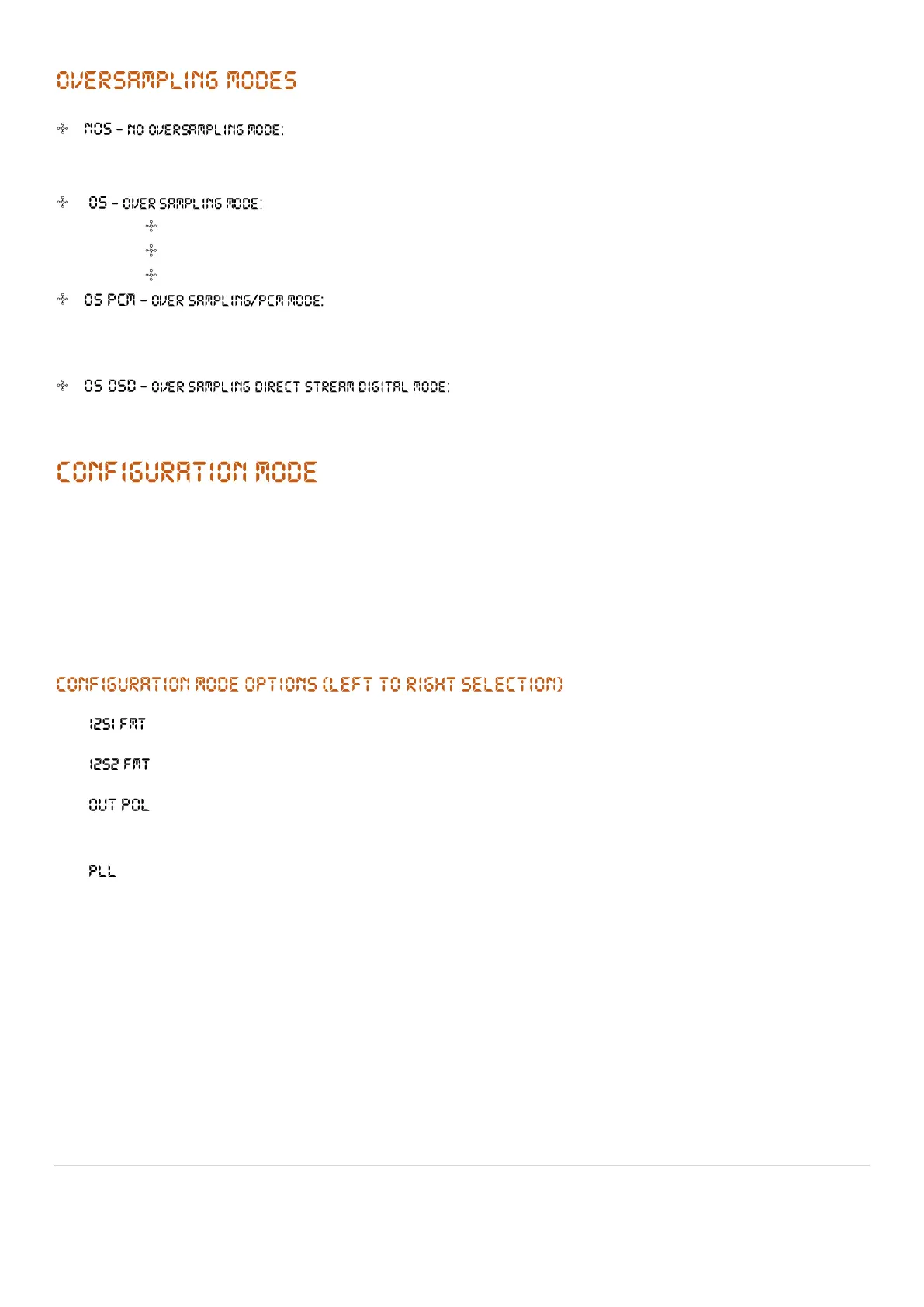

directly converts the original data. Since digital oversampling caN cause time domain
distortion such as ringing effects, NOS can avoid these problems. Generally speaking, NOS has a significant impact
on other performance indicators, but the May “梅” is designed to maintain good performance in NOS mode.
Super-sampling the PCM to a higher frequency PCM
oversampling the DSD to a higher frequency DSD
performing a digital to analog conversion.
whether it is PCM input or DSD input, always oversample to PCM for digital
analog conversion.
Whether in PCM input or DSD input, super-sampling to DSD
mode for digital analog conversion.
How to enter Configuration mode:
In shutdown mode (powered off state, red light indicated) press and hold the menu button and power button to
enter menu mode. Then press the menu button to select the configuration mode, press the left button or right
button to change the configuration mode.
Select from HOLO, ALT1, ALT2, ALT3. Reference I2S Port Pinout for an explanation and the I2S line sequence. (See page 10)
Select from HOLO, ALT1, ALT2, ALT3. Reference I2S Port Pinout for an explanation and the I2S line sequence. (See page 10)
STANDARD, the analog RCA output is normal polarity, balanced XLR output 1-Ground, 2-Hot, 3-cold.
REVERSED, the analog RCA output is reverse polarity, balanced XLR output 1-Ground, 2-Cold, 3-Hot.
Select ON to turn on the PLL function and work with all digital input signals to eliminate Jitter.
Select OFF to turn off the PLL function.
