ERSATZTEILE / SPARE PARTS
HOLZMANN MASCHINEN Austria www.holzmann-maschinen.at Seite 43
STÄNDERBOHRMASCHINE / DRILL PRESS SB2516H

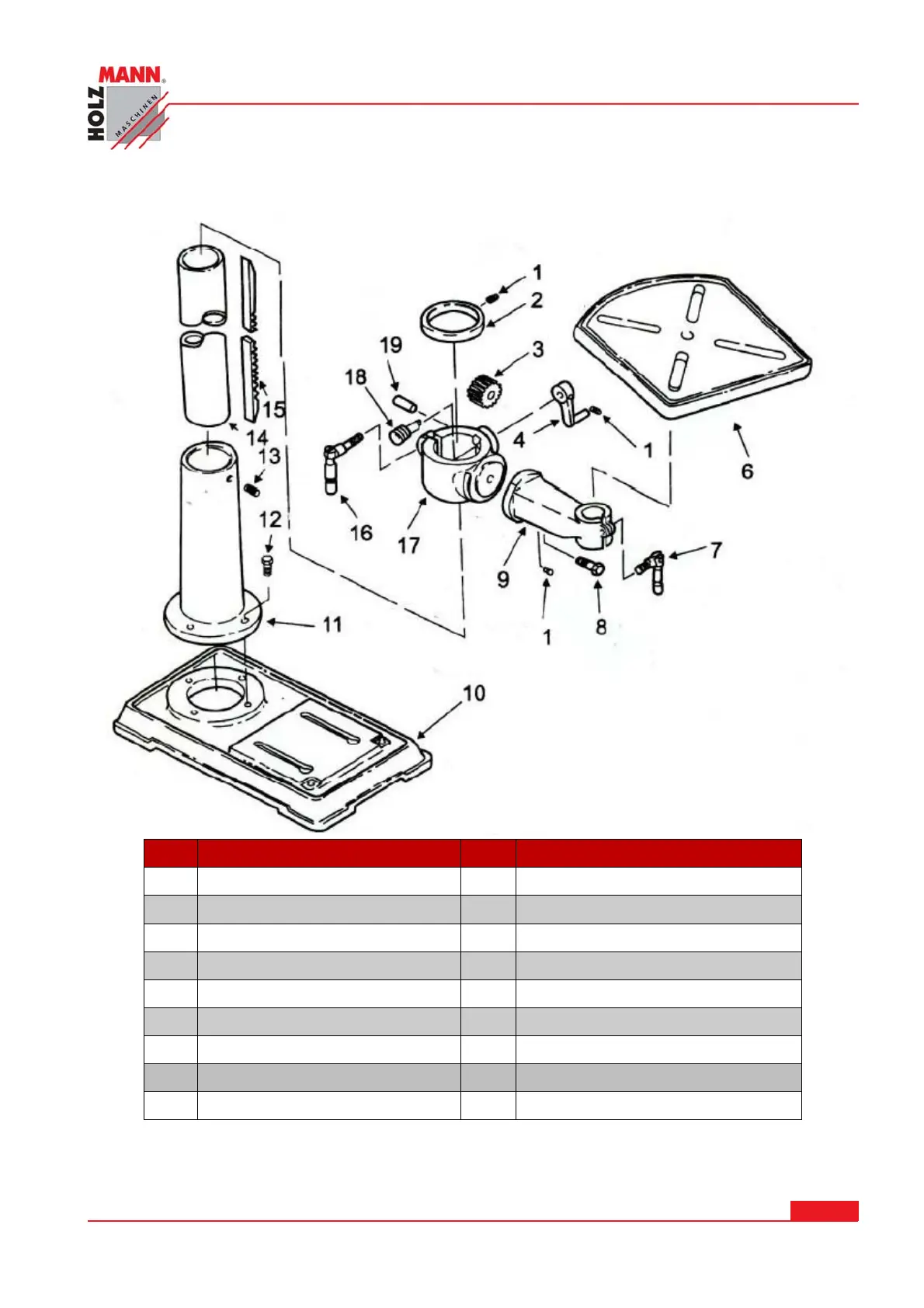

18.2 Explosionszeichnung SB2516H / Explosion diagram SB2516H
No. Specification No. Specification
1 Screw-Hex soc set M6x1.0-10 11 Suppport column
2 Collar rack 12 Screw hex HD M10x1.5-40
3 Gear-helical 13 Screw hex soc set M10x1.5-12
4 Crank 14 Tube column
6 Table 15 Rack
7 Clamp table 16 Clamb column
8 Screw hex HD M16x20-35 17 Support table w/indicator
9 Arm-table w/scale 18 Worm elevation
10 Base 19 Pin gear
