Holzmann SB2516H - Page 45

ERSATZTEILE / SPARE PARTS
HOLZMANN MASCHINEN Austria www.holzmann-maschinen.at Seite 45

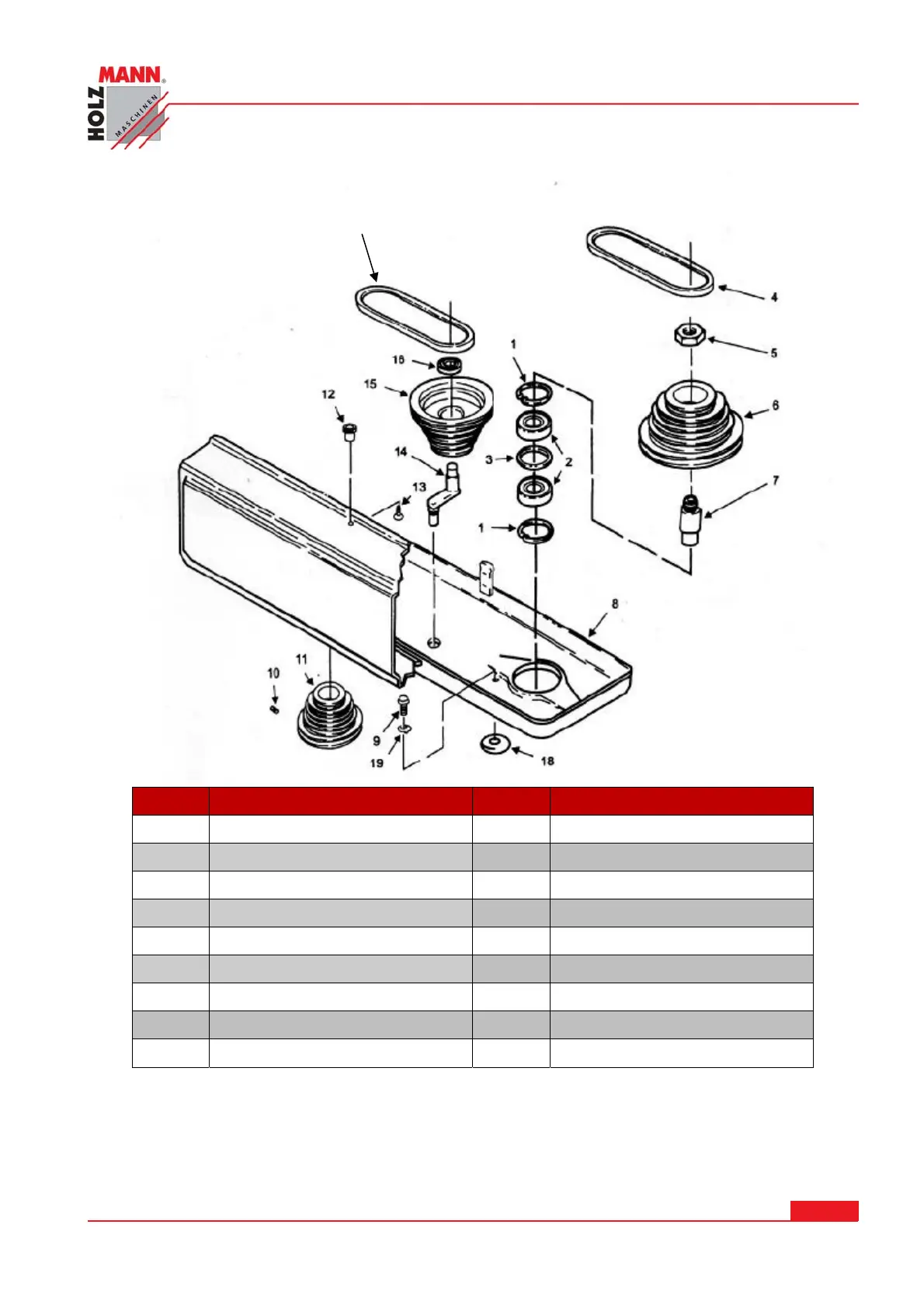

STÄNDERBOHRMASCHINE / DRILL PRESS SB2516H
No. Specification No. Specification
1 Ring retaining 10 Screw set M10x1.5-12
2 Bearing ball 25mm 11 Pulley motor
3 Spacer bearing 12 Screw-pan HD M5x0.8-12
4 / 4a Belt A29 / Belt A27 13 Screw M5
5 Nut-pulley 14 Pivot idler
6 Pulley spindle 15 Pulley center
7 Insert-pulley 16 Bearing ball 15mm
8 Guard-pulley w/labels 18 Washer foam
9 Screw HD washer M6x1.0-16 19 Lock washer ext.M6
4a
