P. 4
Step 2. HANDLE BAR ASSEMBLY
Insert the stem into the scooter fork tube (Fig 2), making sure the handle bars are alligned
correctly to the wheels, please be sure to insert to the minimum insertion line. Now tighten the
large nut on the forks to secure the stem and adjust the handles bars to correct position and
tighten all the bolts permanantly.

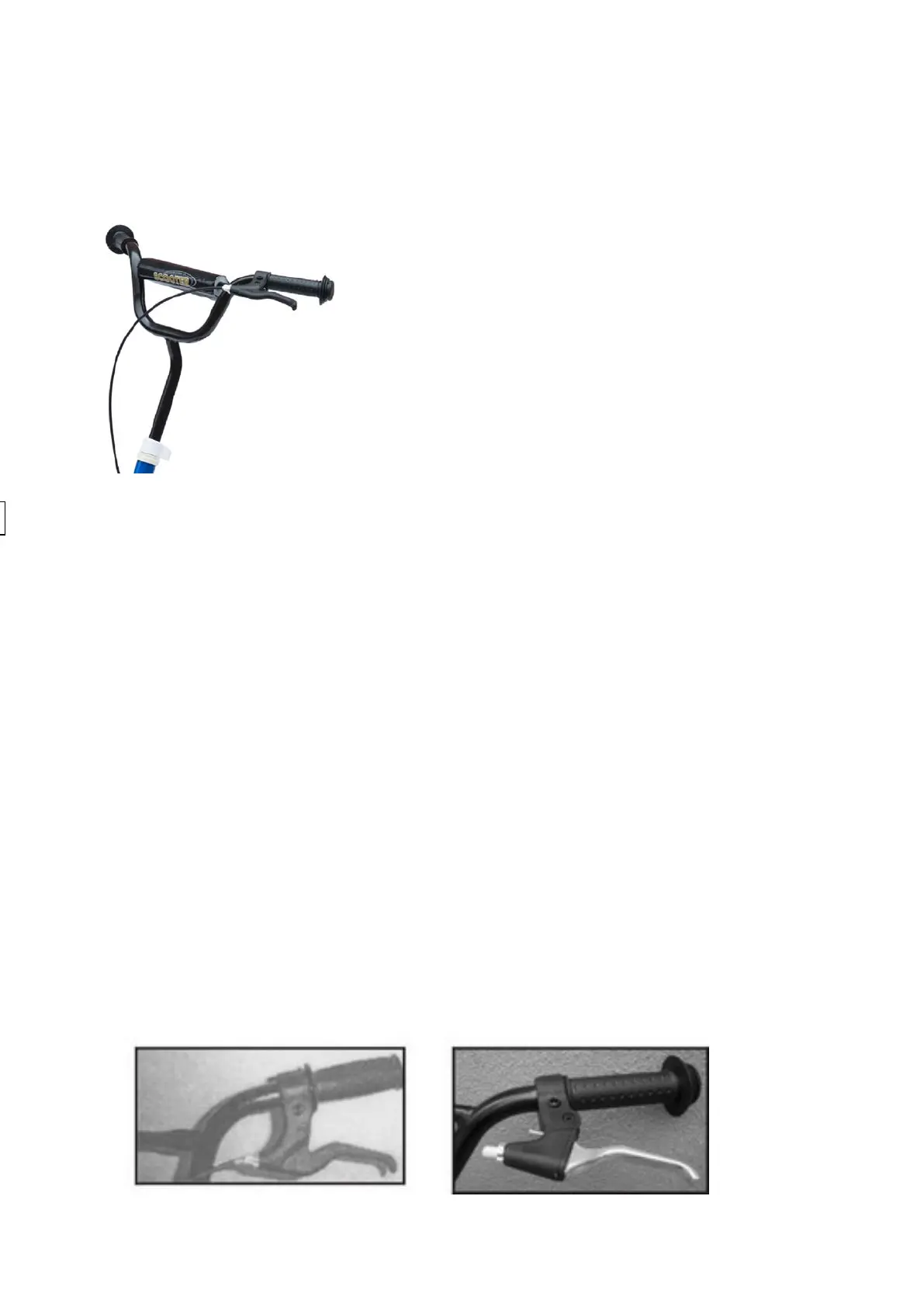

FIG 2
Step 3. Assemble And Adjust Hand Brakes
Warning: Please note the brakes would need to be assembled and adjusted before you ride
your scooter.
Install brake levers onto handlebars. Please note the brake lever on the right hand side
connects to the front brake system. And the brake lever on the left hand side connects to the
rear brake system.
1. Insert the barrel end of the brake arms with your hand until the brake rubbers are up against
the wheel rim. This will enable the inner brake cable wire to be loose. And have enough space
for you to easily slip the barrel end of the brake cable wire into the bole in the brake lever.
2. Next, pull the brake cable wire through the key hole slot in the front of the brake lever and
then remove your hand. The brake cable cap will automatically spring back into the slotted key
hole on the front of the brake lever assemble.
3. Next, proceed to adjust the hand brakes
1) Loosen the anchor bolt nut
2) Again squeeze the brake rubbers against the wheel rim.
3) Pull the brake cable wire through the anchor bolt hole. Until there is no slack in the
inner brake wire.
4) Tighten the anchor bolt nut
5) Squeeze the brake lever bard and then release several times. Rotate the wheel, be
sure the wheel does not wobble. There should be about 1/6 inch (1.6mm) clearance.
Between the wheel rim and each brake rubber.
