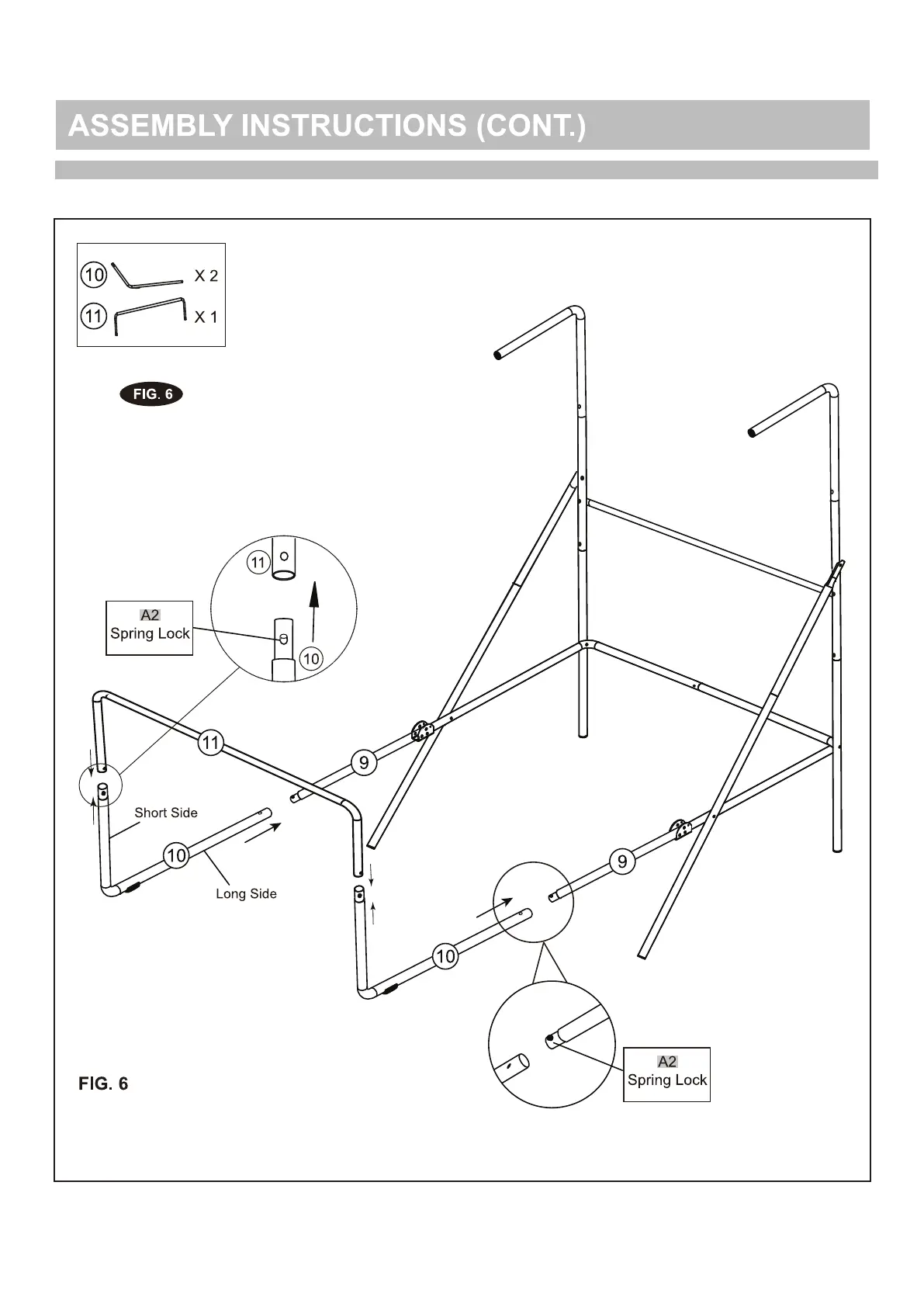

10. Connect tubes 9 and 10 using the spring locks. Then con-
nect tubes 10 and 11 using the spring locks as shown in FIG. 6.
-50-
