ASSEMBLY INSTRUCTIONS

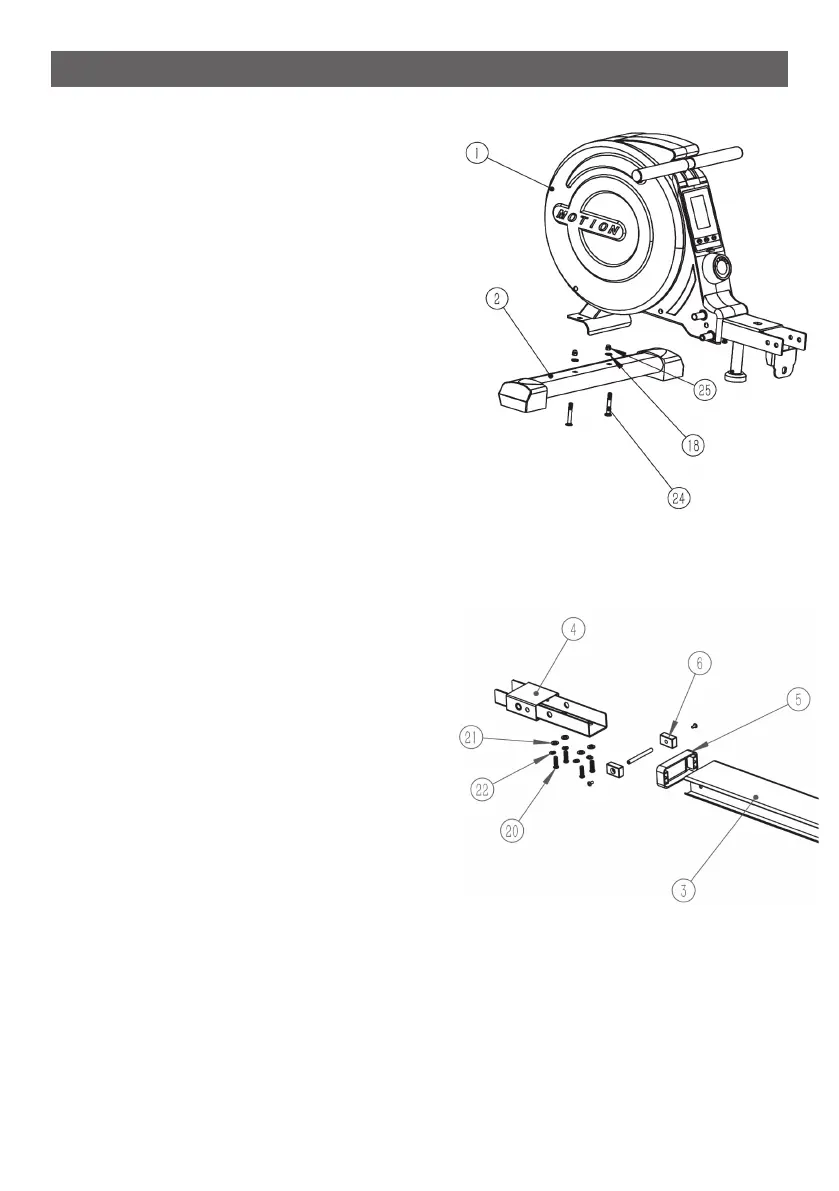

Step 1: Assemble the front foot pipe
Attach the front foot stabliliser bar (Na.2) to
the frame (No.1). Attention: the wheels of
the front bar should be facing outward.
Screw two M8*55mm carriage bolt(No.24).
two M10 flat washers (No.18), two M8 acorn
nut (No.25) using the big Allen wrench
(No.32) to tighten.
Step 2: Assemble the front of the rail
Please the rail (No.3), frame connection
(No.4), front rail cover (No.5), a lock bolt set
(No.6), four M8*16mm Allen bolts (No.20),-
four flat washers (No.21), four M8 split
washers (No.22), and the two Allen wrench-
es (No.32).
Cover the front rail cover to the front of the
rail. lnsert the frame connection into the rail.
Disassemble one side of the lock bolt set
and insert into the horizontal hole of the rail
and screw the rubber pad and the lock bolt
back. Rotate the rubber pads upright to fix.
Screw four M8*16mm Allen bolts, four flat
washers, and four split washers under the
rail (asillustrated in the diagram opposite).
