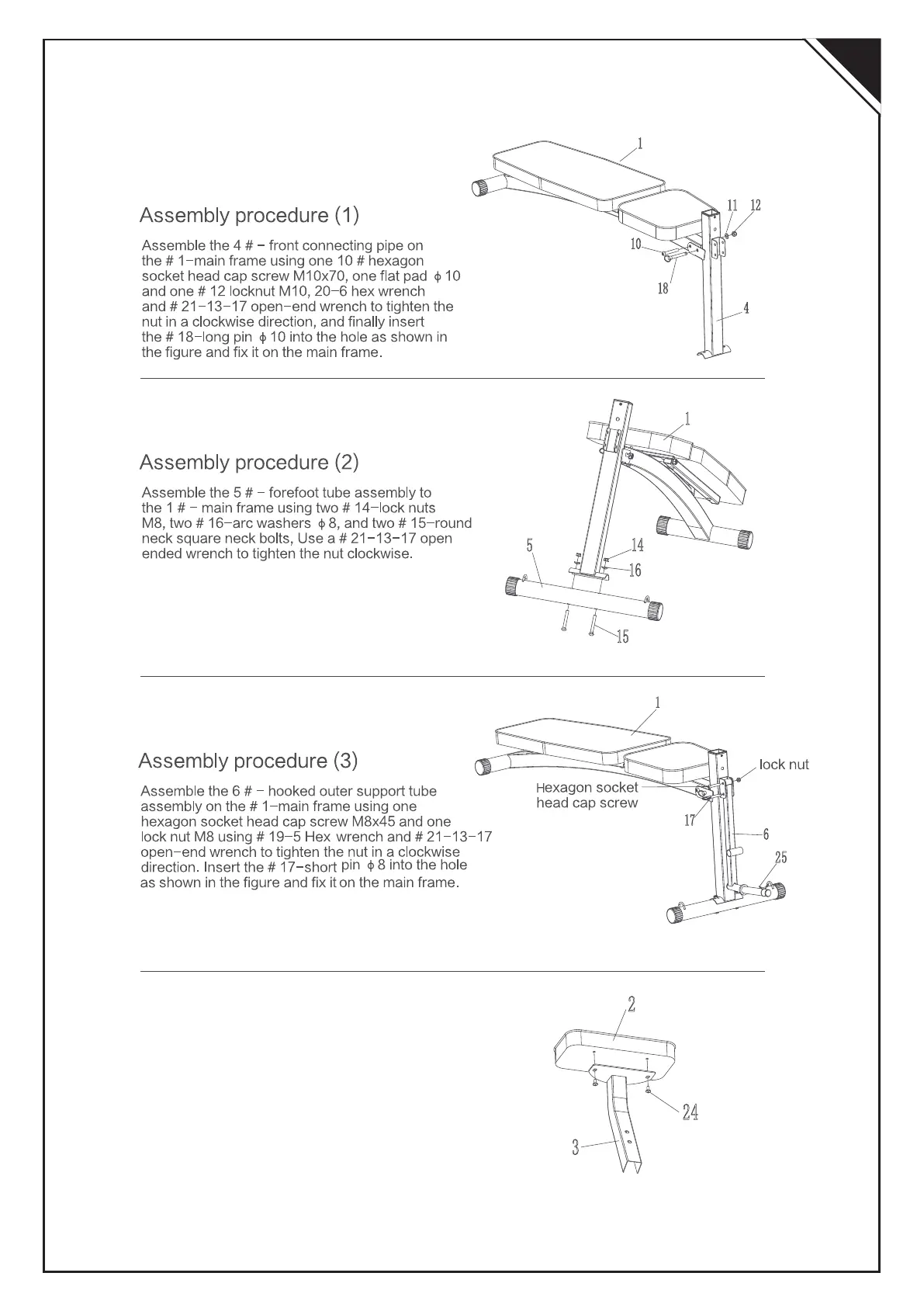

Assembly procedure (4)
Use #19-5 Allen wrench cross to tight the # 24
Phillips pan head screw M6x12 and place the
# 2-bracket board over the # 3 bracket
connector tube assembly and tighten .
