~ 7 ~

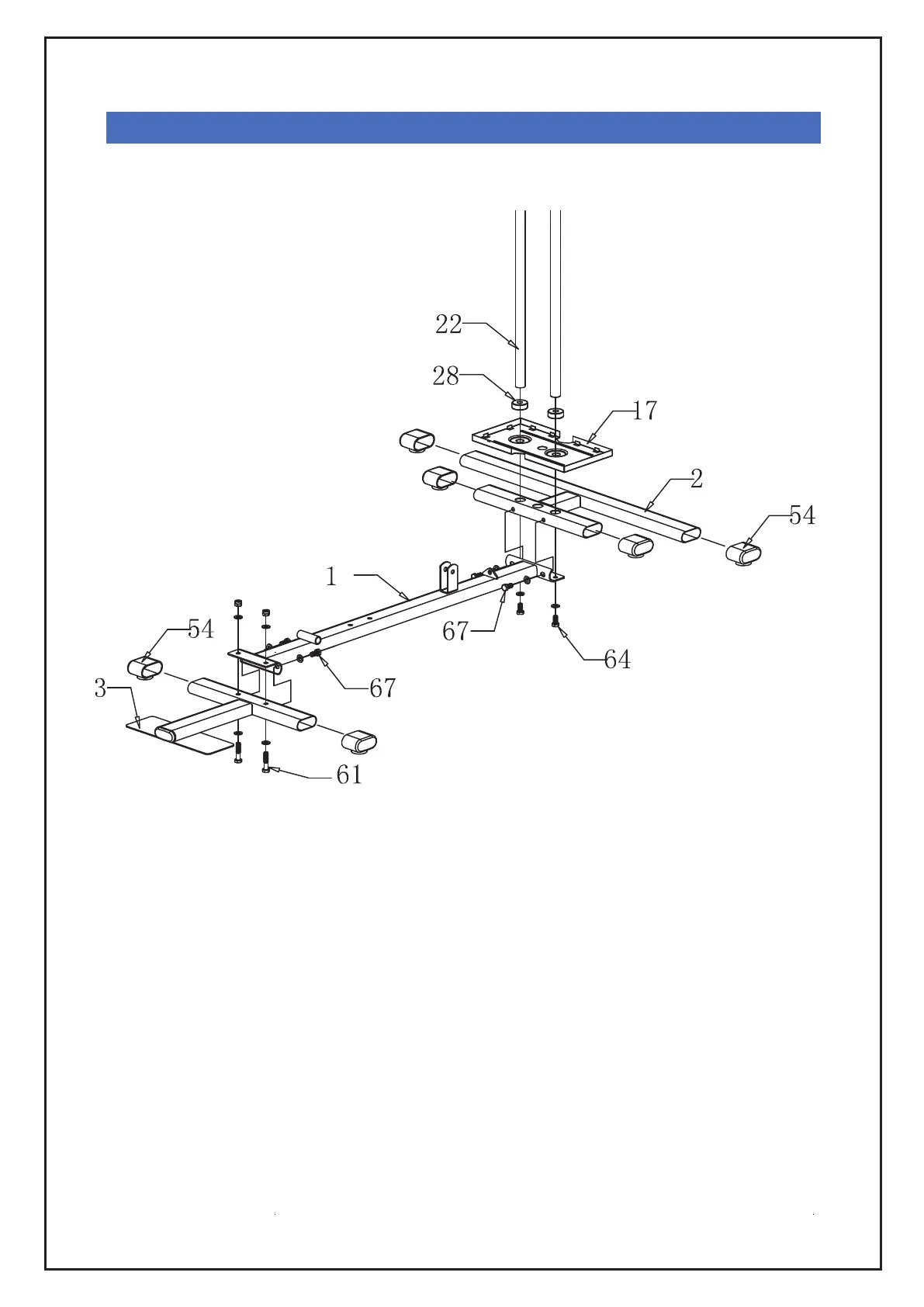

Step 1
1. Attach main base tube(l) to back base tube(2),chrome bar(22)using Hex
bolts M10x25(64- 2sets), washers and Hex bolts M8x20 (67- 2sets),wash-
ers.
2. Attach main base tube(l) to front base tube(3)using Hex bolts
M10x45(61-2sets), washers, nuts, and Hex bolts M8x20(67-2sets), wash-
ers.
INSTALLATION
