This document describes the Homebase 32" Tower Fan, model LG32-06A, article number 647419. It is an instruction manual providing safety warnings, technical specifications, assembly instructions, operation guidelines, cleaning, storage, and plug replacement information.

Function Description:

The Homebase 32" Tower Fan is designed to provide cooling airflow for domestic use. It features a tower design with a grille for air output and a base for stability. The fan offers multiple speed settings, oscillation functionality, and a timer for controlled operation. It is intended for indoor use only and should not be used outdoors or in wet/damp locations.

Important Technical Specifications:

Model: LG32-06A
Article No.: 647419
Wattage: 50W
Weight: 2.2kg
Voltage: 220-240V~
Frequency: 50Hz
Maximum fan flow rate (F): 10.34 m³/min
Fan power input (P): 39.5 W
Service value (SV): 0.26 (m³/min)/W
Standby power consumption (PSB): -- W
Fan sound power level (LWA): 58.39 dB(A)
Maximum air velocity (C): 6.03 metres/sec
Measurement standard for service value: IEC 60879:1986(corr.1992)

The appliance is a Class II appliance, meaning it has double insulation and does not require an earth connection. It conforms to relevant directives of the European Community (CE marking) and complies with applicable UK directives (UKCA marking).

Usage Features:

The fan is operated via a control panel located on the top of the unit, which includes a timer knob and a speed/oscillation knob.

Speed Settings: The fan offers three speed options: Low (1), Medium (2), and High (3). These are selected by rotating the speed knob.
Oscillation Function: To activate oscillation, the dial should be turned anti-clockwise. There are three oscillation modes, corresponding to the speed settings: Low (1), Medium (2), and High (3).
Timer Function: The fan includes a timer that can be preset for operation. Users can select a desired length of time between 0 and 120 minutes by rotating the timer dial.
Stopping the Fan: To turn off the fan, the dial should be set to '0'.

Assembly:

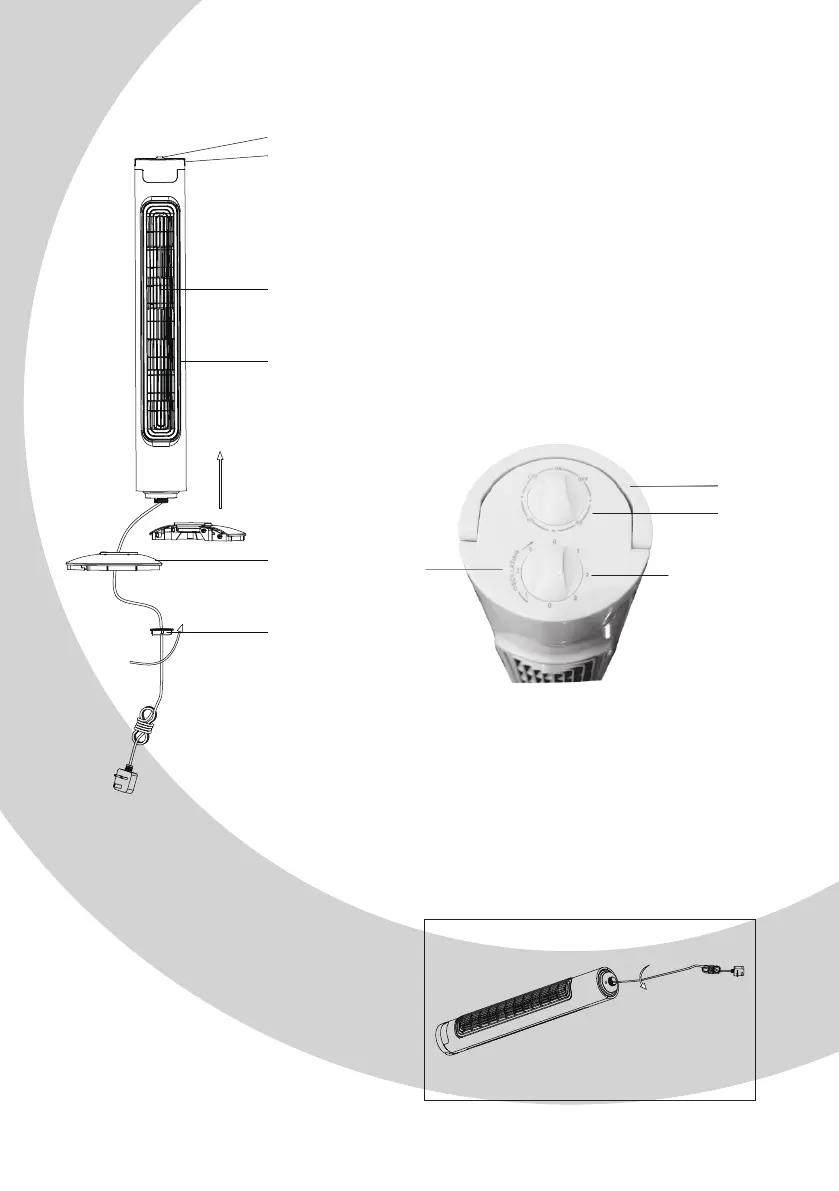

Assembly of the fan involves attaching the base to the main body.

Detach the adjusting plastic screw from the main body.
Align the holes and attach the base (5) to the main body (4).
Secure the main body and base by rotating the adjusting plastic screw (9) clockwise.
Insert the power cord into the hole on the base and plug it into a standard domestic power supply.

Safety Warnings:

The appliance can be used by children aged 8 and above, and persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, if supervised and instructed on safe use and understanding of hazards.
Children should not play with the appliance or undertake cleaning/maintenance without supervision.
Always switch off and unplug the fan when not in use.
Do not operate with a damaged power cord or plug, if it malfunctions, or if it has been dropped or damaged.
Do not use outdoors or in wet/damp locations like bathrooms.
Do not use for purposes other than its intended household use.
Do not misuse the power cord; never carry the appliance by the cord or pull it to disconnect from the socket.
Do not attempt to repair, disassemble, or modify the appliance; there are no user-serviceable parts.
Arrange the power cord away from traffic areas to prevent tripping hazards.
Do not insert foreign objects into the grille openings.
Ensure the fan is switched off from the mains supply before removing the guard.
Do not insert fingers into the guard opening.
Never use the fan without the guard, or if the fan blade is damaged or cracked.
Keep hair, tissue, tablecloths, clothes, or curtains away from fan openings to prevent them from being sucked in.
Keep the fan away from pets.
Verify the voltage on the rating plate matches the 220V-240V~50Hz electric supply.
If the power cord is damaged, it must be replaced by the manufacturer, service agent, or similarly qualified persons.
Place the fan on a flat, firm, steady surface.
Do not use near a window or in direct sunlight.
Do not attempt to disassemble the fan; contact your local store for maintenance.

Maintenance Features:

Cleaning:
- Always unplug the fan before cleaning.
- Use a soft, damp cloth with mild soap to clean the fan.
- DO NOT use abrasive cleaners.
- DO NOT immerse the fan in water or allow water to drop into the motor component.
- DO NOT use petrol, thinner, or other chemicals to clean the fan.
Storage:
- Store the device and accessories in a dry, well-ventilated place.
- For longer periods of non-operation, protect the device and its accessories against soiling and corrosion.
Plug Replacement:
- If replacing the fitted plug, follow specific instructions for wiring: Blue wire to Neutral (N) or black terminal, Brown wire to Live (L) or red terminal.
- WARNING: Never connect live or neutral wires to the earth terminal.
- Only fit an approved BS 1363 or BS 1363/A plug and a correctly rated BS 1362 3 Amp fuse. Consult a qualified electrician if in doubt.
- If a moulded plug is removed, dispose of it carefully to prevent accidental plugging into a power socket.

Warranty:

The product is covered by a 2-year warranty, covering manufacturing defects in materials, workmanship, and finish. Claims must be made within 2 years of purchase at a Homebase store with proof of purchase. The warranty offers free repair, replacement, or refund, without affecting statutory rights under the Consumer Rights Act 2015. This warranty is provided by HHGL Limited, MK9 1BA; HHGL (ROI) Limited, D02 X576. The warranty does not apply to misused, neglected products, or commercial use.
