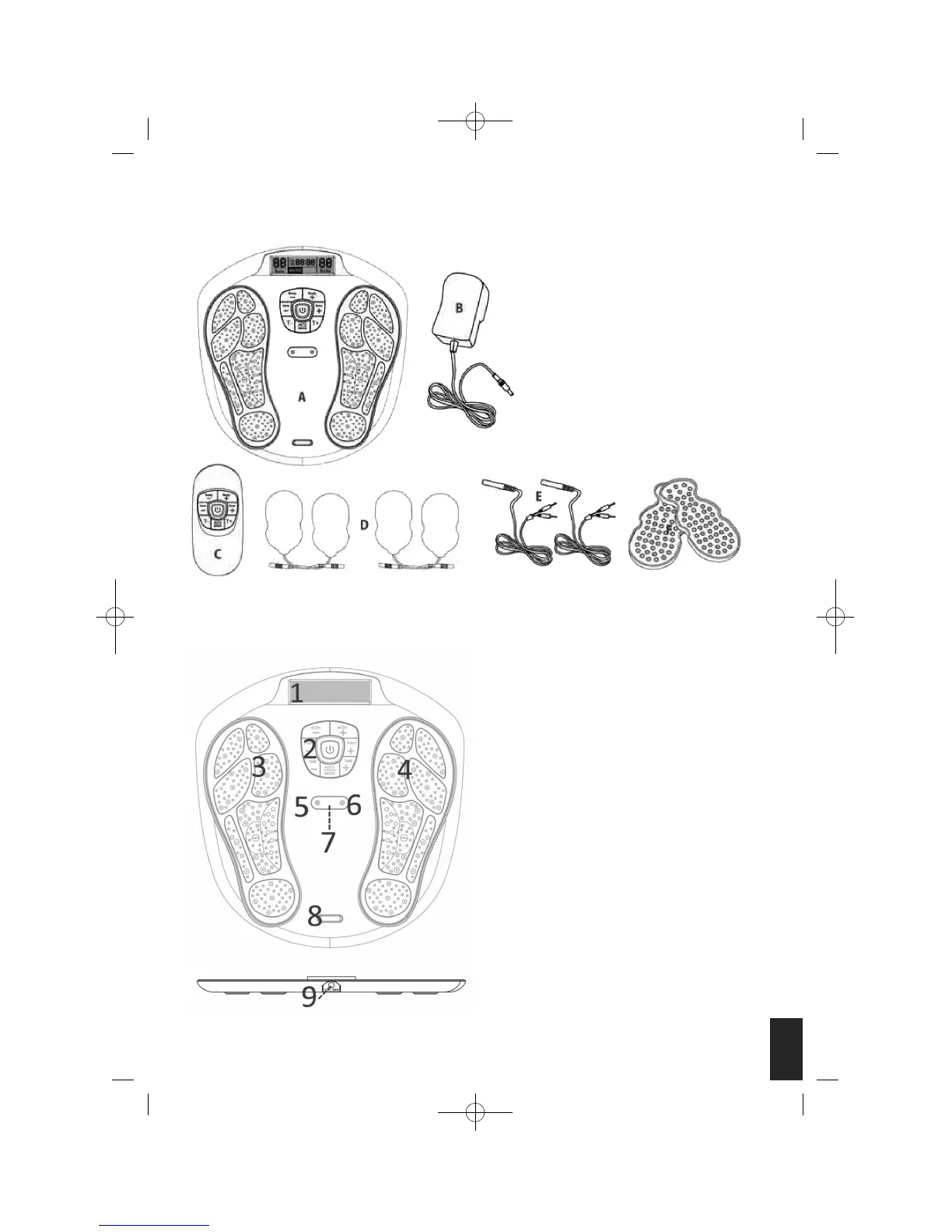

MACHINE OVERVIEW AND PART NAMES
A. Main Unit
B. AC Power Adapter
C. Remote Control
D. Electrode Gel Pad x 4 pcs.
E. Wire cable connecting the
Electrode Gel pads and device
F. Plastic Protector for Gel Pads
1. LCD Display Screen
2. Control Panel
3. Output for the feet – Electrode Area for Left Foot
4. Output for the feet – Electrode Area for Right
Foot
5. Cable Connecting the Electrode Gel Pads and
Device.
6. Cable Connecting the Electrode Gel Pads and
Device.
7. Remote Control Receiver Sensor
8. Silver colour decoration plate
9. Adaptor Jack
Top View
Side View
To Next Page
