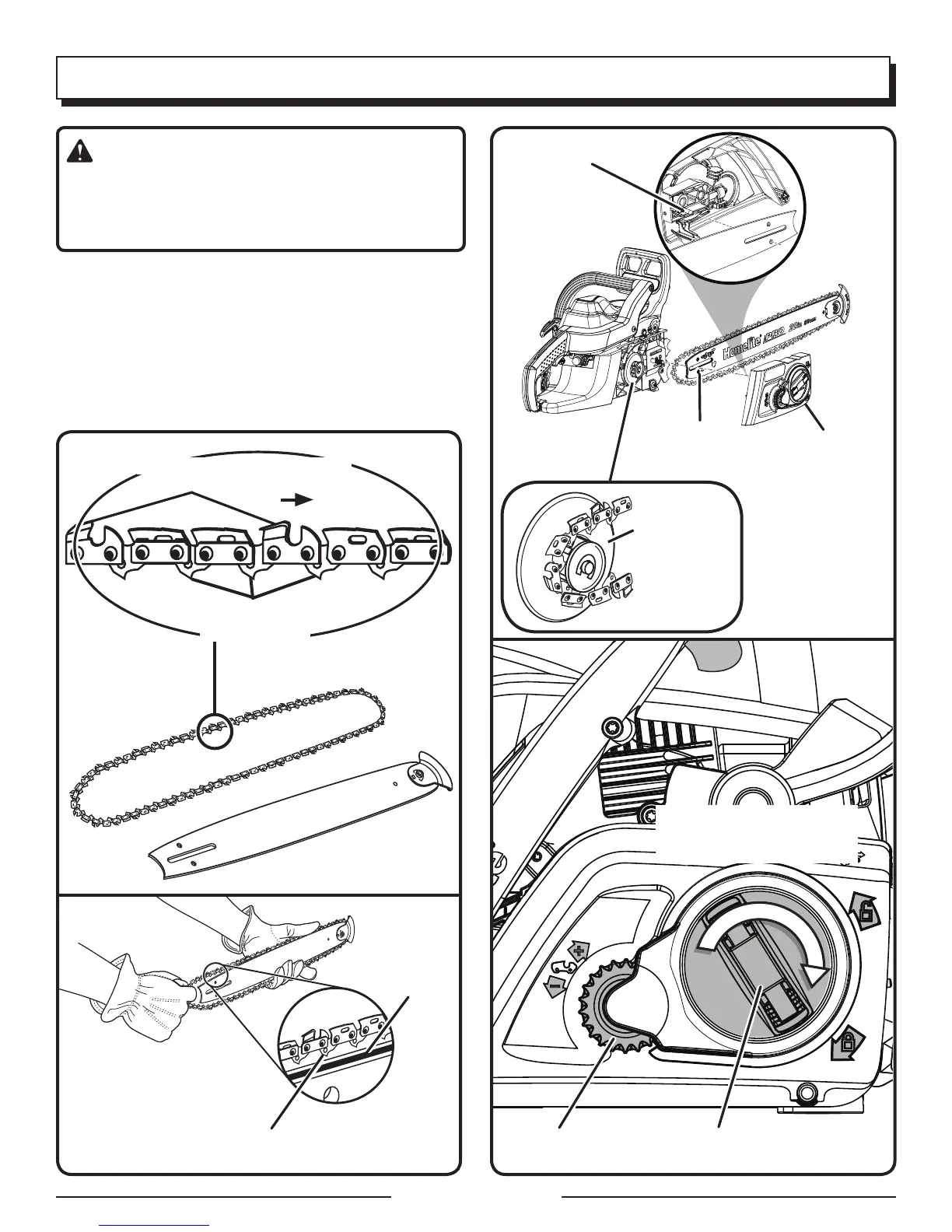

Página 26 — Español
RANURA DE
LA BARRA
ESLABONES DE IMPULSIÓN
DE LA CADENA
Fig.38
MANTENIMIENTO
Fig.37
ADVERTENCIA:
Para evitar lesiones corporales serias, lea
y comprenda todas las instrucciones de
seguridad indicadas en esta sección.
Siemprecoloqueelinterruptorenlaposición
de APAGADO O antes de realizar cualquier
tarea en la sierra.
Asegúrese de que el freno de la cadena no
esté puesto; para ello, tire de la palanca del
mismo (protección de la mano) hacia el mango
delantero, a la posición de funcionamiento.
DIENTES DE
CORTE
TAPA DEL
EMBRAGUE
RUEDA
DENTADA
Fig.40
Fig.39
PASADOR
DE AJUSTE
GIRE DERECHA LA PERILLA
DE AJUSTE DE LA CUBIERTA
PARA ASEGURARLA
AVANCE DE LA
CADENA
ESLABONES DE IMPULSIÓN
DE LA CADENA
DIAL DE TENSADO
DE LA CADENA
PERILLA DE AJUSTE DE LA
CUBIERTA DEL EMBRAGUE
ORIFICIO DEL
PASADOR DE TENSADO
DE LA CADENA
