Page 25 — English
WARNING:
When servicing, use only identical Homelite
replacement parts. Use of any other parts may
create a hazard or cause product damage.
WARNING:
Always wear eye protection with side shields
marked to comply with ANSI Z87.1, along with
hearing and head protection. Failure to do so
could result in objects being thrown into your
eyes and other possible serious injuries.
GENERAL MAINTENANCE
Avoid using solvents when cleaning plastic parts.
Most plastics are susceptible to damage from
various types of commercial solvents and may be
damaged by their use. Use clean cloths to remove
dirt, dust, lubricant, grease, etc.
WARNING:
Do not at any time let brake fluids, gas-
oline, petroleum-based products, pene-
trating oils, etc., come in contact with
plastic parts. Chemicals can damage, weaken or
destroy plastic which may result in serious
personal injury.
LUBRICATION
All of the bearings in this product are lubricated with
a sufficient amount of high grade lubricant for the
life of the unit under normal operating conditions.
Therefore, no further lubrication is required.

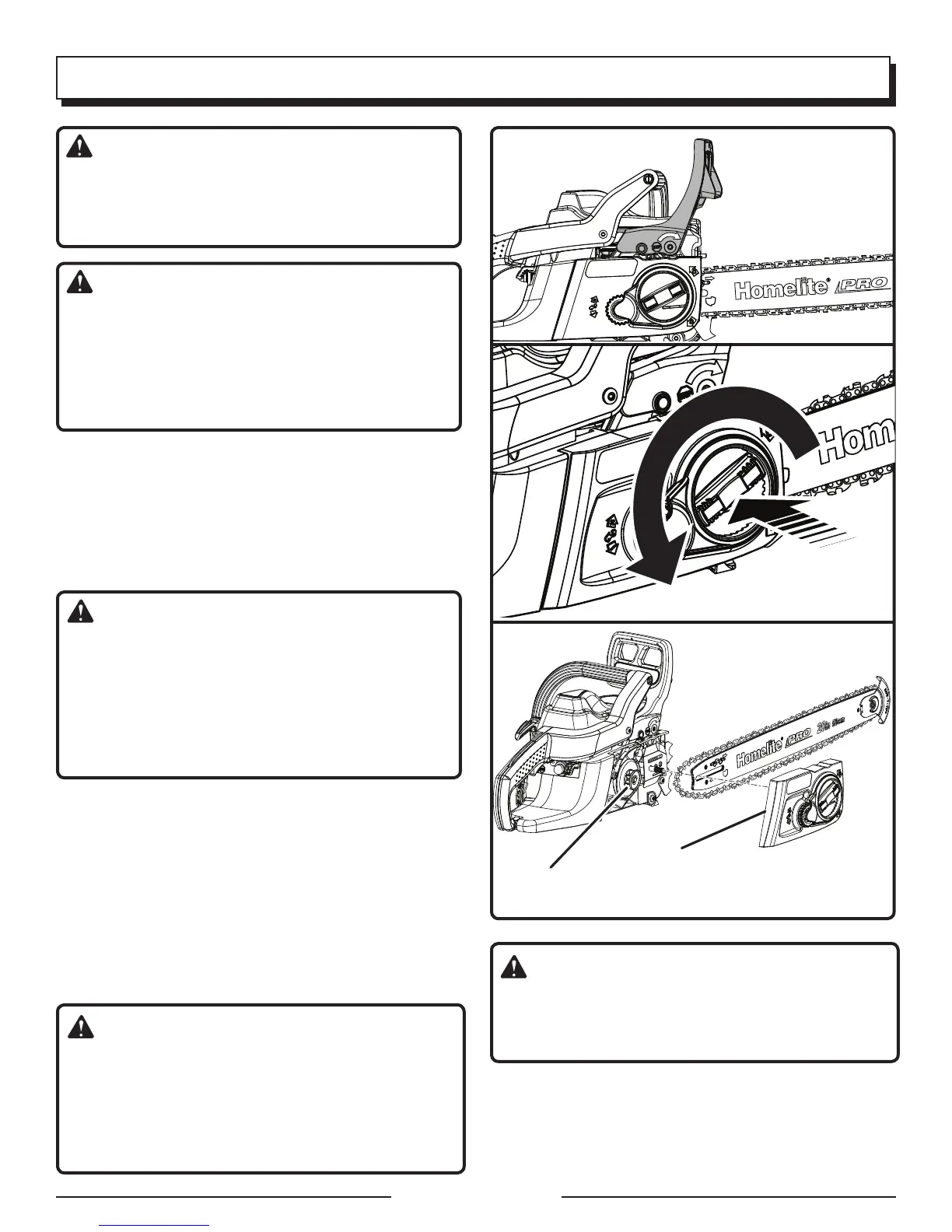

REPLACING THE GUIDE BAR AND
CHAIN
See Figures 34 - 43.
DANGER:
Never start the engine before installing the
guide bar, chain, clutch cover, and clutch drum.
Without all these parts in place, the clutch can
fly off or explode, exposing the user to possible
serious injury.
MAINTENANCE
Fig. 34
Fig. 35
Fig. 36
WARNING:
To avoid serious personal injury, read and
understand all the safety instructions in this
section.
Always place the switch in the STOP “ O ” posi-
tion before you work on the saw.
CLUTCH
COVER
RUN
POSITION
SPROCKET
