MAINTENANCE
ADJUSTING THE CHAIN TENSION
See Figures 44 - 46.
WARNING:
Never touch or adjust the chain while the engine
is running. The saw chain is very sharp. Always
wear protective gloves when performing main-
tenance on the chain.
Stop the engine before setting the chain ten-
sion.
Make sure the bar mounting nuts are loosened
to finger tight.
Turn the chain tensioning screw clockwise to
increase tension the chain.
NOTE: A cold chain is correctly tensioned when
there is no slack on the underside of the guide
bar, the chain is snug, and it can be turned by
hand without binding.
Retension the chain whenever the flats on the
drive links hang out of the bar groove.
NOTE: During normal saw operation, the tem-
perature of the chain increases. The drive links
of a correctly tensioned warm chain will hang
approximately 0.050 in. out of the bar groove.
The tip of the supplied combination wrench can
be used as a guide to help determine the correct
warm chain tension.
NOTE: New chains tend to stretch; check
the chain tension frequently and tension as
required.
CAUTION:
A chain tensioned while warm may be too tight
upon cooling. Check the “cold tension” before
next use to avoid possible injury.

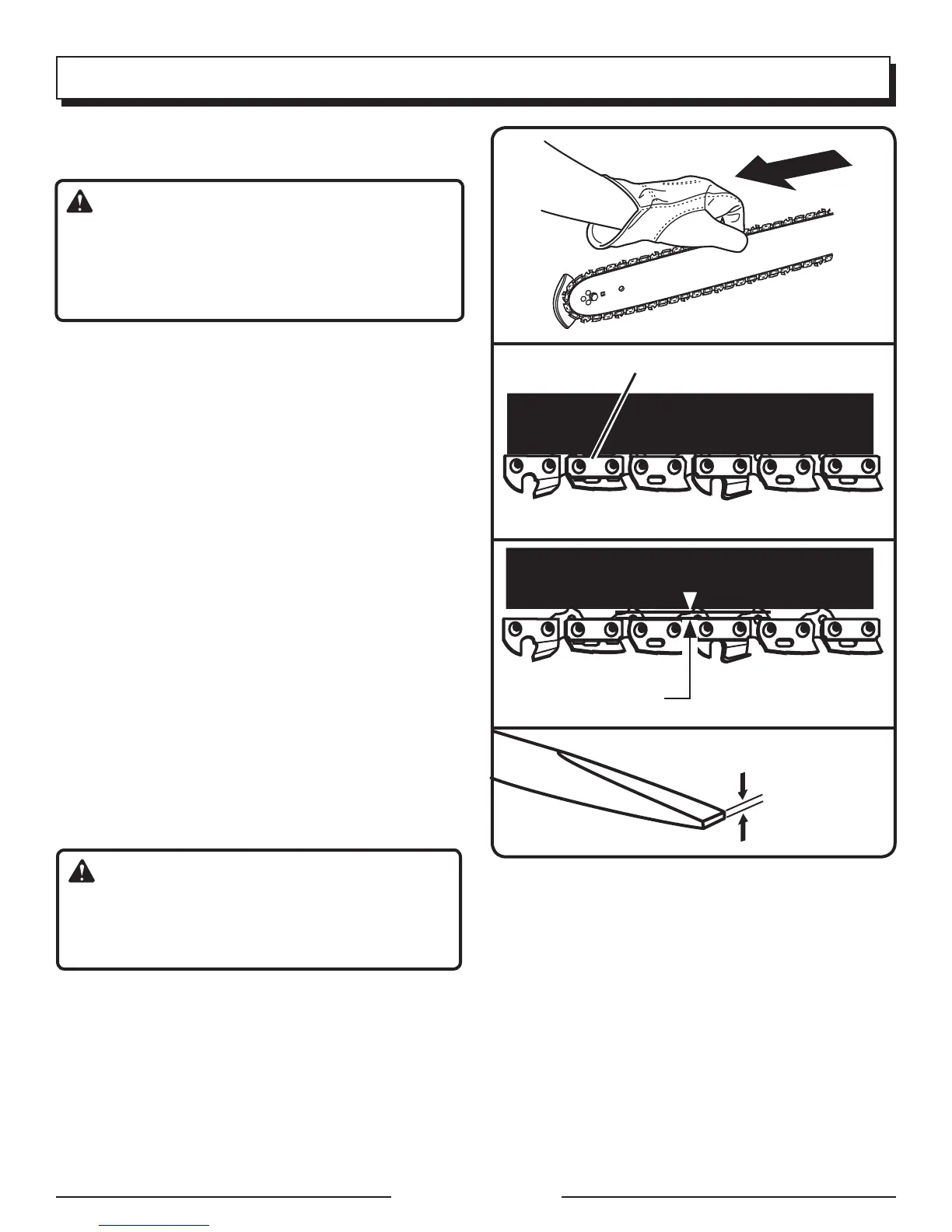

Fig. 44
