Homelite UT10548, UT10568, UT10588 User Manual

Page 9 — English
PRODUCT SPECIFICATIONS
FEATURES
Bar length:
UT10548 ................................................. 14 in.
UT10568 ................................................. 16 in.
UT10588 .................................................. 18 in.
Chain pitch ............................................ 0.375 in.
Chain gauge .......................................... 0.050 in.
Chain type ....................... Low Profile Skip Tooth
Drive sprocket ......................................... 6-tooth

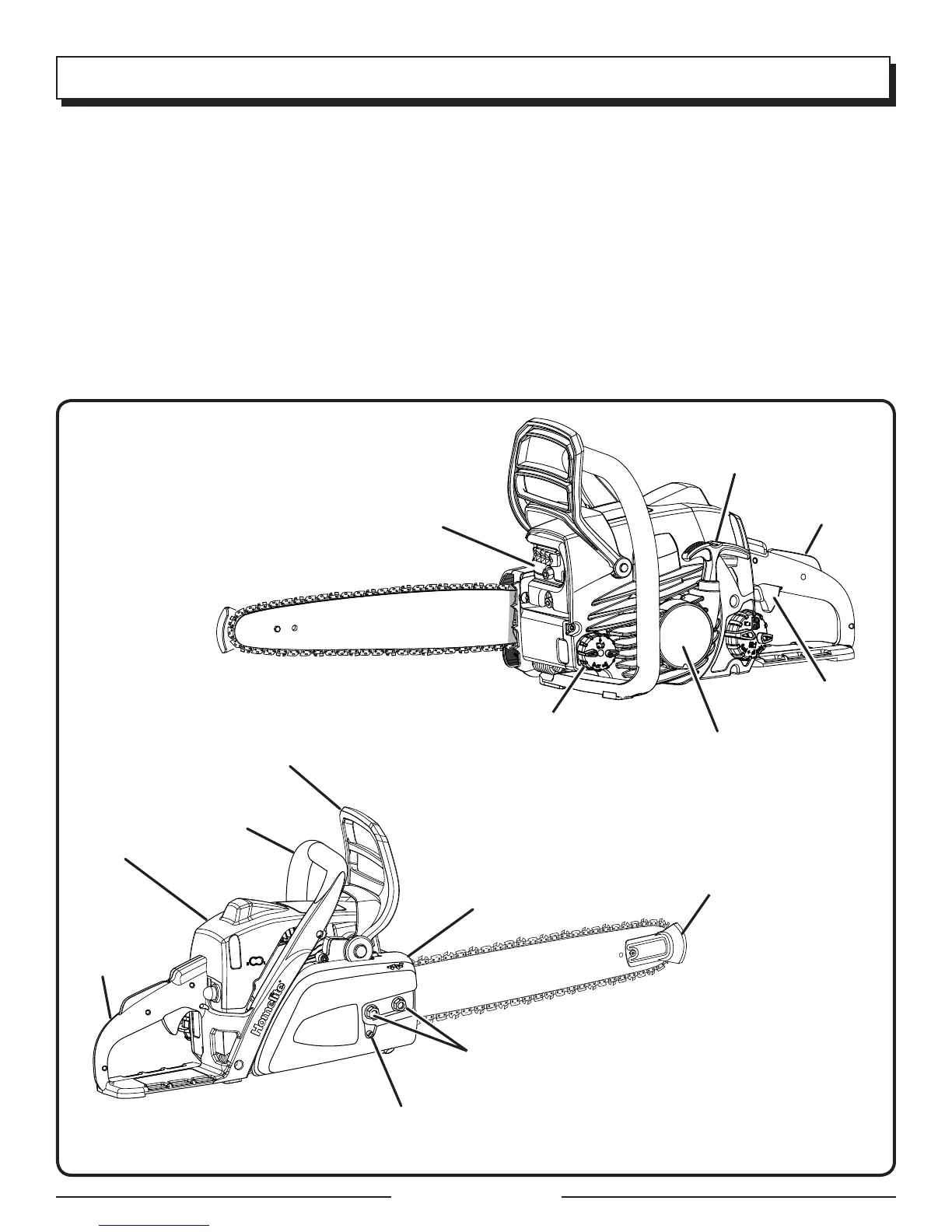

Fig. 1a
FRONT HAND GUARD/
CHAIN BRAKE
FRONT
HANDLE
CYLINDER
COVER
TRIGGER
RELEASE
REAR
HANDLE
THROTTLE
TRIGGER
CHAIN OIL
CAP
STARTER
HOUSING
STARTER GRIP
AND ROPE
SAFE-T-TIP
®
CLUTCH COVER
Engine displacement ................................... 42cc
Engine power ...................................... 2 HP min.
Idle engine speed ........2,600-3,400 r/min. (RPM)
Fuel tank capacity .................................. 11.5 oz.
Chain lubricant tank capacity ................... 6.5 oz.
Weight - No bar, chain, fuel or lubricant ... 9.8 lbs.
CHAIN TENSIONING
SCREW
BAR
MOUNTING
NUTS
MUFFLER

Homelite UT10548, UT10568, UT10588 Specifications

General

Brand	Homelite
Model	UT10548, UT10568, UT10588
Category	Chainsaw
Language	English
