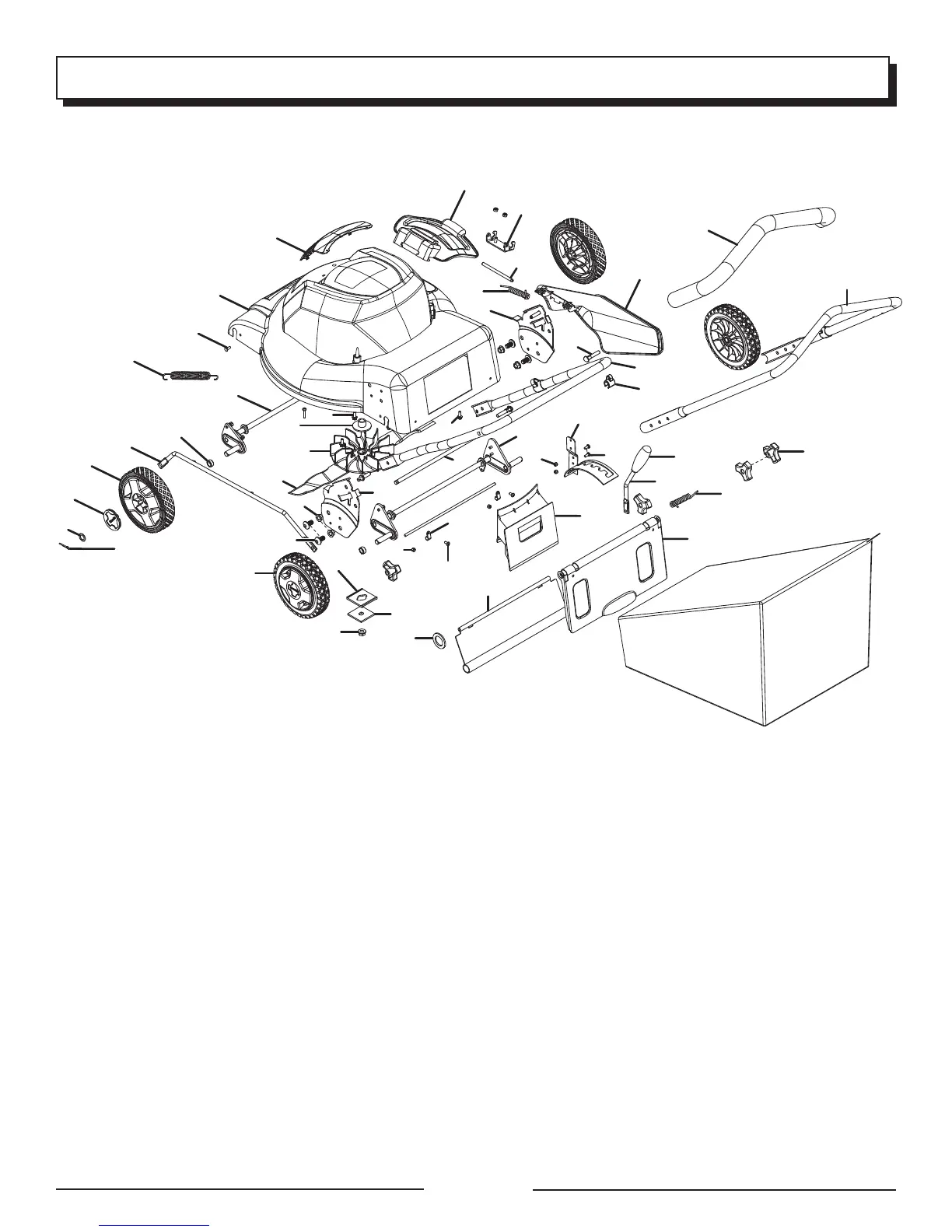

EXPLODED VIEW/PARTS LIST
MODEL UT13120
1 3130191 Mower Motor/Deck Assy. ..................1
2 3110139-1 Front Axle Assembly ..........................
1
3 3110239-1 Rear Axle Assembly ...........................
1
4 3220575 Screw (Pan Hd.) .................................
4
5 3420191 7 in. Wheel .........................................
2
6 3410391 Wheel Cover ......................................
4
7 3420291 8 in. Wheel .........................................
2
8 3331638 Washer (13.5 x 20 x 1.5t) ...................
4
9 3290135 Cotter Pin ...........................................
4
10 3330639-1 Link Bar ..............................................
1
11 3340137-1 Extension Spring ................................
1
12 3330239-1 Height Adjustment Assy., Left ...........
1
13 3330539-1 Height Adjustment Assy., Right .........
1
14 3221637 Bolt (M10 x 20 mm) ...........................
4
15 3220737 Flange Nut (M10) ...............................
4
16 3410239-1 Height Adjustment Handle .................
1
17 3320239-1 Height Adjustment Shaft ....................
1
18 3330437-1
Spring Board ......................................1
19 3220608
Cap Screw (M5 x 15 mm) ..................4
20 3220439 Lock Nut (M5) ..................................
10
21 3330438 Rear Discharge Door .........................
1
22 3320138 Rear Discharge Pin ............................
1
23 3220191 Ring Washer ......................................
2
24 3340138 Rear Compression Spring .................
1
25 3410238 Mulching Plug ....................................
1
26 3420138-1 Rear Shield ........................................
1
Key Part
No. No. Description Qty.
Key Part
No. No. Description Qty.
27 3330490 Wire Clip ............................................
2
28 3330637 Side Discharge Bracket .....................
1
29 3220136 Flange Nut (M6 x 8 mm) ....................
2
30 3320338 Side Discharge Pin ............................
1
31 3340237 Side Compression Spring .................
1
32 3410338 Side Discharge Door ..........................
1
33 3410438 Side Discharge Deflector ...................
1
34 3410490 Motor Vent .........................................
1
35 3220137 Flange Nut (M6 x 12 mm) ..................
3
36 3320238 Spindle Guard ....................................
1
37 3410237 Fan .....................................................
1
38 3410535 Blade Insulator ...................................
1
39 3331435 Spacer ...............................................
1
40 3331238-1 Blade ..................................................
1
41 3221037 Blade Nut (M10 x 1.25 mm) ...............
1
42 3330190 Upper Handle ....................................
1
43 3330191 Lower Handle .....................................
1
44 3490137 Soft Grip ............................................
1
45 3220436 Bolt (M8) ............................................
2
46 3220131 Screw (M4 x 20 mm pan hd.) .............
2
47 3330291 Grass Catcher Frame ........................
1
48 3410835-3 Knob ..................................................
4
49 3221237 Lock Nut (M4) ....................................
2
50 3490291 Grass Catcher ....................................
1
51 3411135 Cord Guide ........................................
3
52 3320237 “O” ring ..............................................
2
44
45
43
51
20
29
18
32
33
28
30
31
13
34
1
4
2
52
10
12
15
14
39
41
38
7
11
5
6
8
9
22
19
16
17
24
48
42
21
25
40
37
36
35
49
27
46
26
23
3
50
47
