1 3130139-2 Mower motor/deck assy ................... 1
2 3110139-1 Front axle assembly ......................... 1
3 3110239-1 Rear axle assembly .......................... 1
4 3220575 Screw (Pan Hd.) ............................... 4
5 3420191 7 in. front wheel .............................. 2
6 3410391 Wheel cover .................................... 4
7 3420291 8 in. rear wheel ............................... 2
8 3331638 Washer (13.5 X 20 x 1.5 in.) ............ 4
9 3290135 Cotter pin ........................................ 4
10 3330639-1 Linkbar ............................................ 1
11 3340137-1 Extension spring ............................ 1
12 3330239-1 Height adjustment assy., Left ........... 1
13 3330539-1 Height adjustment assy., Right ......... 1
14 3221637 Bolt (M10 x 20 mm) .......................... 4
15 3220737 Flange nut (M10) .............................. 4
16 3410239-1 Height adjustment handle ................ 1
17 3320239-1 Height adjustment shaft ................... 1
18 3330437-1 Spring board ................................... 1
19 3220608 Cap screw (M5 x 15 mm) ............... 4
20 3220439 Lock nut (M5) ................................ 10
21 3410390 Motor vent ...................................... 1
22 3330438 Rear discharge door ......................... 1
23 3320138 Rear discharge pin ........................... 1
24 3220191 Ring washer ..................................... 2
25 3340138
Rear compression spring ................. 1
26 3490137 Soft grip .......................................... 1
27 3410238 Mulching plug ................................. 1
28 3420138-1 Rear shield ....................................... 1
29 3330637 Side discharge bracket ................... 1
30 3220136 Flange nut (M6 x 8 mm) .................... 2
31 3320338 Side discharge pin ........................... 1
32 3340237 Side compression spring ................. 1
33 3410338 Side discharge door ......................... 1
34 3410438 Side discharge deflector ................... 1
35 3410237 Fan .................................................. 1
36 3410535 Blade insulator ................................. 1
37 3331435 Spacer ............................................. 1
38 3331238-1 Blade .............................................. 1
39 3320238 Spindle guard .................................. 1
40 3221037 Blade nut (M10 x 1.25 mm) ..............1
41 3330190 Upper handle .................................. 1
42 3330191 Lower handle .................................. 1
43 3220436 Bolt (M8) .......................................... 2
44 3410835-3 Knob ............................................... 4
45 3221237 Lock nut (M4) .................................. 2
46 3490291 Grass catcher ................................ 1
47 3330291 Grass catcher frame ....................... 1
48 3411135 Cord guide ....................................... 1
49 3320237
“O” ring ...........................................2
Key Part
No. No. Description Qty.
Key Part
No. No. Description Qty.

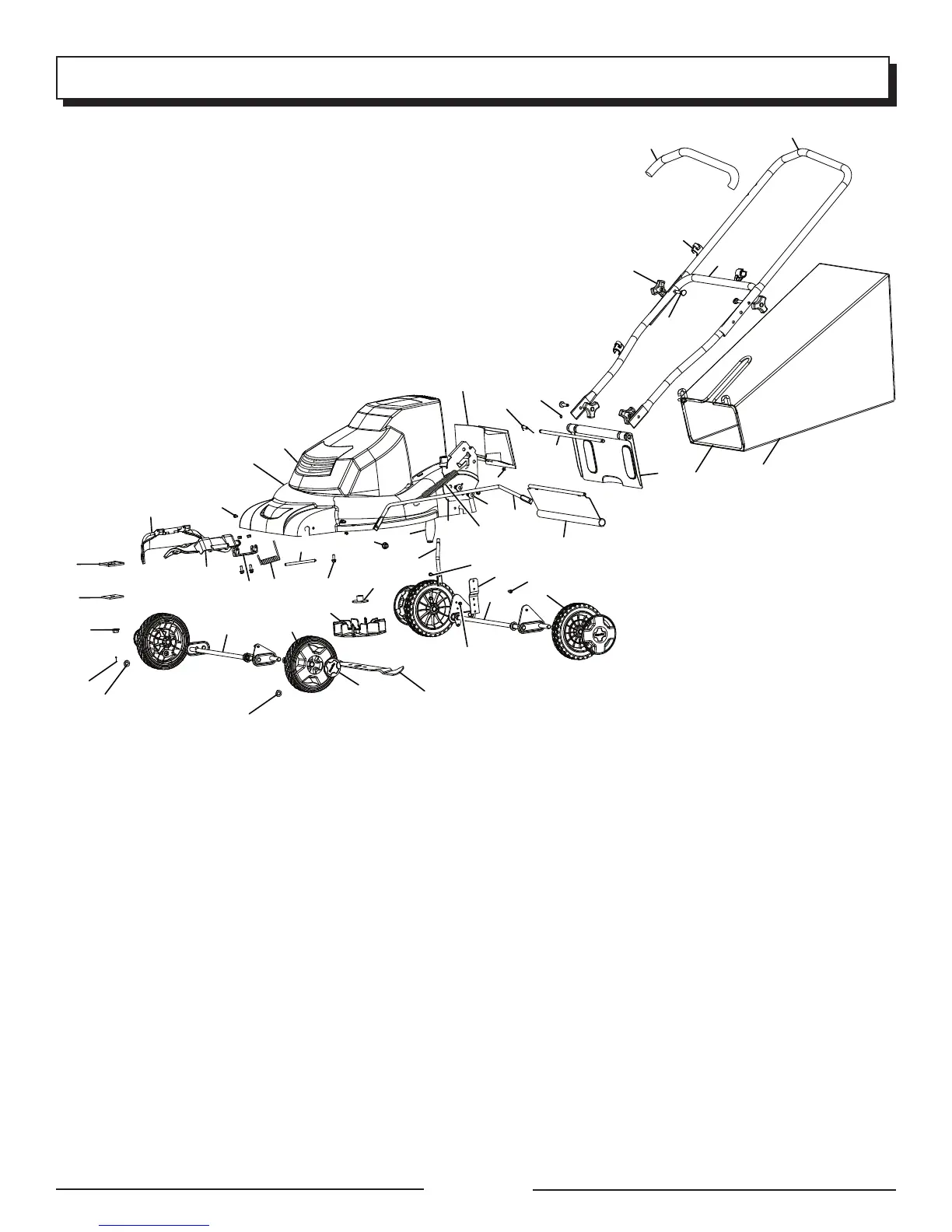

EXPLODED VIEW/PARTS LIST
21
44
48
41
26
42
43
47
45
28
11
12
16
17
30
6
35
36
37
38
40
8
2
39
5
31
15
18
13
7
3
10
14
23
22
46
27
25
24
12
1
4
34
33
29
32
9
20
19
49
